Operating instructions
Operation module FB 5210
28
nur für Fachpersonal
10Assembly and installation instructions
If the operation module is used to measure the room temperature (room temp-
erature compensation), the instructions in the two following chapters have to be
considered.
10.1Definition of the reference room
•No external heating sources like tiled stoves or stoves should be installed
in the reference room.
•Attention:
The temperature measured in this room has influence on the
control characteristic of the whole heating circuit.
10.2Definition of the installation site
•In the reference room on the inside wall to a normal heated adjacent
room. No other control devices, e.g. thermostatic valves
, should be a
active in this room.
•Approx. 150 cm distance from the floor.
•Air circulation has to be seccured
(not in niches or cupboards
etc.).
•Do not install beside a heating sourse or in direct solar radiation.

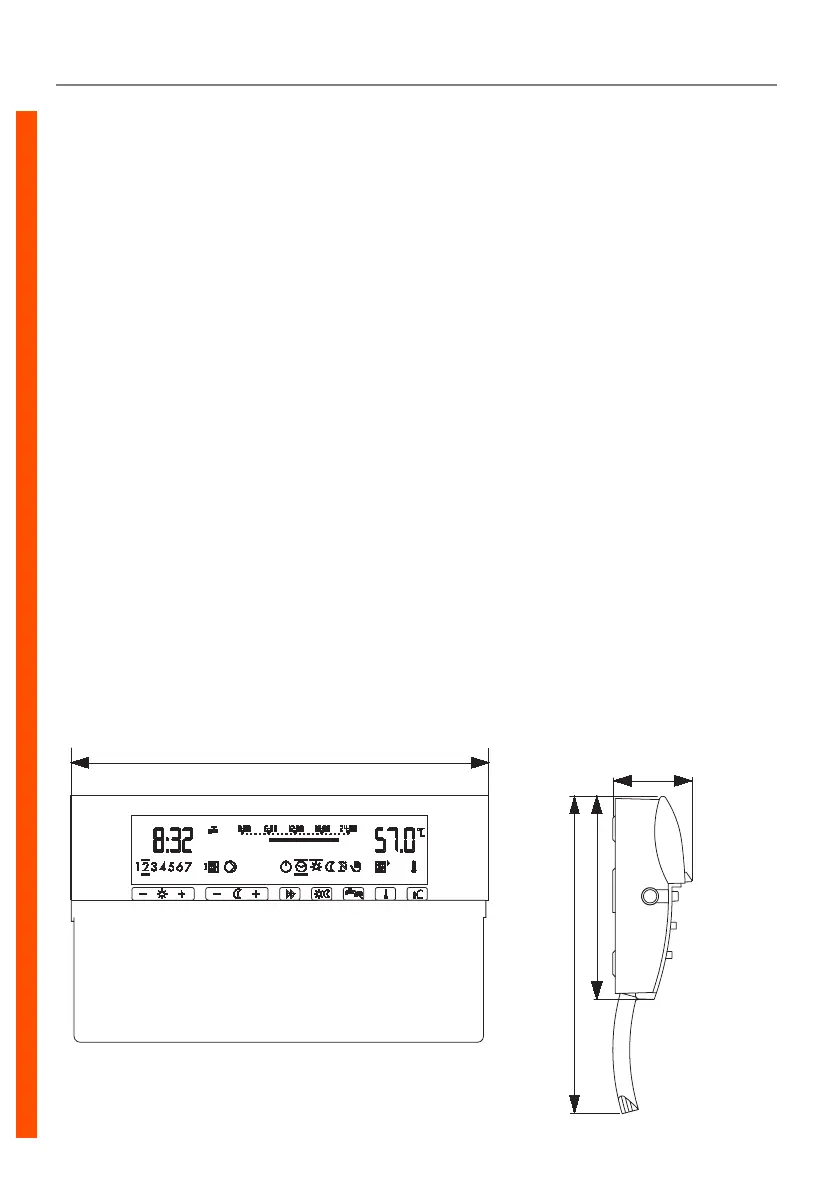

10.3Dimensions
33,2
132
85
144
