Operating instructions
Operation module FB 5210
29
For installation personnel only
10.4Fitting instructions

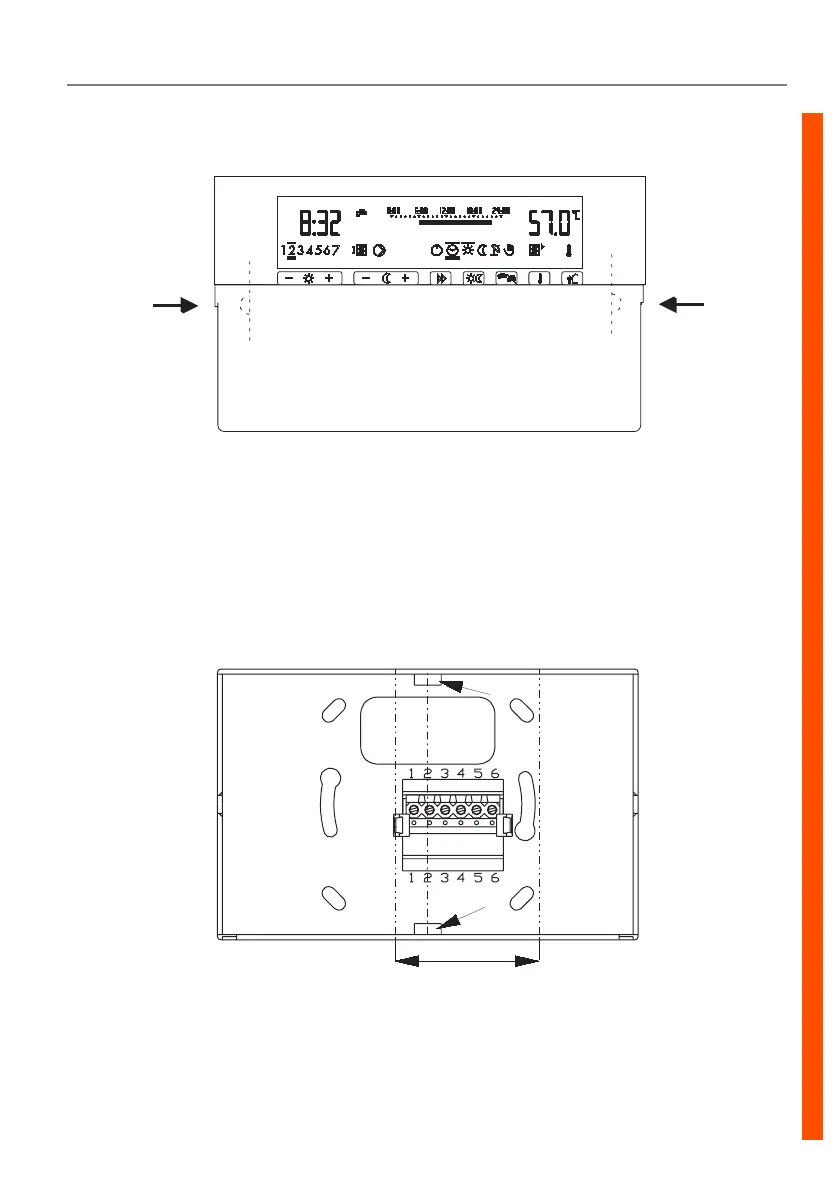

The ooperation module is furnished with a connection and assembly socket. In
order to remove the operation module, you have to press the to under the front-
plate hidden
cams with your fingers.
Consider during the arrangement,
that the backside opening for the cables lies
above the clamping block and the numbering in the casing
base is readable
normal (left 1, right 6).
The cords are to be led into the cable compartment through the aperture in the
ground or the break-away lead-in in the middle up or down. The base is
attached now with at least 2 screws.
