Windsor Commodore 20 User Manual

4
How To Use This Manual
This manual contains the following sections:
• How to Use This Manual
•Safety
• Operations
• Maintenance
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.

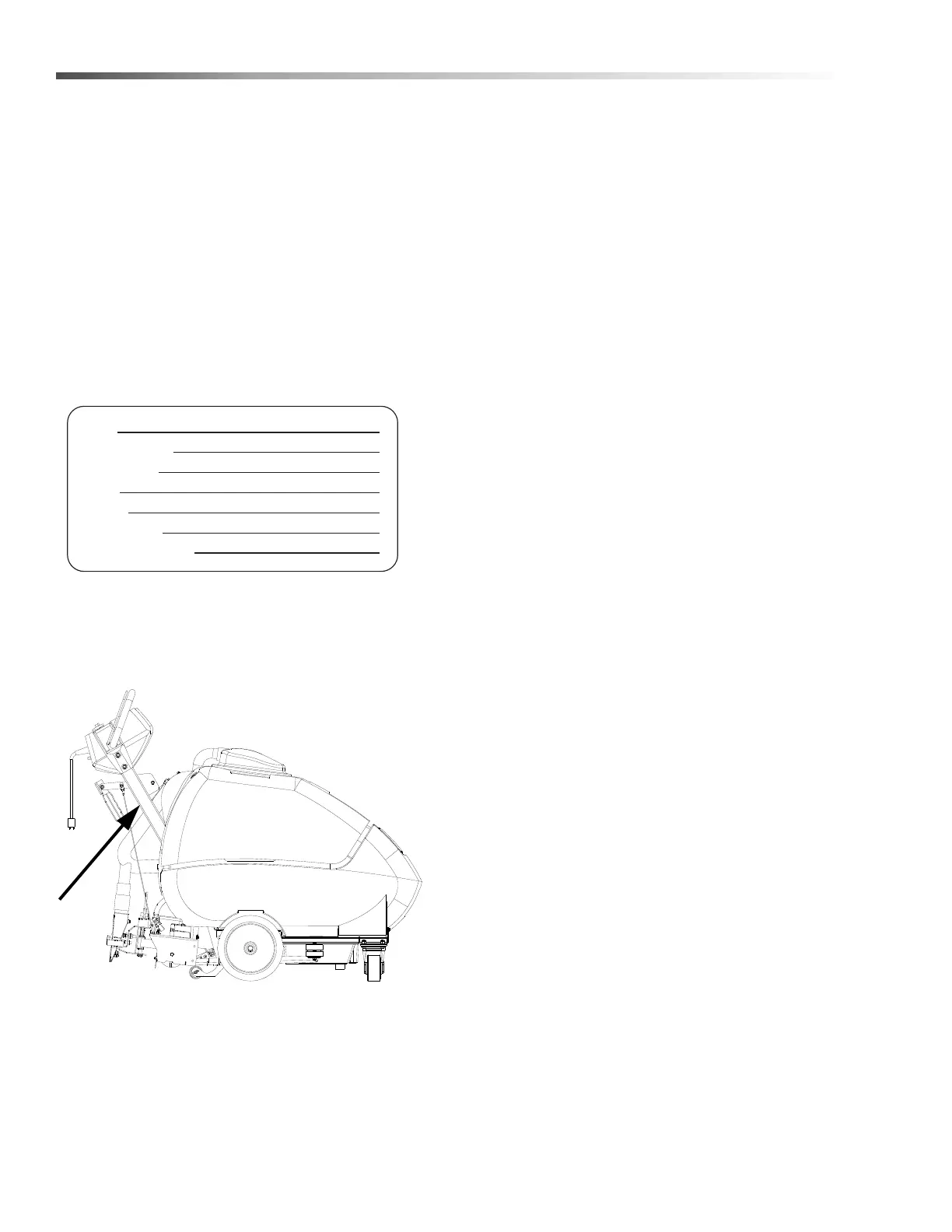

The model and serial number of your machine is on the
control panel support arm, located on the back of the
machine.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive main-
tenance to keep the machine and its components in
good working condition. They are listed in this general
order:
• Storage
• Maintenance
• Troubleshooting
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.
NOTE: The manual part number is located on the
lower right corner of the front cover.
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
86400940 Operators Manual - CMD20

Windsor Commodore 20 Specifications

General

Electrical	230V, 8 A, 50 HZ
Power Cable	75’ (23 m) (12 gauge)
Electric Propelling Motor	(1) –1/4 hp DC (186 watts) with variable speed forward.
Electric Vacuum Motor	(1) – 3 stage, 1 hp 99 cfm (2.80 m³/min.)
Drive System	Transaxle unti variable speed Operating Speed: 0-100ft/min (30m/min)
Waterlift	117” (297 cm)
Brush Speed	1000 RPM
Solution Capacity	20 Gallons (75 ltr)
Recovery Capacity	20 Gallons (75 ltr)
Brush	(1) 18” (45.8 cm)
Solution Pump	100 psi (6.9 BAR), diaphragm style, demand pump
Solution Spray	2 quick change jets
Vacuum Shoe	22” (56 cm) wide, cast urethane floating and pivoting.
Wheels - Front (2) - Rear (2)	4” dia. (10 cm) caster by 2.5” 10” dia (25 cm) wheels by 2”

Weight and Dimensions

Dimensions - Weight	215 lbs. (98 kg)
Dimensions - Length	51” (130 cm)
Dimensions - Height	44” (111 cm)
Dimensions - Width	22” (56 cm)
