Operations

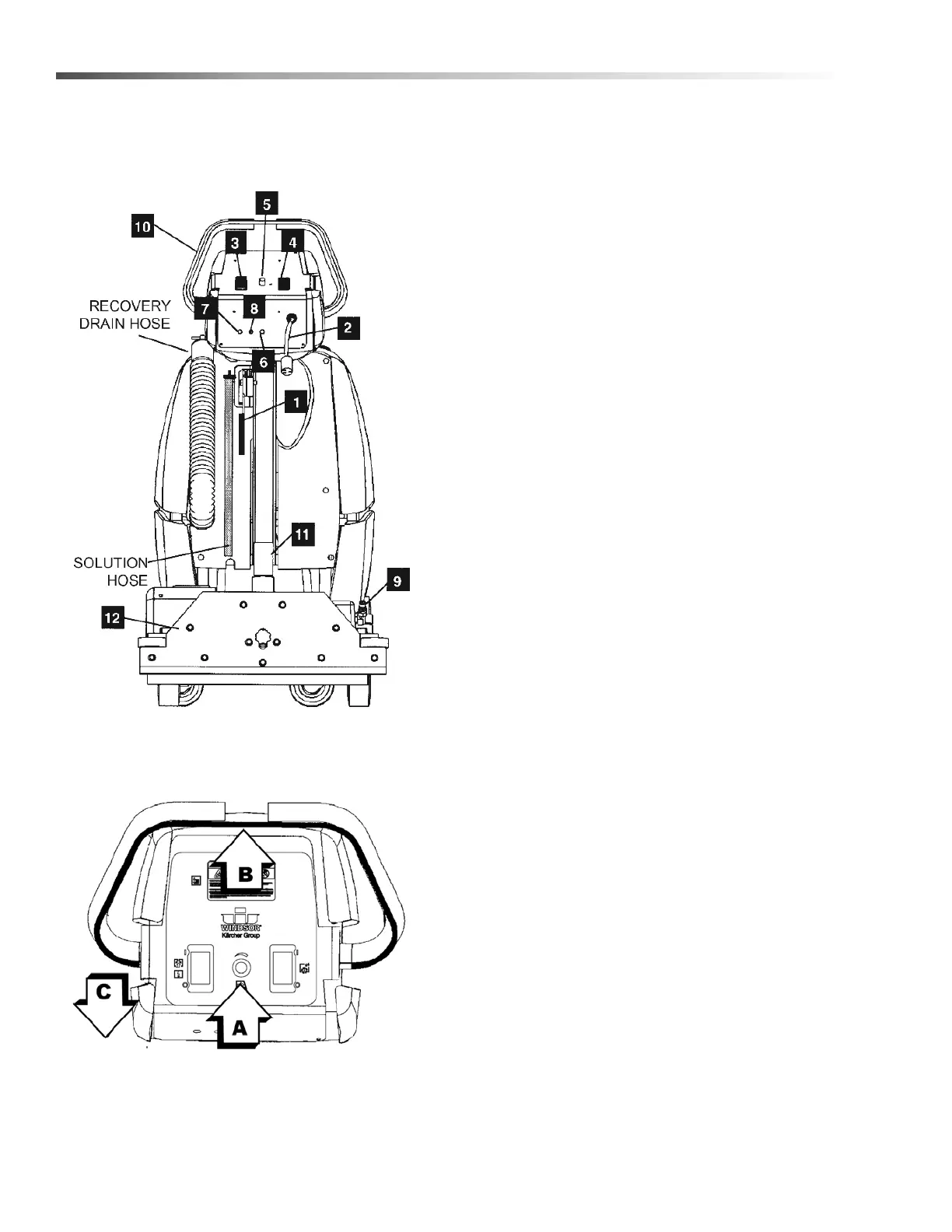

Controls

1. Brush/Vac Shoe Lift Lever - Raises and lowers

both brush and vac shoe.

2. Electrical Cord

3. Main Power Switch - Turns On and Off the vac

motor/pump and machine.

4. Brush/Solenoid Knob - Enables the brush motor

and solution spray (only when propelling).

5. Speed Control Knob - Adjusts the forward drive

speed of the machine. (See Below)

6. Drive Motor Circuit Breaker - 6 amp, protects the

drive motor mechanism.

7. Vac Motor Circuit Breaker - 11 amp, protect

vacuum motor.

8. Brush Motor Circuit Breaker - 8 amp, protect

brush motor.

9. Solution Accessory Tool Hook-Up - Used for

various auxiliary cleaning tools.

10. Main Handle

11. Vacuum Accessory Tool Hook-Up - To use

accessory tool, remove hose from vac shoe and

attach to accessory tool adaptor. 8.608-908.0

12. Vac Shoe Assembly

Drive Controls

A. The speed the machine will travel is regulated by

the knob located on the center of control panel.

Turn the knob to the right to increase the speed

of the machine and to the left to decrease the

speed of the machine.

B. Squeezing the control lever will propel the

machine forward at the selected speed. Machine

will also engage the brush and spray if #4 is acti-

vated.

C. To move the machine backwards release the

control lever and then pull back on main handle

NOTE: The machine drive assembly is disengaged.

Do not pull back on the control lever

86400940 Operators Manual - CMD20

Other manuals for Windsor Commodore 20

End User Guide2 pages

Questions and Answers:

Need help?

Do you have a question about the Windsor Commodore 20 and is the answer not in the manual?

Windsor Commodore 20 Specifications

General

Electrical	230V, 8 A, 50 HZ
Power Cable	75’ (23 m) (12 gauge)
Electric Propelling Motor	(1) –1/4 hp DC (186 watts) with variable speed forward.
Electric Vacuum Motor	(1) – 3 stage, 1 hp 99 cfm (2.80 m³/min.)
Drive System	Transaxle unti variable speed Operating Speed: 0-100ft/min (30m/min)
Waterlift	117” (297 cm)
Brush Speed	1000 RPM
Solution Capacity	20 Gallons (75 ltr)
Recovery Capacity	20 Gallons (75 ltr)
Brush	(1) 18” (45.8 cm)
Solution Pump	100 psi (6.9 BAR), diaphragm style, demand pump
Solution Spray	2 quick change jets
Vacuum Shoe	22” (56 cm) wide, cast urethane floating and pivoting.
Wheels - Front (2) - Rear (2)	4” dia. (10 cm) caster by 2.5” 10” dia (25 cm) wheels by 2”
