Windsor Commodore 20 User Manual

8
Safety
Safety Labels

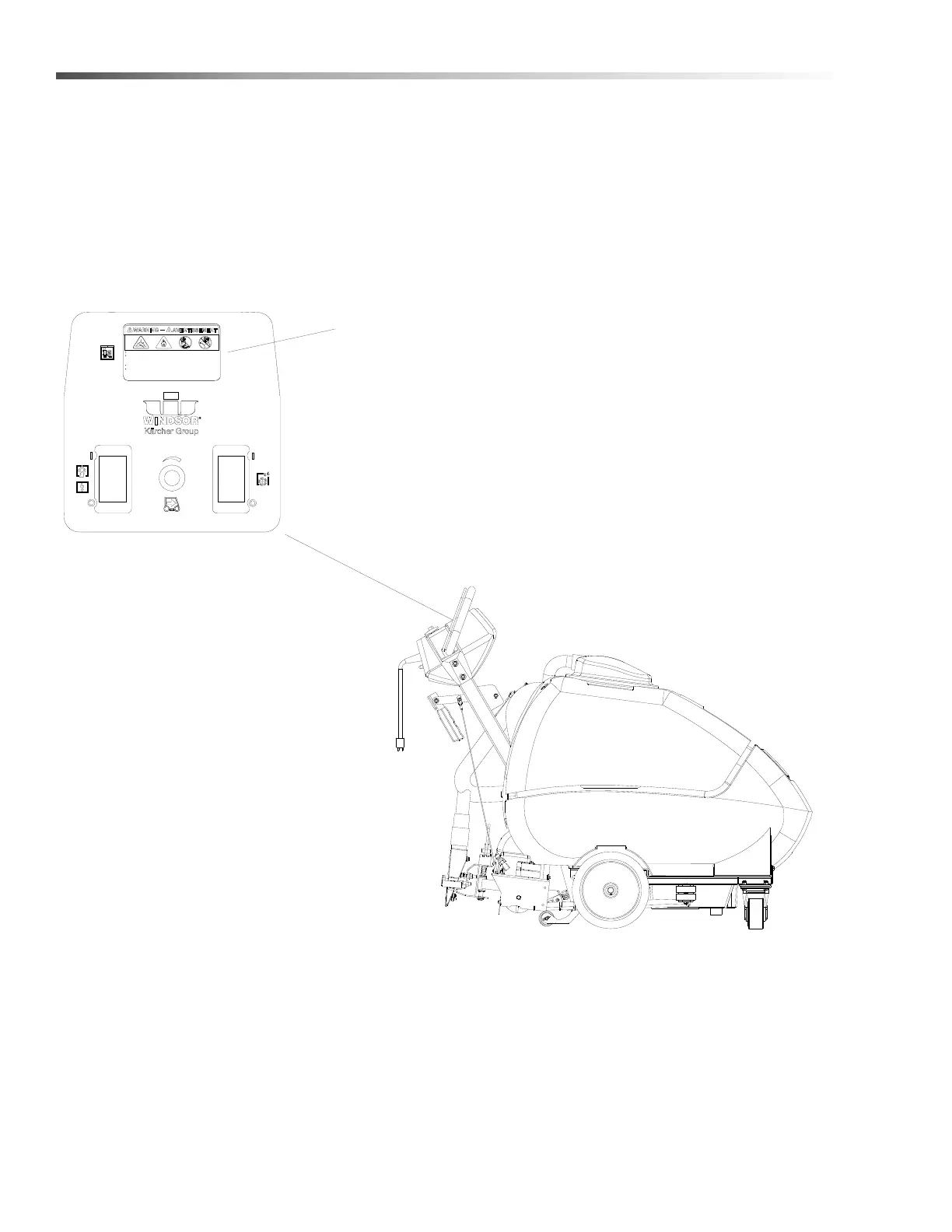

NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become
illegible, promptly replace them.
RISK OF EXPLOSION. DO NOT USE OR PICK UP FLAMMABLE MATERIAL.
TO REDUCE THE RISK OF ELECTRIC SHOCK, USE INDOORS ONLY AND ALWAYS INSTALL
FLOAT BEFORE ANY WET PICK-UP OPERATION. USE ONLY DETERGENT INTENDED
FOR CLEANING CARPETS.
RISQUE D'EXPLOSION. NE PAS UTILISER OU RAMASSER DES MATIÈRES INFLAMMABLES.
POUR RÉDUIRE LE RISQUE D'ÉLECTROCUTION, UTILISER À L'INTÉRIEUR SEULEMENT ET
TOUJOURS INSTALLER LE FLOTTEUR AVANT TOUTE OPÉRATION DE RAMASSAGE DANS
DES CONDITIONS HUMIDES. UTILISER SEULEMENT DU DÉTERGENT CONÇU POUR LE
NETTOYAGE DES TAPIS.
WARNING LABEL INCLUDED ON
86396920 CONTROL PANEL LABEL
86400940 Operators Manual - CMD20

Windsor Commodore 20 Specifications

General

Electrical	230V, 8 A, 50 HZ
Power Cable	75’ (23 m) (12 gauge)
Electric Propelling Motor	(1) –1/4 hp DC (186 watts) with variable speed forward.
Electric Vacuum Motor	(1) – 3 stage, 1 hp 99 cfm (2.80 m³/min.)
Drive System	Transaxle unti variable speed Operating Speed: 0-100ft/min (30m/min)
Waterlift	117” (297 cm)
Brush Speed	1000 RPM
Solution Capacity	20 Gallons (75 ltr)
Recovery Capacity	20 Gallons (75 ltr)
Brush	(1) 18” (45.8 cm)
Solution Pump	100 psi (6.9 BAR), diaphragm style, demand pump
Solution Spray	2 quick change jets
Vacuum Shoe	22” (56 cm) wide, cast urethane floating and pivoting.
Wheels - Front (2) - Rear (2)	4” dia. (10 cm) caster by 2.5” 10” dia (25 cm) wheels by 2”

Weight and Dimensions

Dimensions - Weight	215 lbs. (98 kg)
Dimensions - Length	51” (130 cm)
Dimensions - Height	44” (111 cm)
Dimensions - Width	22” (56 cm)
