4 | MULTI- ZONE / FROZEN FOOD VENDOR • 3576 • 4222618A
INSTALLATION
• This vendor should only be installed where it can be overseen by trained personnel.
• The maximum safe tilt angle of this vendor is 10°.
• Do not attempt to move the vendor by hand; it should only be moved using equipment
with the proper load rating.
• Consult local, state and federal codes and regulations before installing the vendor.
• Retrieve the keys to the vendor from the coin return cup.
• Open outer door and remove all internal packing material.
Position and level vendor prior to connecting vendor to power. All set up
must be completed prior to prevent harm to the installer or vendor.
POWER CORD INSTALLATION
The power cord is a 14 gauge cord and is fastened to
rear mounting box so it stays with the machine and
doesn’t get changed with a lighter gauge cord. The
power cord is connected and routed under the cover
as shown in Figure 2. Keep power cord secured on
the center back of the cabinet until the vendor is
placed into its final location to prevent damage to the
cord.
Position the vendor in its place of operation no
further than nine feet from the power outlet or
receptacle. Check that the door will open fully
without interference. Leave at least four (6”) inches
of space between the back of the vending machine
and any wall or obstruction for proper air
circulation.

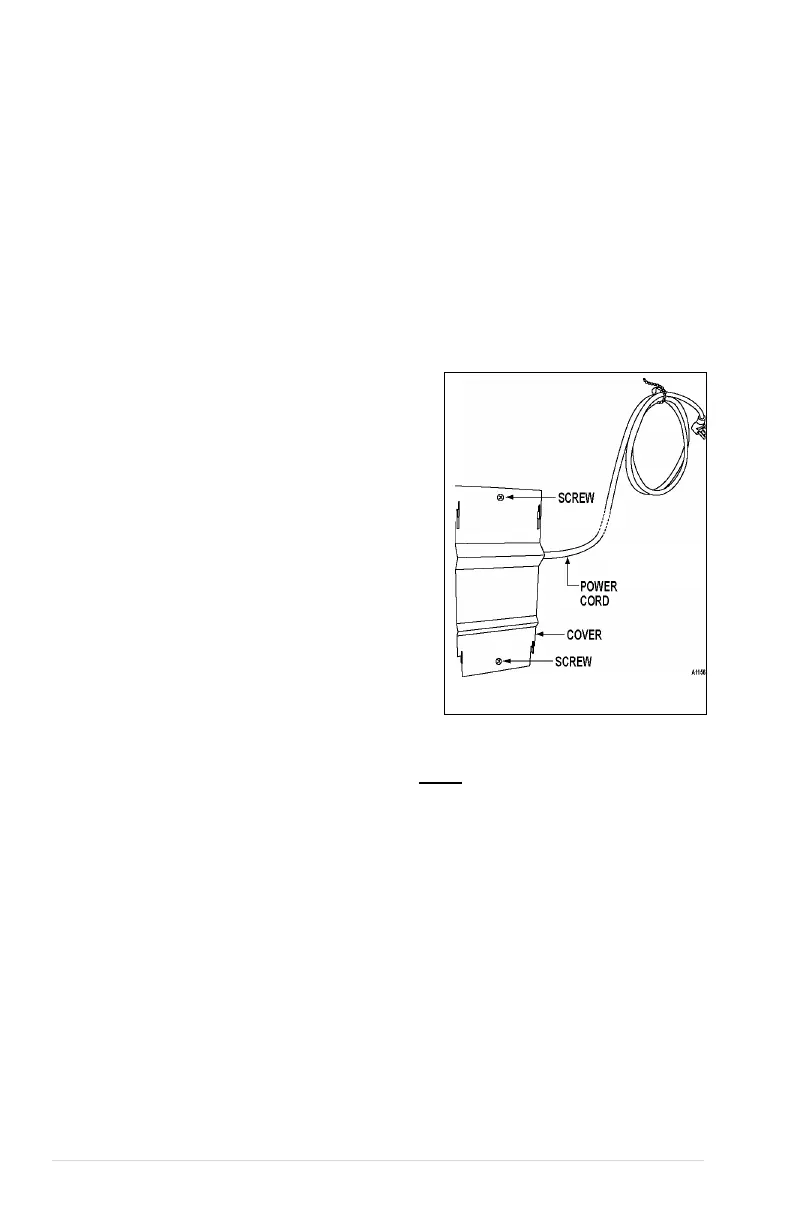

Figure 2. Power Cord
LEVEL THE VENDOR
All levelers must touch the floor. The vendor must be level for proper operation,
cabinet to door alignment, condensate drainage, and for acceptance of coins
through the coin mechanism.
GROUNDING (EARTHING) & ELECTRICAL
Before connecting the vendor, the integrity of the main electrical supply must be checked
for correct polarity, presence of ground (earth) and correct voltage. Please refer to the
Safety Manual and Installation Guidelines Manual (P/N 4206816) that shipped in the
service package with your vending machine. These checks should be repeated at six (6)
month intervals with the routine safety electrical testing of the vendor itself.
If the receptacle is not properly grounded or polarized, you should contact a licensed
electrician to correctly polarize and/or ground the receptacle to ensure safe operation.
For proper operation of any equipment utilizing electronically controlled
components, the equipment should be placed on an isolated or dedicated noise-
free circuit, properly polarized and grounded.
