8 | MULTI- ZONE / FROZEN FOOD VENDOR • 3576 • 4222618A
PRESS SERVICE
MODE BUTTON
AND PRESS 1
TO ENTER TUBE
FILL MODE
INSERT COINS
THROUGH FRONT
DOOR COIN INSERT
TO FILL COIN TUBES
SPIRAL ADJUSTMENT
SNACK/CANDY/FOOD TRAY
Each auger can be rotated in 20° (degree) increments for a different product vend drop-off
point. Most items can be vended successfully when the auger end is positioned at 6
o'clock.
The general rule is - the narrower the
product, then the higher the timing.
• Thick Products - 4-6 o’clock
• Most products – 6 o’clock
• Thin Products - 6-8 o’clock
TO CHANGE AUGER TIMING
1. Remove the motor cover. See Figure 5f.
2. Raise the motor slightly and pull forward on
the auger until it separates from the motor.
3. Rotate the auger to the desired position and
re-insert the hub (auger coupling) into the
motor. The hub (auger coupling) must be
seated over the vertical rail or retaining rib
on the tray.
4. Replace the motor cover making sure it is
securely tightened.
5.
Test vend to make sure product vends
correctly.

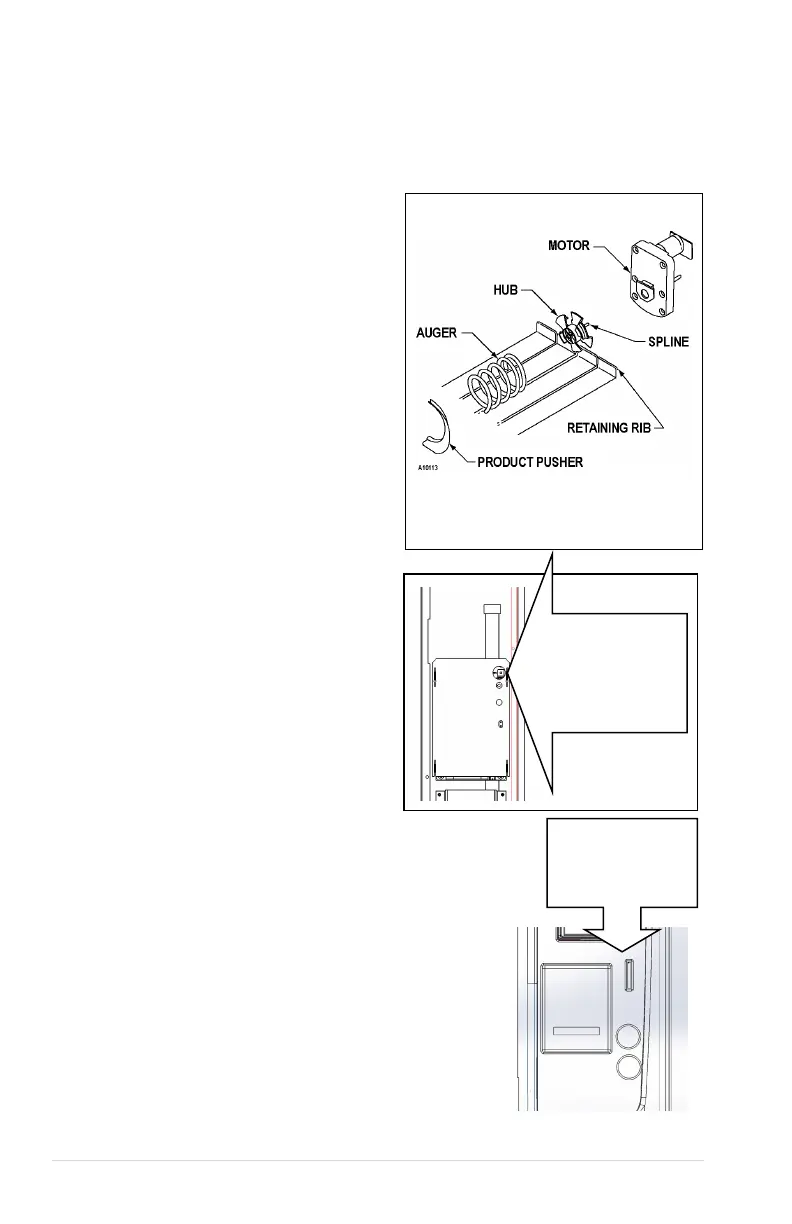

Figure 5f. Motor & Auger
(Standard Tray)
Loading Coin Mechanism
The Coin Mechanism must be loaded with
some level of each coin in order for the vendor
to operate properly. The coins need to be
loaded into the coin mechanism by insertion
into the front coin insert. First enter the
SERVICE MODE then TUBE FILL MODE
(See SERVICE MODE instructions –
COIN/TUBE FILL MODE
Each tube should be kept loaded with at least
one roll of each coin to keep above the tube
low level sensors. Once the tubes are loaded
to these levels the Dollar Bill Validator will accept bills. If the coin
tubes fall below this level the Dollar Bill Validator may stop
accepting bills and the front display will indicate "EXACT CHANGE
ONLY".
Alternatively, you can load the coins into the slots above the
respective coin tubes, making sure to load the correct coins into
their correct tubes. This is not the preferred method. By using
TUBE FILL mode the control board can then accurately
determine coin levels.
On some Coin Mechanisms there are buttons above each
tube to dispense the coins (may vary depending on which coin
mechanism that is used). The coins can also be dispensed
within the Service Mode described later.
