Worcester GB162-100

TECHNICAL SPECIFICATIONS
6 720 648 726 (2011/07)
85
HYDRAULIC RESISTANCE OF THE BOILER

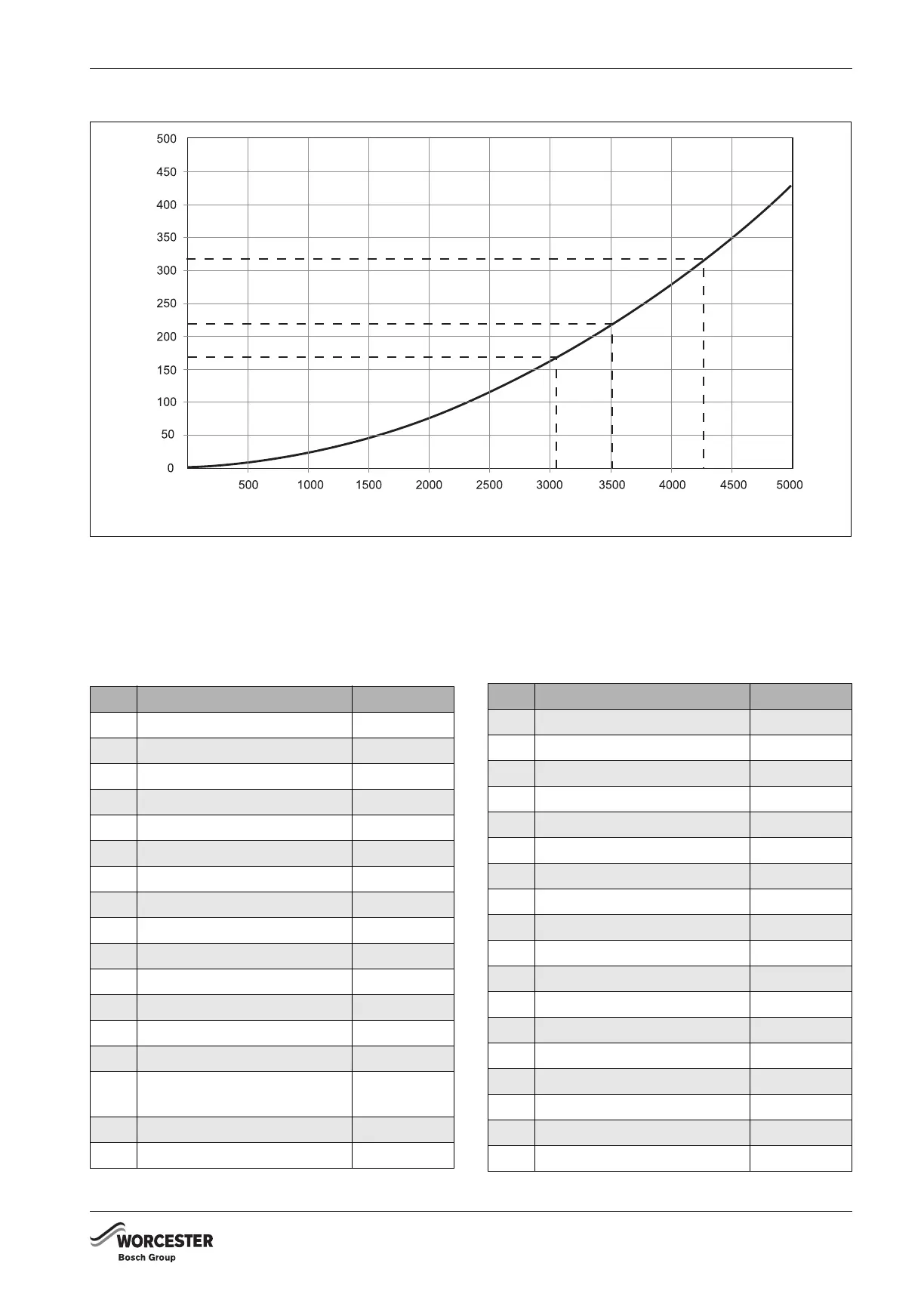

Fig. 123 Boiler resistance curve
15.1 SPARE PARTS LIST GB162-80/100
The following are parts commonly required due to damage or replacements. Their failure will affect safety or
performance of this appliance. For a pictorial representation of the part see the respective position number on the
exploded view pictures on page 87 and 88.
65 kW
80 kW
100 kW
Volume flow [l/h]
Boiler resistance [mbar]
6 720 648 726-123.1TD
Description Product No.
1 Door 8718689173
2 Sealing door 73912
3 Door lock 73911
4 Hinge door 73990
5 Wall mounting bracket 73965
6 Bracket left 73962
7 Bracket right 73963
8 Adjusting foot 73949
9 Transport slide (L + R) 73951
10 Drawer modules 73964
11 Screw 4.2 x 8.5 x (10 pc) 73988
12 Condensate collector 73930
13 Seal condensate collector 7746900152
14 Seal 80 mm 73931
15 Upper side condensate
collectors
73934
16 Mounting flue-gas pipe 73907
17 Exhaust pipe 73935
18 Adapter air inlet 73938
19 Seal 100 mm 73939
20 Condensate trap 73933
21 Seal condensate trap 73463
22 Drain pipe 73932
23 Seal bush (white) 73449
24 Condensate drain pipe 73995
25 Fan – 100 kW 73922
26 Seal Fan 73920
27 O-ring 70 x 3 (2 pc) 73983
28 Venturi 73978
29 Seal Ø 60 mm 73563
30 Gas valve 8718600290
31 Seal 33 x 24 x 3.5 (10 pc) 73368s
32 Gas pipe – 100 kW 73975
33 Flange gas valve 8718600286
34 O-ring (10 pc) 73982
35 Orifice 100 kW 73980
Description Product No.
