Work Sharp Ken Onion Edition - Tool Grinding Attachment; Installing the Pulley Hub and Attachment

23
Tracking Lever
Slack Grind
Platen Grind
Ball Detent
Hub Fastener
(Left-Handed Thread)
Quick Lock
Tensioner
Push lock release lever and rotate knife
sharpening cassette to position shown,
pull outward to remove cassette.

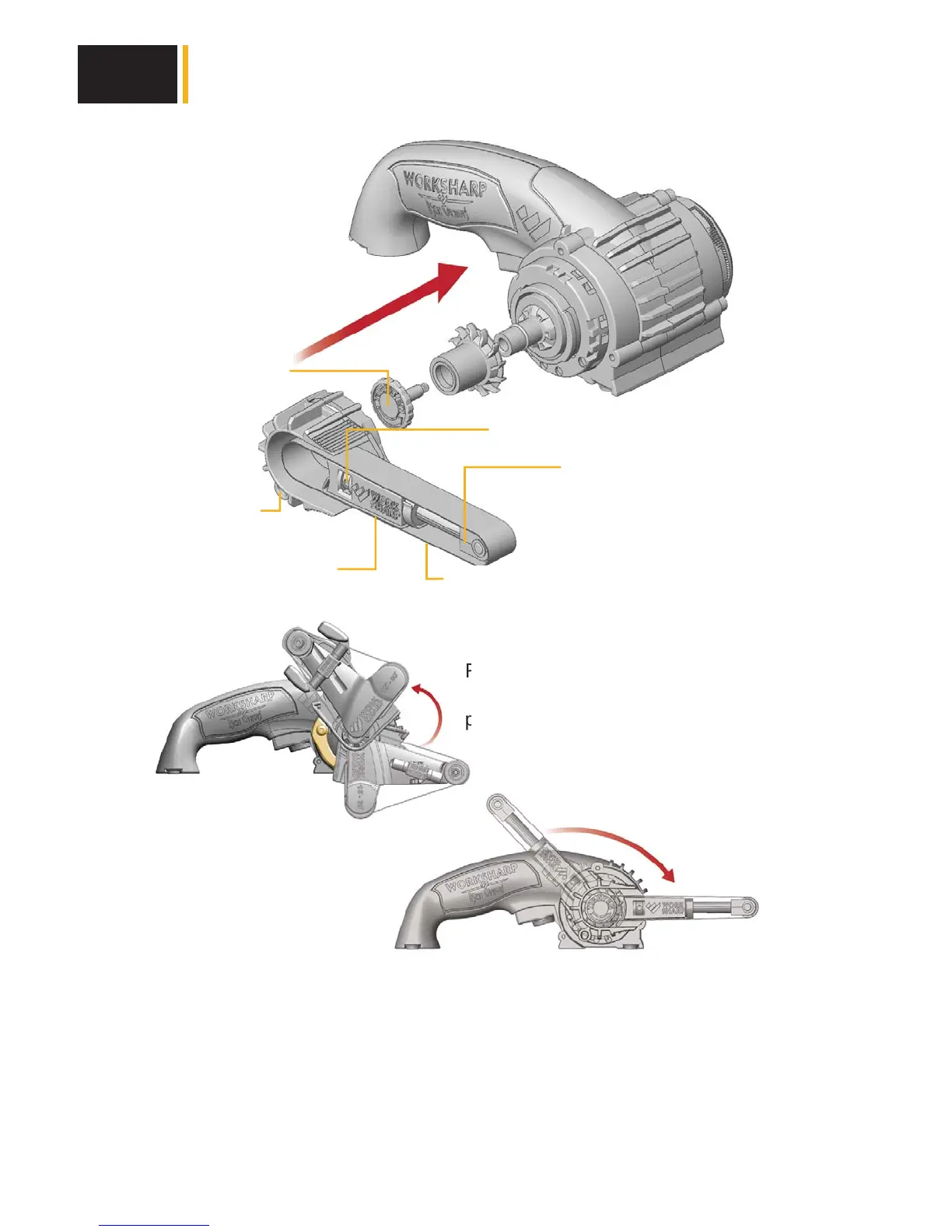

1. Install pulley drive hub onto tool using provided Left-Hand Thread Hub Fastener –
turn
LEFT to tighten and RIGHT to loosen, do not over-tighten fastener.
Be sure the drive pulley is properly aligned onto the keyed motor shaft.
2. Install metal Tool Grinding Attachment by pressing inward and rotating forward.
3. Push in and turn tensioner to install / uninstall belt. Use tracking lever to center belt
on pulley.
