12 Freedom SW Owner’s Guide
Freedom SW Inverter/Charger Mechanical Features

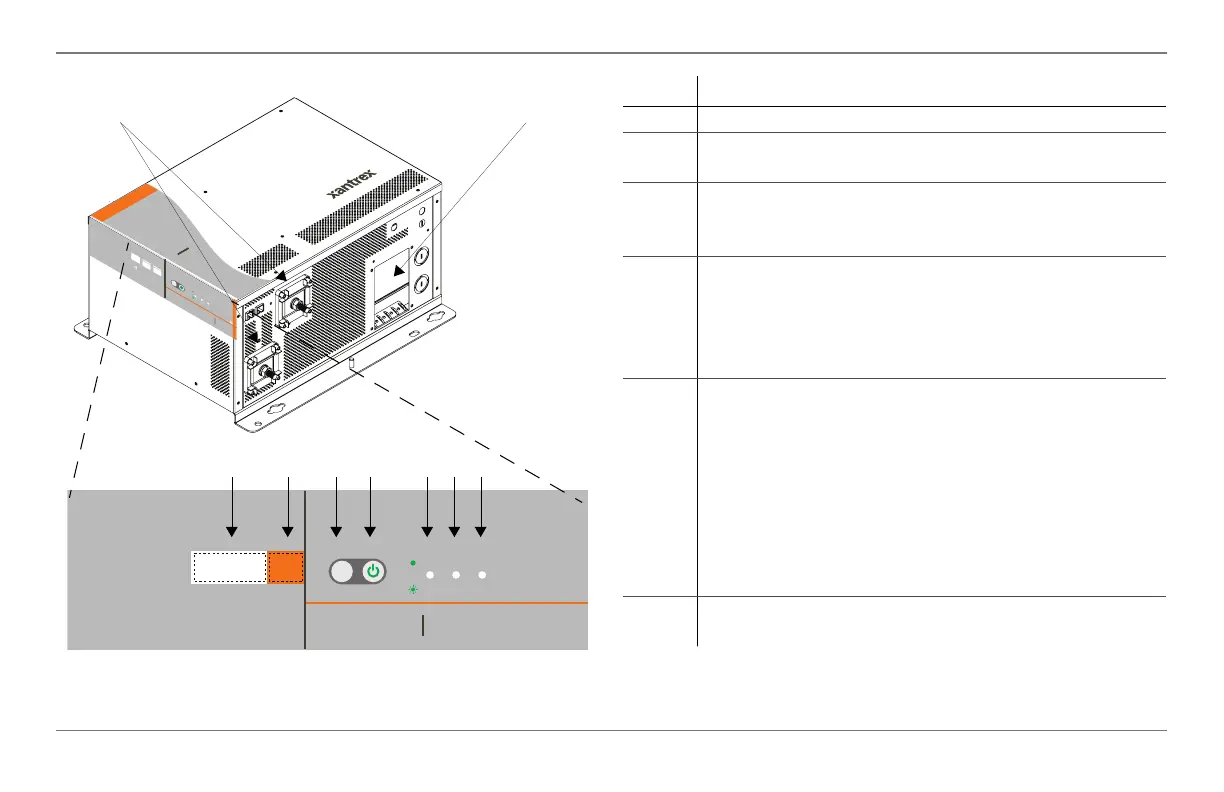

Figure 5 Isometric View of the Front Panel and AC/DC Side Panel
XANBUS INTERFACE STACKING
FREEDOM SW INVERTER/CHARGER
CLEAR FAULT
RESET
INVERTER
ENABLE
INVERTER
ENABLED
AC IN FAULT
GEN
SUPPORT
CHARGING WARNING
FREEDOM
SW
3012
FREEDOM SW
3012
CLEAR FAULT
RESET
INVERTER
ENABLE
INVERTER
ENABLED
AC IN
FAULT
GEN
SUPPORT
CHARGING WARNING
3
1
4
2
56
79 8
Item Description
1 DC terminals.
2 AC wiring compartment access panel with
compartment cover on.
3 FAULT LED turns on solid if a fault condition occurs
and flashes intermittently when a WARNING condition
is active.
4 When AC is present and qualified, the AC IN LED will
turn on solid indicating also that AC is passing through.
CHARGING LED flashes intermittently when the
Freedom SW is in charge mode and is producing DC
output to charge your batteries.
5 INVERTER ENABLED indicates the invert mode is
enabled. This is different from the inverter being “on”.
When enabled the inverter can be on or off. When
disabled, the inverter is always off. If AC is present and
invert mode is enabled, this LED remains illuminated
even though AC power is being passed through.
GEN SUPPORT LED flashes intermittently when the
inverter is in generator support mode and is assisting the
generator.
6 INVERTER ENABLE button is used to enable or
disable the inverter.
FSW Owners Guide.book Page 12 Tuesday, August 7, 2018 9:03 AM
