XCMG XCT80 - 9-3-2 Component name of auxiliary crane arm

XCT80 Truck Crane Operation Manual
9-5
Crane accessory
No. Name No. Name No. Name
1 Auxiliary arm 2 Main boom 3
Auxiliary arm installation
hole(four places)
4
Auxiliary arm installation
pin
（four places）
5
Main arm installation hole
（（four places）
6
Chapter 9
9-3-2 Component name of auxiliary crane arm

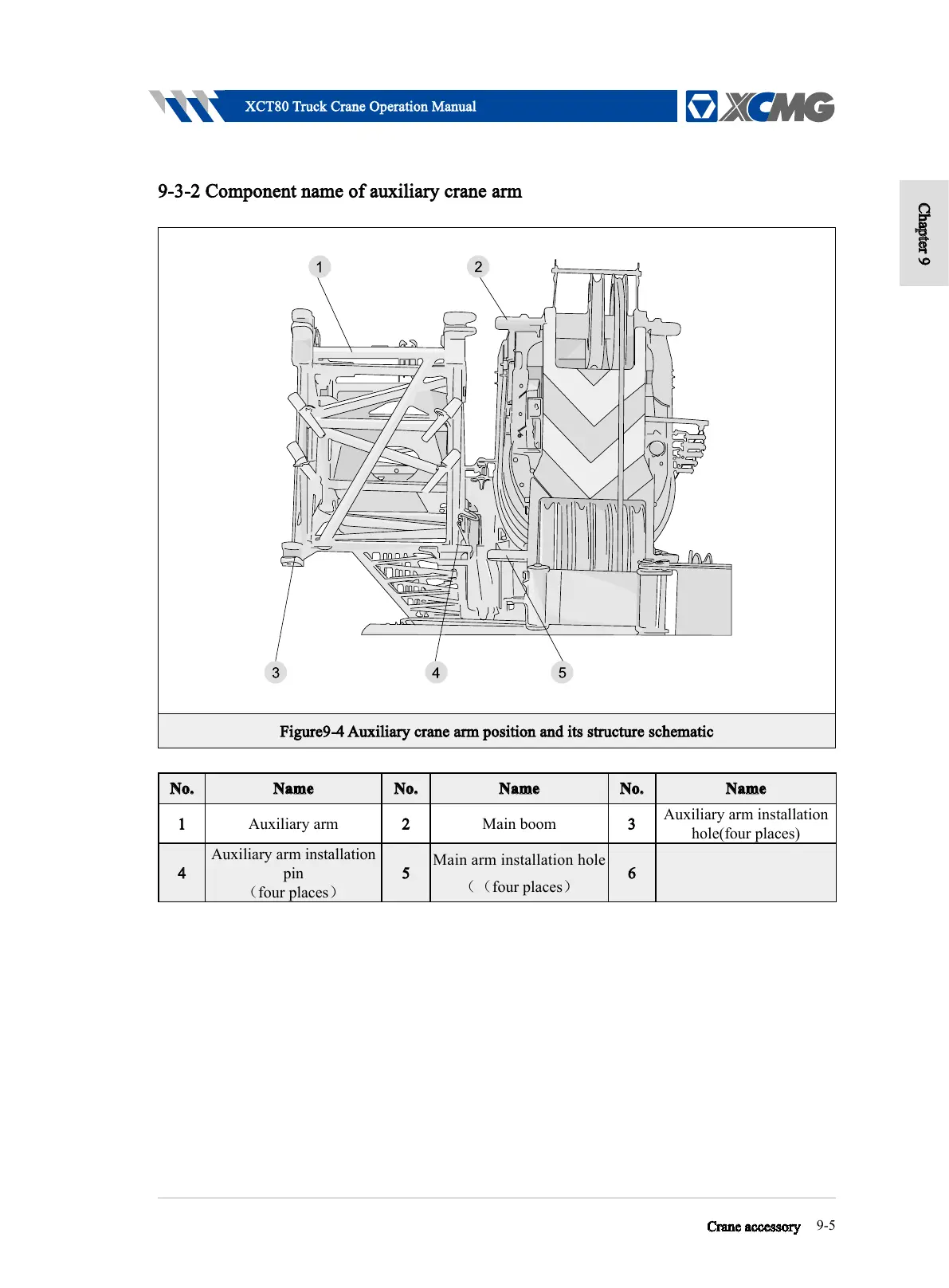

Figure9-4 Auxiliary crane arm position and its structure schematic
