XCT80 Truck Crane Operation Manual
6-4
6-3 Cab and protective device
6-3-1 The cab interior equipments
The cab interior equipments comprise a dashboard, a control switch， an operating mechanism
and seats. (Figure 6-3).

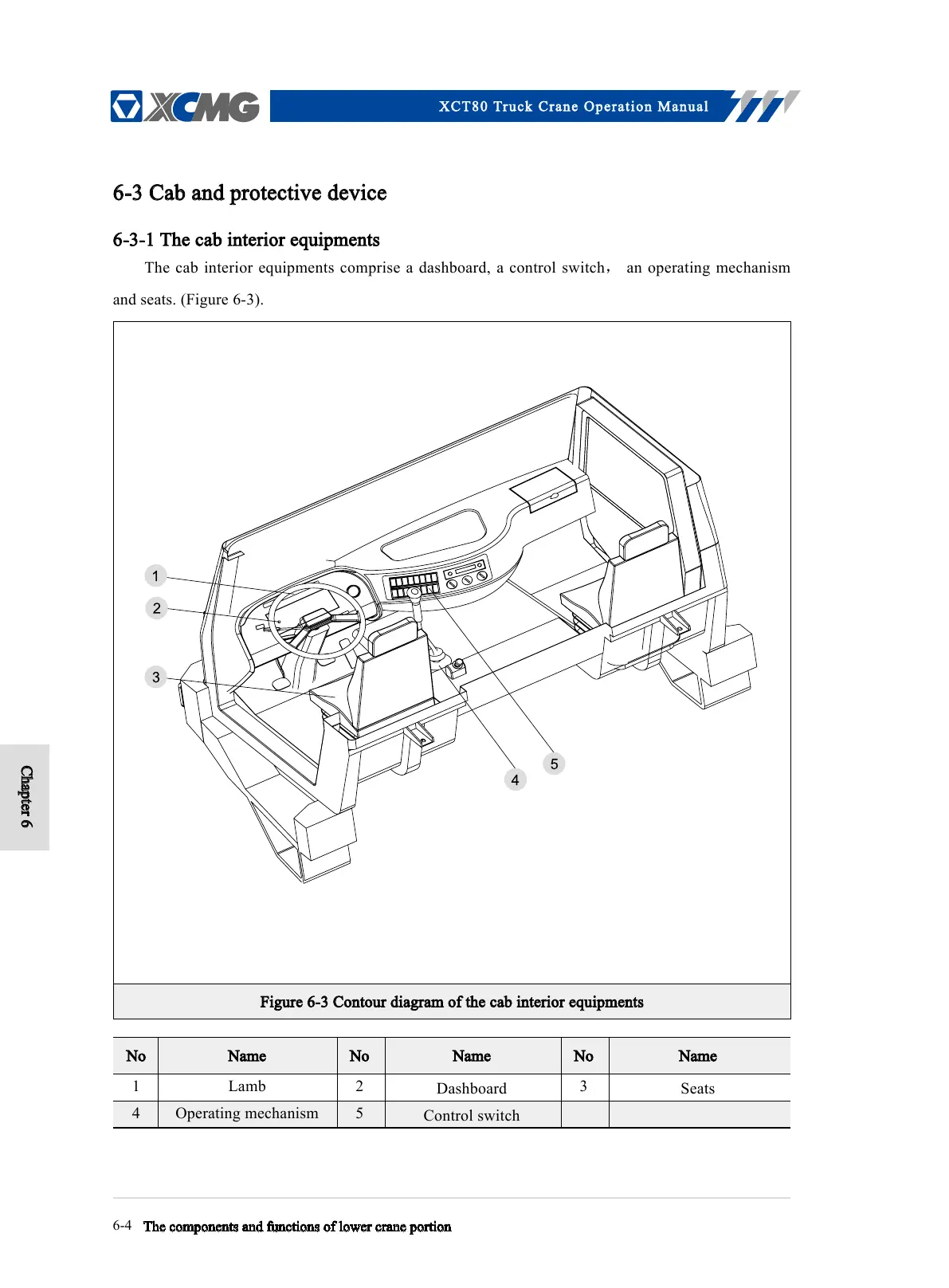

Figure 6-3 Contour diagram of the cab interior equipments
No Name
1
4
No
Lamb
Operating mechanism
2
5
Name No
Dashboard
Control switch
3
Name
Seats
