XCT80 Truck Crane Operation Manual
6-5

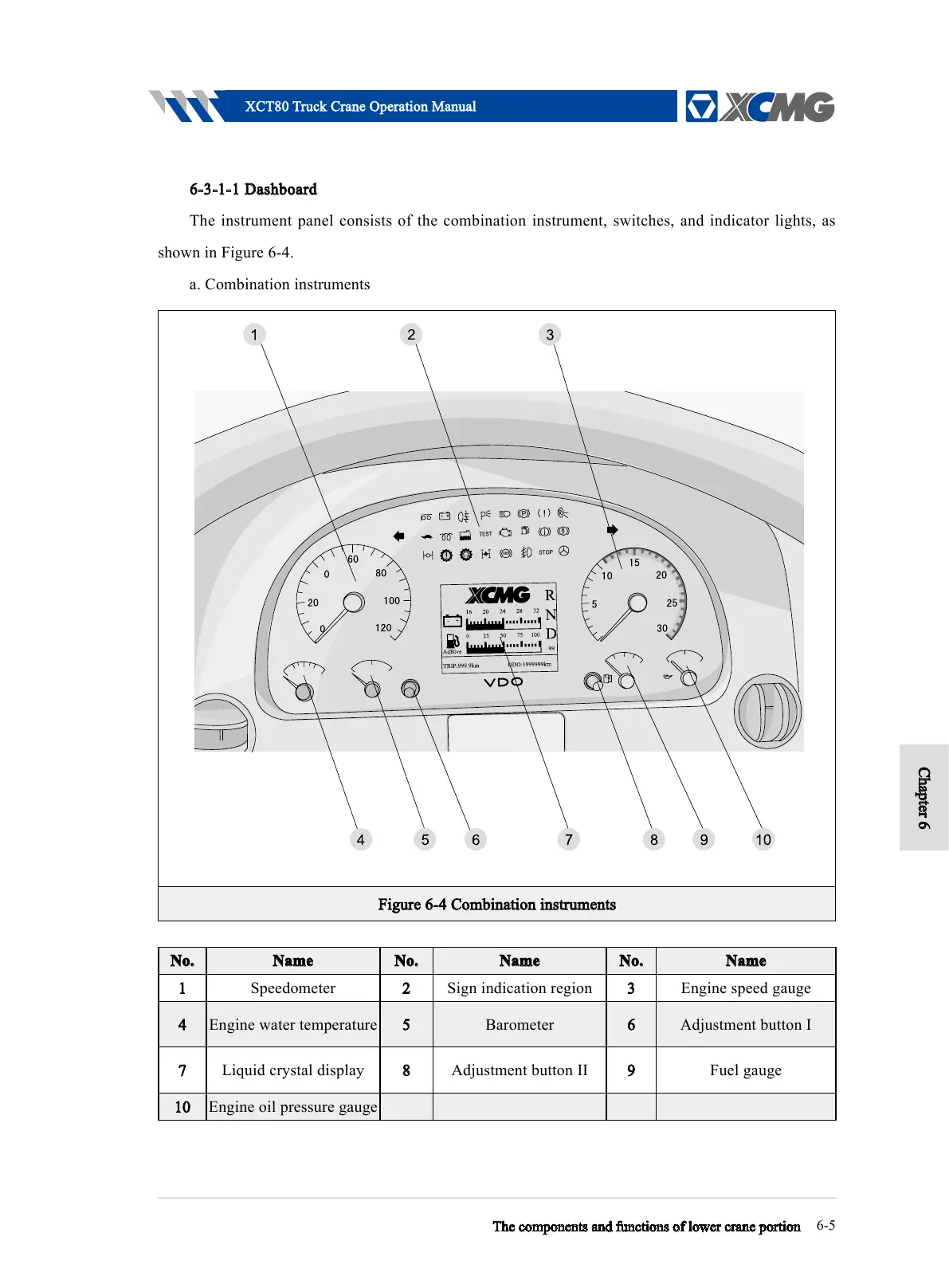

Figure 6-4 Combination instruments
6-3-1-1 Dashboard
The instrument panel consists of the combination instrument, switches, and indicator lights, as
shown in Figure 6-4.
a. Combination instruments
The components and functions of lower crane portion
Chapter 6
No. Name No. Name No. Name
1 Speedometer 2 Sign indication region 3 Engine speed gauge
4 Engine water temperature 5 Barometer 6 Adjustment button I
7 Liquid crystal display 8 Adjustment button II 9 Fuel gauge
10 Engine oil pressure gauge
