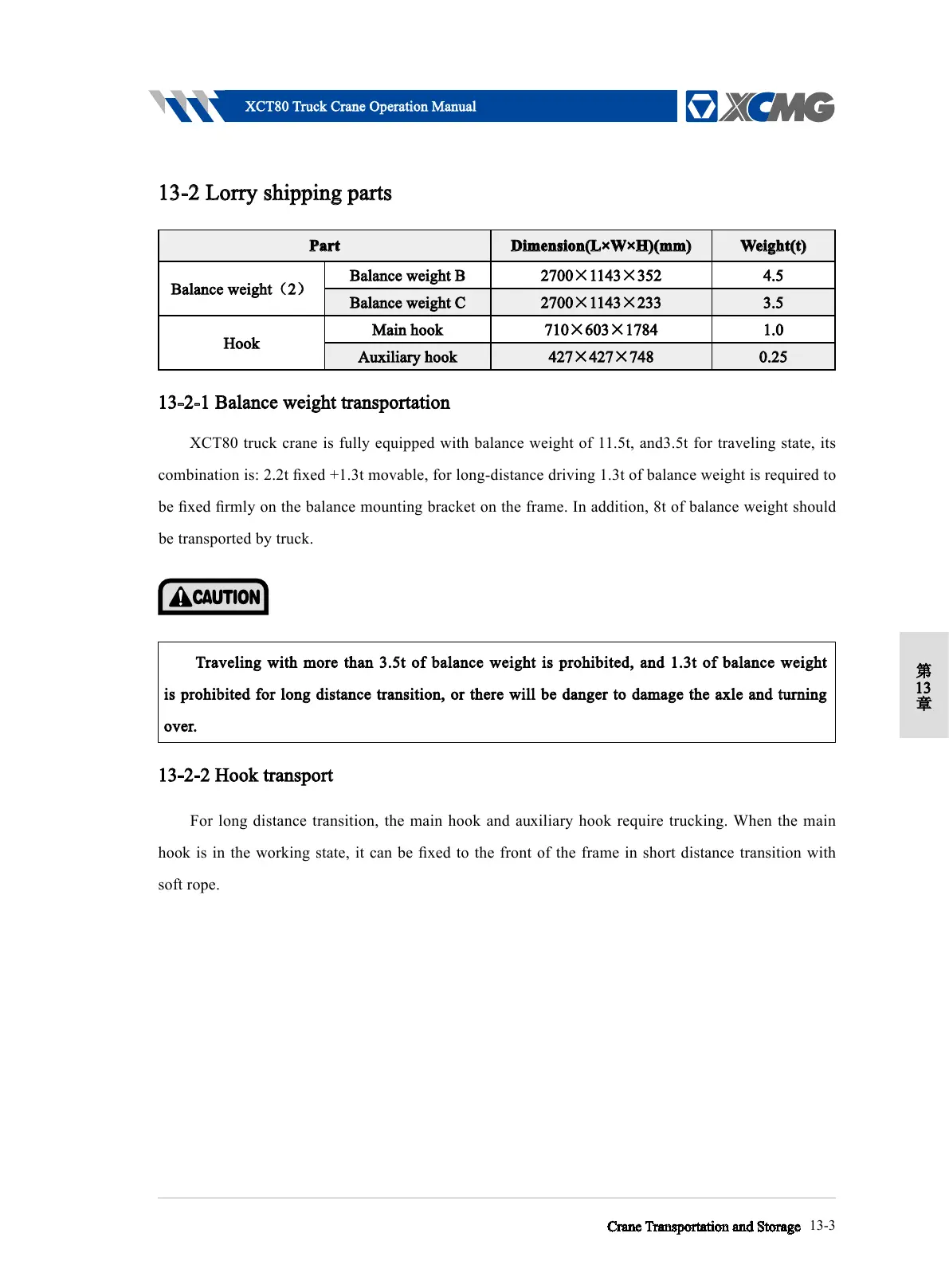

XCT80 Truck Crane Operation Manual
13-3
13-2 Lorry shipping parts
13-2-1 Balance weight transportation
13-2-2 Hook transport
XCT80 truck crane is fully equipped with balance weight of 11.5t, and3.5t for traveling state, its
combination is: 2.2t fixed +1.3t movable, for long-distance driving 1.3t of balance weight is required to
be fixed firmly on the balance mounting bracket on the frame. In addition, 8t of balance weight should
be transported by truck.
For long distance transition, the main hook and au
xiliary hook require trucking. When the main
hook is in the working state, it can be fixed to the front of the frame in short distance transition with
soft rope.
Traveling with more than 3.5t of balance weight is prohibited, and 1.3t of balance weight
is prohibited for long distance transition, or there will be danger to damage the axle and turning
over.
Crane Transportation and Storage
第
章
13
Part Dimension(L×W×H)(mm) Weight(t)
Balance weight（2）
Balance weight B 2700×1143×352 4.5
Balance weight C 2700×1143×233 3.5
Hook
Main hook 710×603×1784 1.0
Auxiliary hook 427×427×748 0.25
