XCT80 Truck Crane Operation Manual
5-29

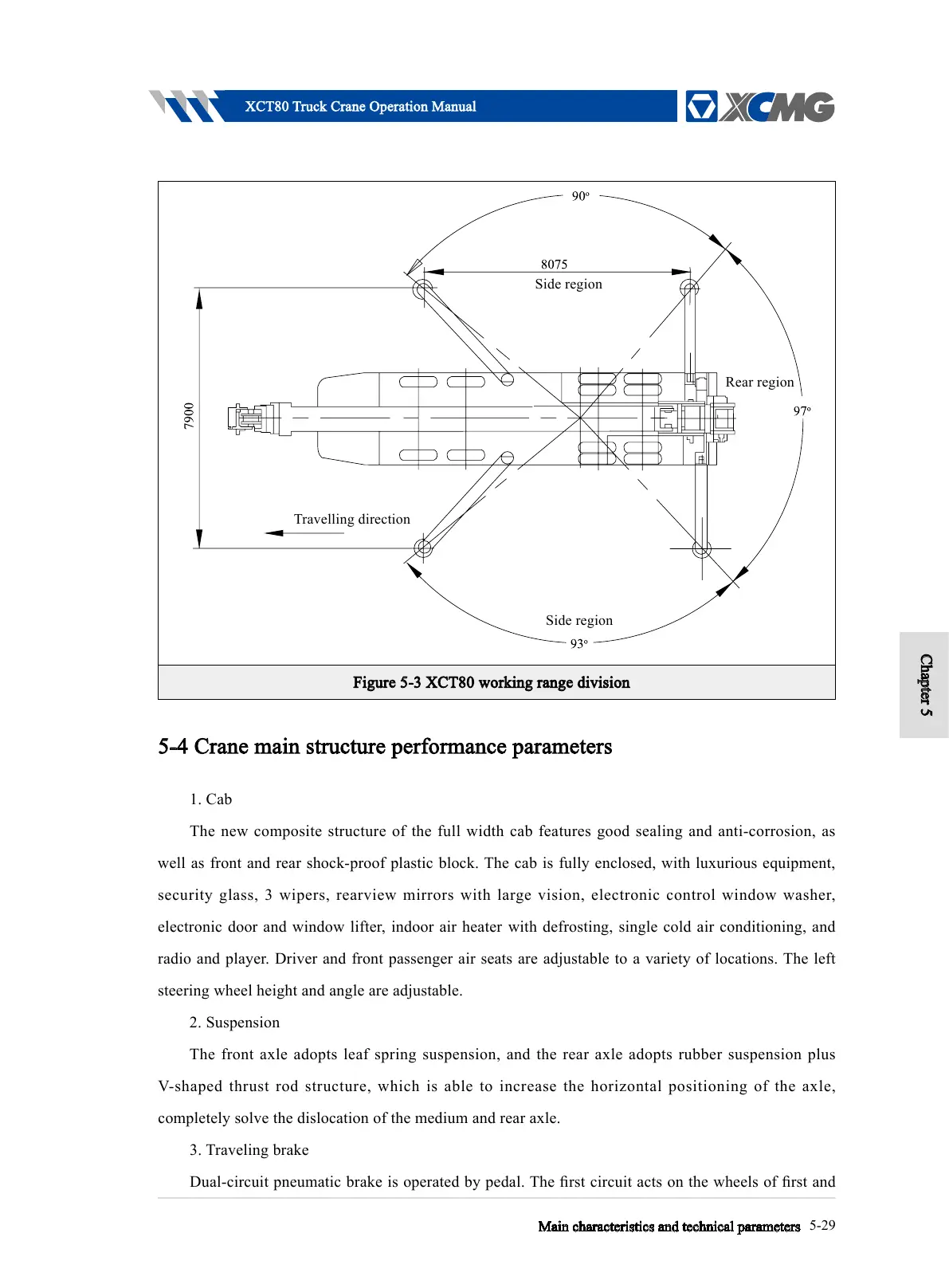

Figure 5-3 XCT80 working range division
5-4 Crane main structure performance parameters
1. Cab
The new composite structure of the full width cab features good sealing and anti-corrosion, as
well as front and rear shock-proof plastic block. The cab is fully enclosed, with luxurious equipment,
security glass, 3 wipers, rearview mirrors with large vision, electronic control window washer,
electronic door and window lifter, indoor air heater with defrosting, single cold air conditioning, and
radio and player. Driver and front passenger air seats are adjustable to a variety of locations. The left
steering wheel height and angle are adjustable.
2. Suspension
The front axle adopts leaf spring suspension, and the rear axle adopts rubber suspension plus
V-shaped thrust rod structure, which is able to increase the horizontal positioning of the axle,
completely solve the dislocation of the medium and rear axle.
3. Traveling brake
Dual-circuit pneumatic brake is operated by pedal. The first circuit acts on the wheels of first and
Main characteristics and technical parameters
