XCT80 Truck Crane Operation Manual
5-28

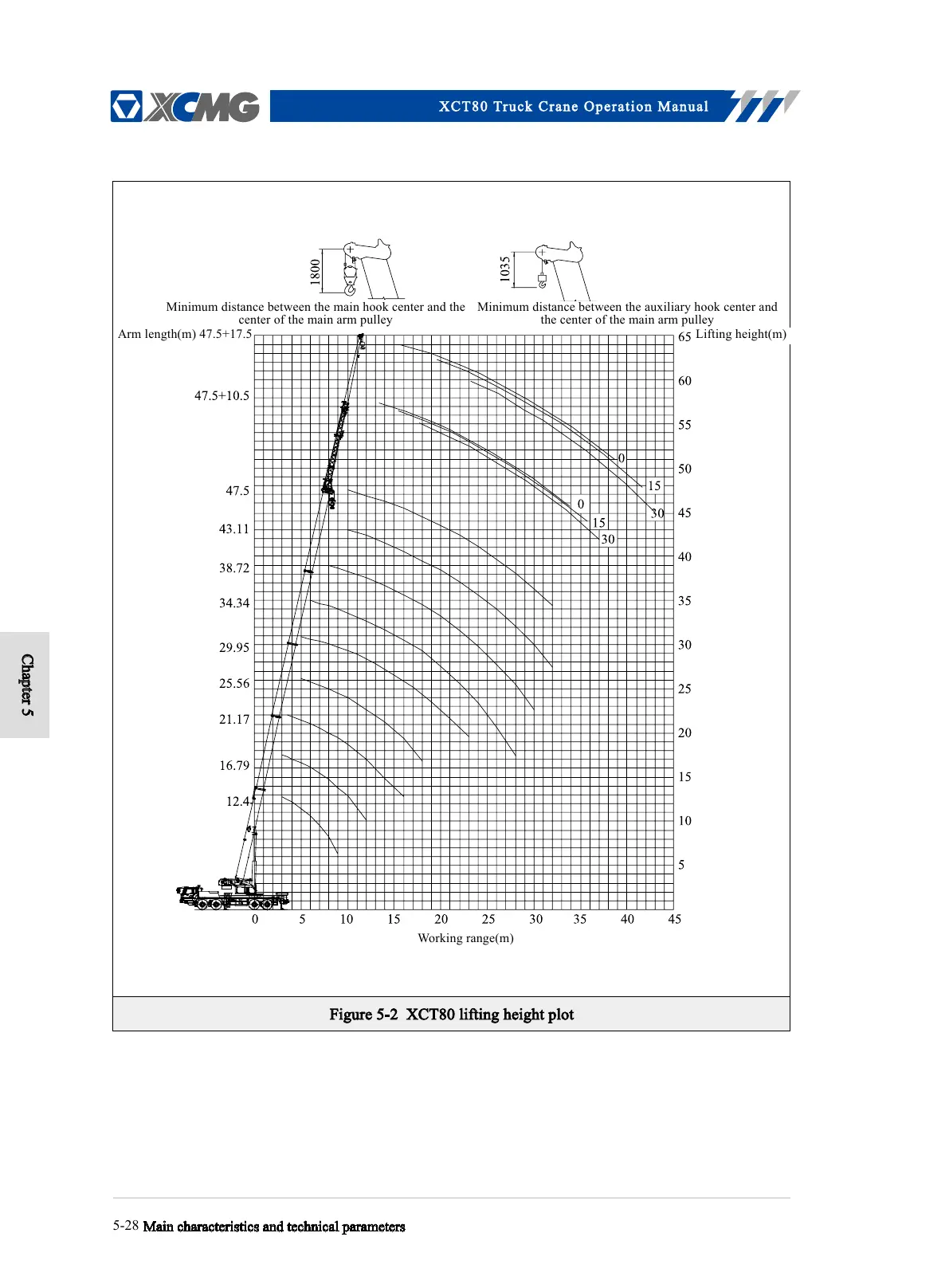

Figure 5-2 XCT80 lifting height plot
Main characteristics and technical parameters
Chapter 5
Lifting height(m)Arm length(m) 47.5+17.5
Minimum distance between the main hook center and the
center of the main arm pulley
Minimum distance between the auxiliary hook center and
the center of the main arm pulley
Working range(m)
