XCT80 Truck Crane Operation Manual
10-15

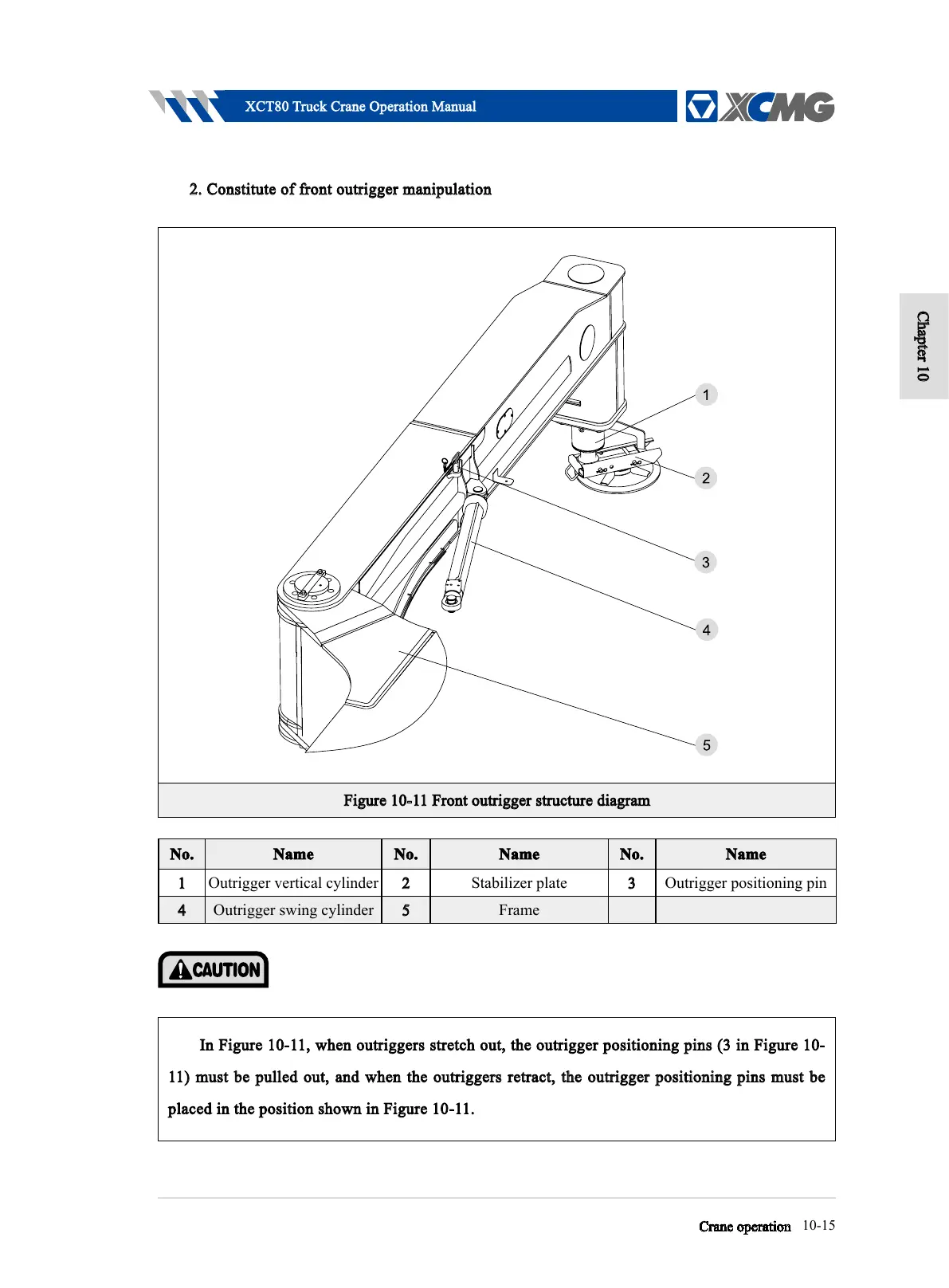

Figure 10-11 Front outrigger structure diagram
2. Constitute of front outrigger manipulation
Crane operation
In Figure 10-11, when outriggers stretch out, the outrigger positioning pins (3 in Figure 10-
11) must be pulled out, and when the outriggers retract, the outrigger positioning pins must be
placed in the position shown in Figure 10-11.
No. Name No. Name No. Name
1 Outrigger vertical cylinder 2 Stabilizer plate 3 Outrigger positioning pin
4 Outrigger swing cylinder 5 Frame
