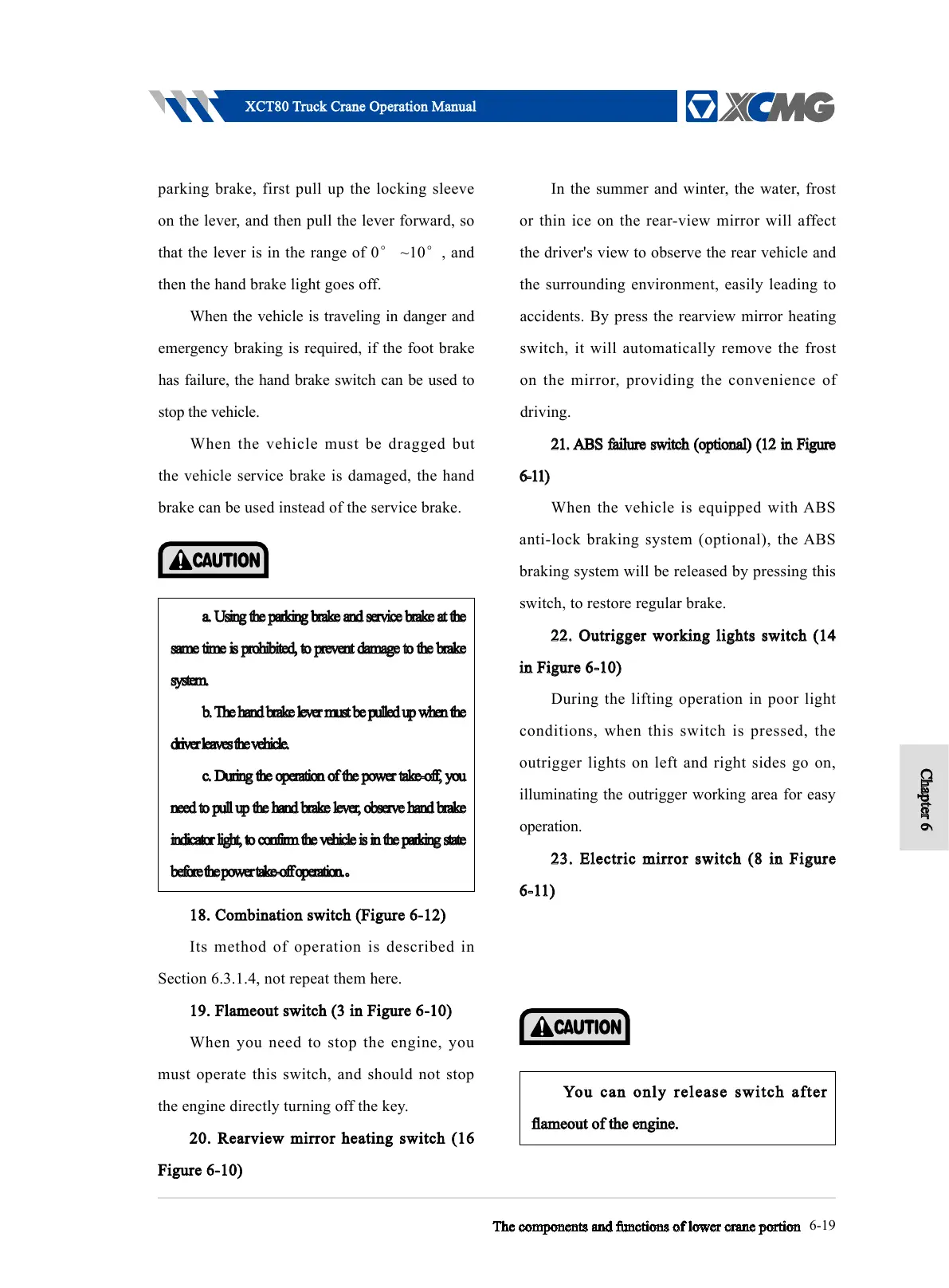

XCT80 Truck Crane Operation Manual
6-19
You can only release switch after
ameout of the engine.
The components and functions of lower crane portion
a. Using the parking brake and service brake at the
same time is prohibited, to prevent damage to the brake
system.
b. The hand brake lever must be pulled up when the
driver leaves the vehicle.
c. During the operation of the power take-off, you
need to pull up the hand brake lever, observe hand brake
indicator light, to confirm the vehicle is in the parking state
before the power take-off operation.。
Chapter 6
parking brake, first pull up the locking sleeve
on the lever, and then pull the lever forward, so
that the lever is in the range of 0° ~10°, and
then the hand brake light goes off.
When the vehicle is traveling in danger and
emergency braking is required, if the foot brake
has failure, the hand brake switch can be used to
stop the vehicle.
When the vehicle must be dragged but
the vehicle service brake is damaged, the hand
brake can be used instead of the service brake.
18. Combination switch (Figure 6-12)
Its method of operation is described in
Section 6.3.1.4, not repeat them here.
19. Flameout switch (3 in Figure 6-10)
When you need to stop the engine, you
must operate this switch, and should not stop
the engine directly turning off the key.
20. Rearview mirror heating switch (16
Figure 6-10)
In the summer and winter, the water, frost
or thin ice on the rear-view mirror will affect
the driver's view to observe the rear vehicle and
the surrounding environment, easily leading to
accidents. By press the rearview mirror heating
switch, it will automatically remove the frost
on the mirror, providing the convenience of
driving.
21. ABS failure switch (optional) (12 in Figure
6-11)
When the vehicle is equipped with ABS
anti-lock braking system (optional), the ABS
braking system will be released by pressing this
switch, to restore regular brake.
22. Outrigger working lights switch (14
in Figure 6-10)
During the lifting operation in poor light
conditions, when this switch is pressed, the
outrigger lights on left and right sides go on,
illuminating the outrigger working area for easy
operation.
23. Electric mirror switch (8 in Figure
6-11)
