User’s Manual | 10

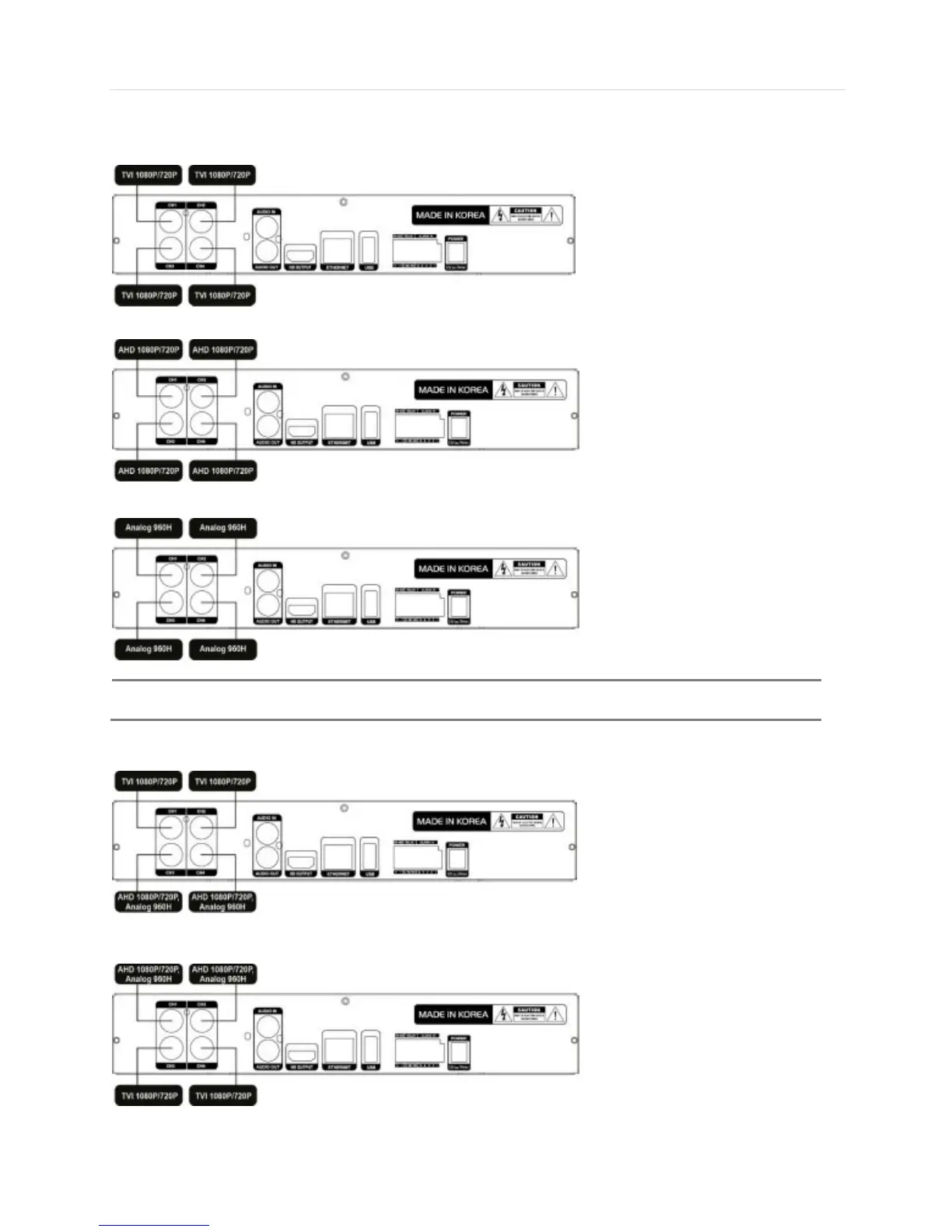

CAMERA CONNECTION
Example 1) All TVI 4CHs 1080P/720P support
Example 2) All AHD 4CHs 1080P/720P support
Example 3) All Analog 960H 4CHs
In order to set TVI or AHD at the same time, the channel combination must be
2 pairs used. (1,2 CH + 3,4 CH + 5,6 CH + 7,8 CH...)
Example 4) CH 1 : TVI 1080P/720P, CH2 : TVI 1080P/720P
CH 3 : AHD 1080P/720P, CH4 : AHD 1080P/720P or Analog 960H
Example 5) CH 1 : AHD 1080P/720P, CH2 : AHD 1080P/720P or Analog 960H
CH 3 : TVI 1080P/720P, CH4 : TVI 1080P/720P
