XENO 4CH - Page 15

15 | Full HD Digital Video Recorder

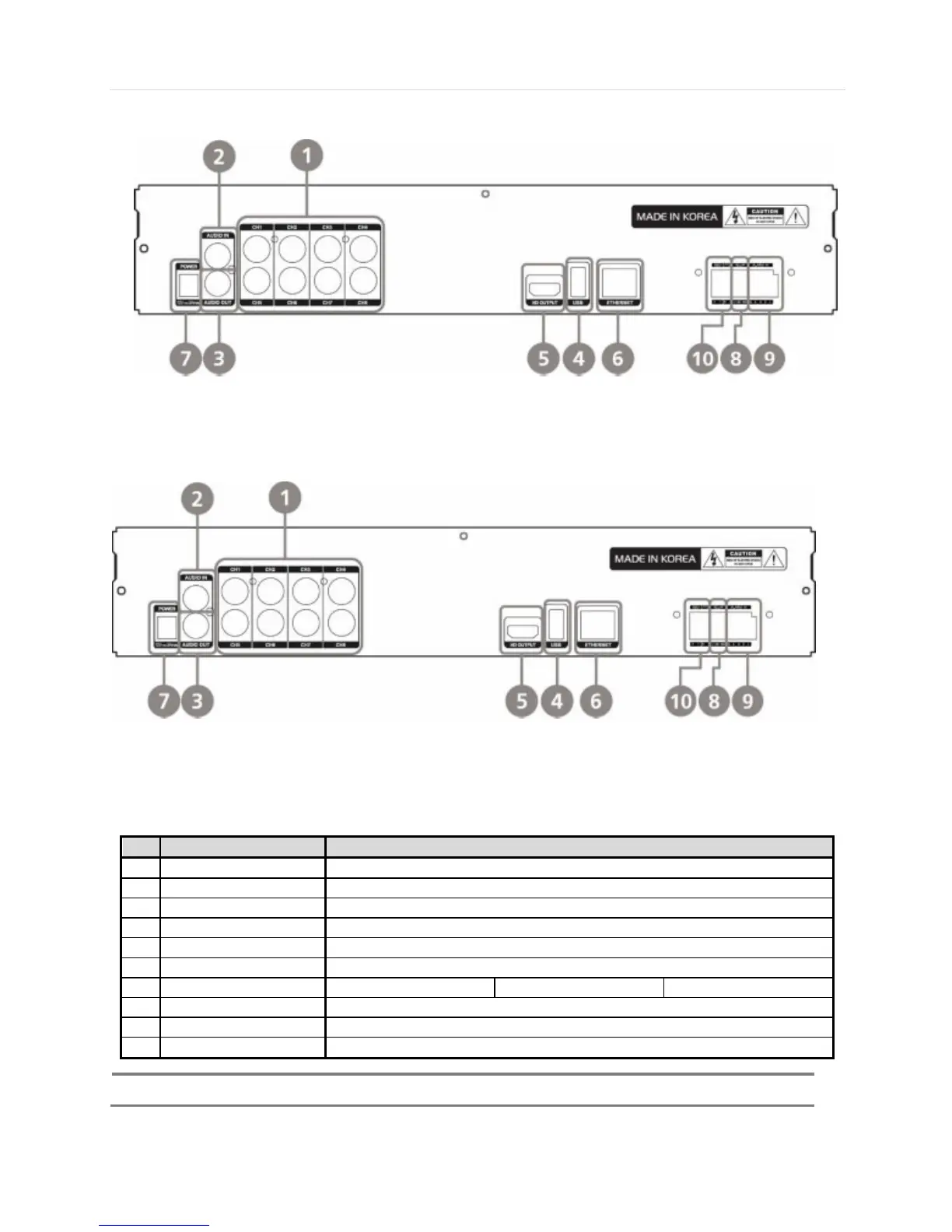

8ch (2 HDD Case) Rear Panel
16ch (2 HDD Case) Rear Panel
No.
Name
Description
1
Video-In
Camera inputs (Supports NTSC/PAL)
2
Audio-In
Audio Input Device (with Amplifier)
3
Audio-Out
Audio Output Device (with Amplifier)
4
USB Port
USB 2.0 Port for Mouse Operation, Backup Device, or Firmware Update
5
HD OUTPUT
HD OUTPUT
6
LAN Port
1 x 10/100/1000M
7
Power Input
4ch : 12V 2A
8ch(1 HDD) : 12V 3A
8/16ch(2HDD) : 12V 5A
8
Alarm Output
Alarm Output
9
Sensor Input
Sensor Input
10
RS-485 Port
PTZ Dome Camera or External Keyboard Controller connection
Note
Carefully check whether the specifications of the peripheral devices match the DVR’s specifications.
