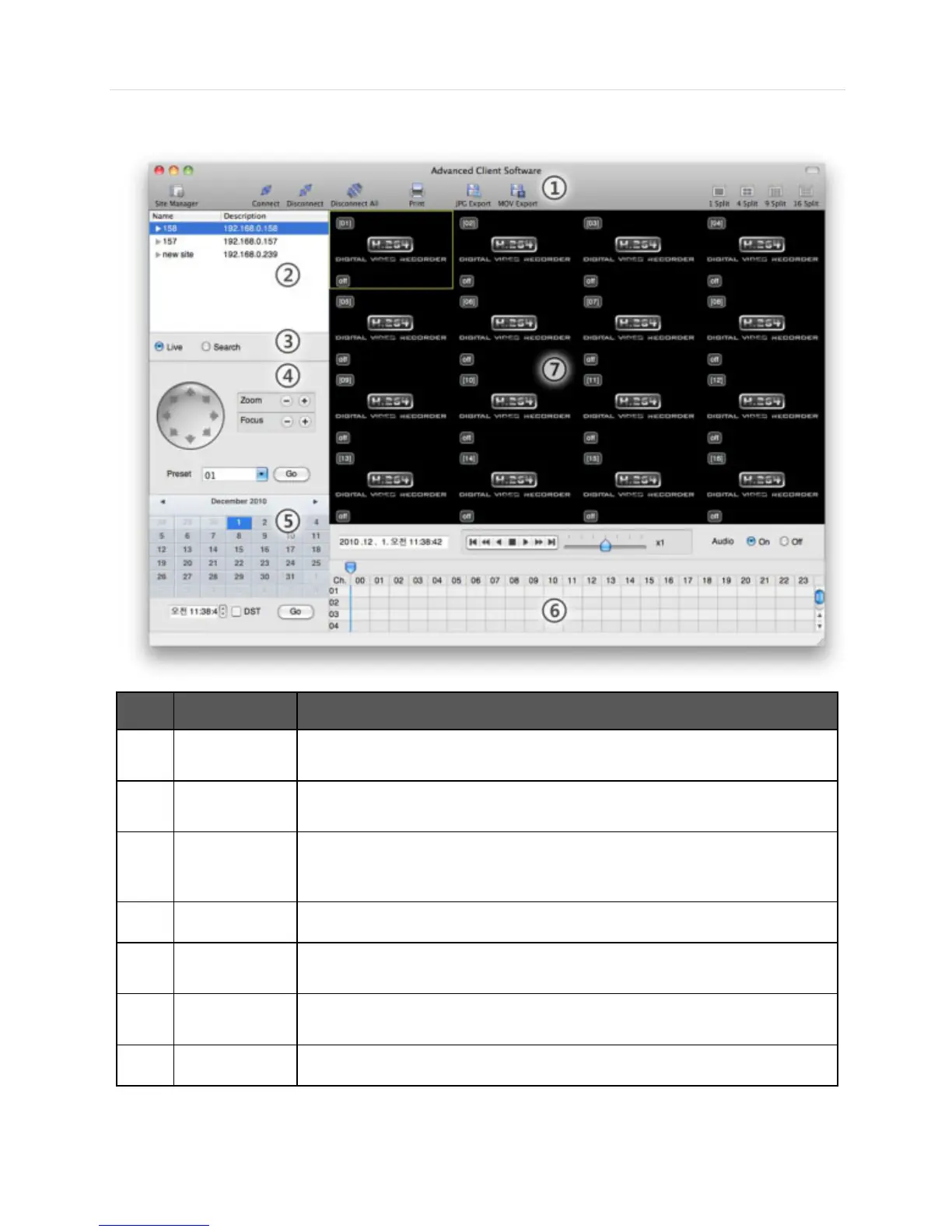

7.3.1 Screen Layout
No.
Item
Description
1
Main Toolbar
AVS Setting, Live and Search Connect, Disconnect, Image Save, Screen
Mode and Change
2
DVR List
Panel
Registered DVR Site List. Possible to connect by Dragging
3
Live or Search
Connect
Panel
Click Live or Search mode to connect the panel
4
PTZ Panel
PTZ Camera Control in Live mode
5
Calendar
Panel
Search by Time and Date
6
Search Panel
Recorded information is shown in search mode.
Control the speed of Playback and Audio as well
7
Display Panel
Transmitted Camera images are shown ( Live and Playback )
