Common UI touch-screen controls
A majority of the Touch Screens use various controls, buttons, text boxes, etc. that are common
with other screens The following information describes the names and functions of the various
common components on the touch panel screens.

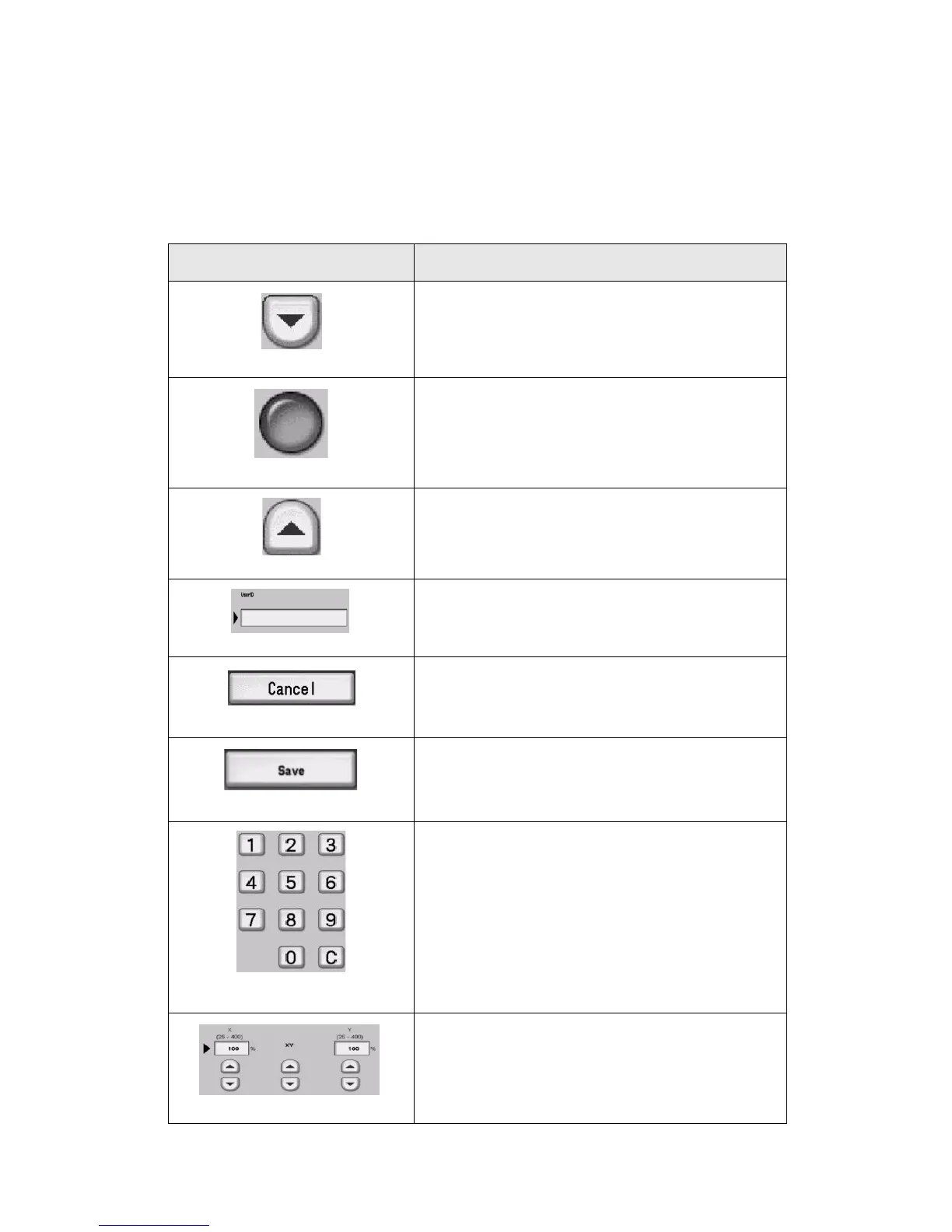

Screen Component / Control Function
Decrease / Next
Use this button to decrease a specific value by one
increment or to display the next screen in a series of screens,
such as a listing.
Feature Button
Use this button to select and exercise the related option,
setting or feature.
Increase / Previous
Use this button to increase a specific value by one increment
or to display the previous screen in a series of screens, such
as a listing.
Tex t-ent ry Box
Use this box to enter and/or display data or text that is
specifically related to a feature or function.
Cancel Button
This button cancels the current operation.
Save Button
Selecting this button causes the selected operation or
changes to be saved to the machine memory.
Numeric Keypad
Use the numeric keypad to enter or change a numeric value
present on the various screens, such as, quantities, the value
for the X and Y coordinates, etc.
X / Y Controls
Use this control to enter or change the value for X and Y
coordinates. In some instances, the numeric keypad can also
be used.
To Next Page
