Xerox® Phaser® 3052/3260 Service Manual
System Overview
General Procedures and Information
Print Process

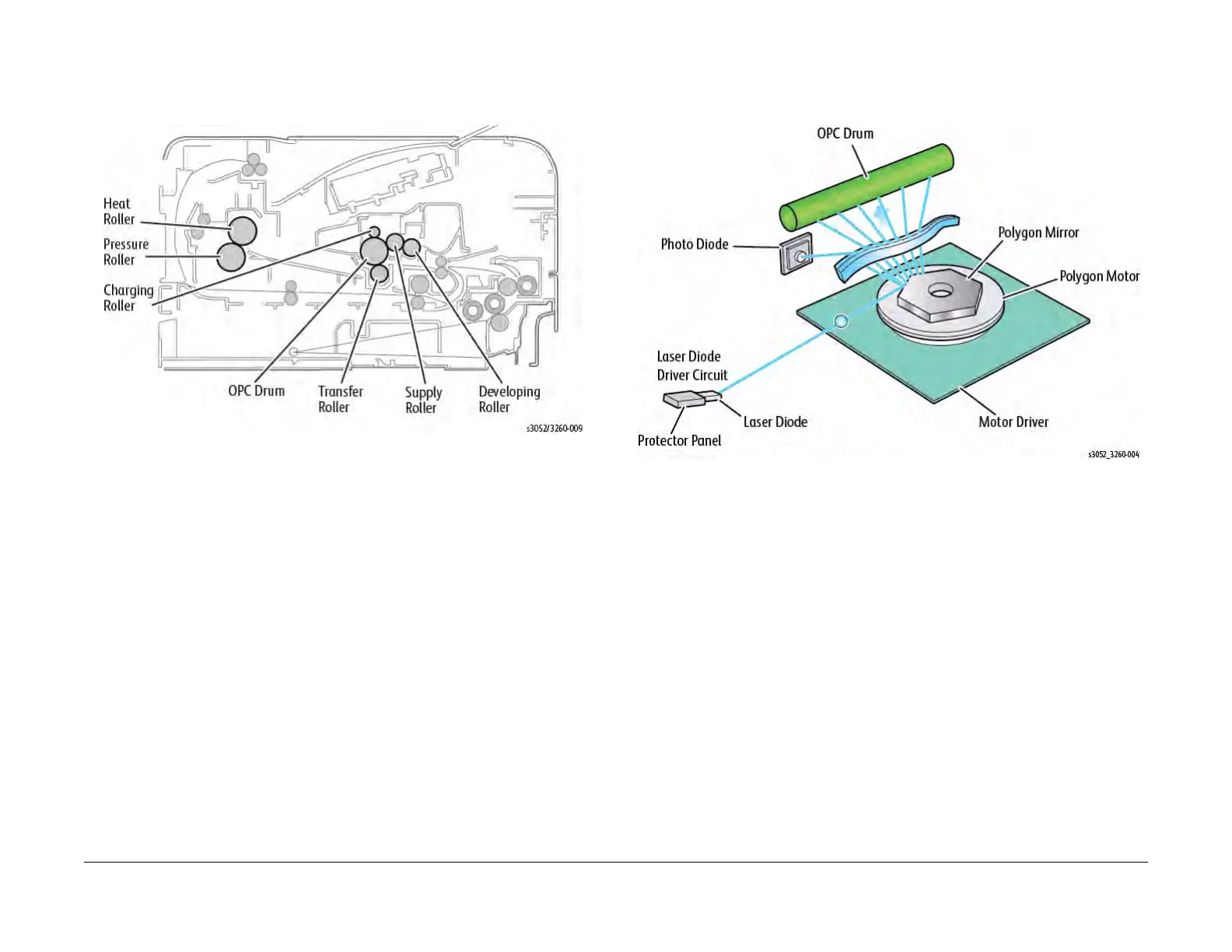

Figure 3 presents a general layout of the fusing and printing components used in the print pro-
cess.
Figure 3 Print Process
Laser Scanner Unit (LSU)
The Scanner Unit receives image data from the HVPS PWB and scans the surface of the pho-
toreceptor drum (OPC) with a laser to create a latent image.
Figure 4 Laser Scanner Unit
