Xerox® Phaser® 3052/3260 Service Manual
System Overview
General Procedures and Information
Drives
The Drive System consists of the Main (BLDC) Motor, Registration and Pick-up Clutches along
with various gears for the Drum Cartridge (OPC), Fuser, Pick-up, Registration, Feed and Exit
Rollers.

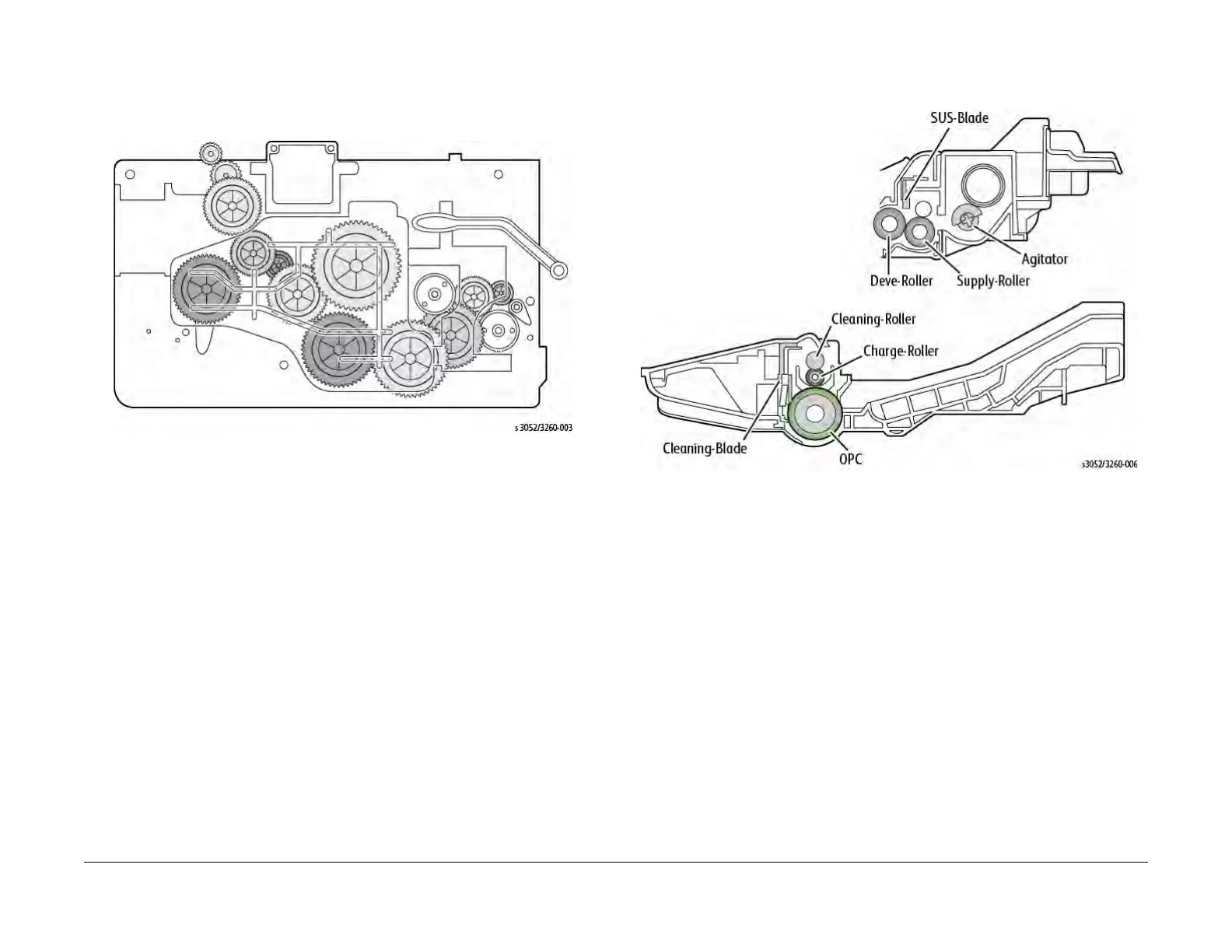

Figure 5 Drive Gears and Clutches
Toner System
The printer uses a separated toner system comprised of a Toner Cartridge and Imaging Unit.
Figure 6 Separated Toner System
