4-14
Xerox® Phaser® 3052/3260 Service Manual
REP 1.9
Repairs

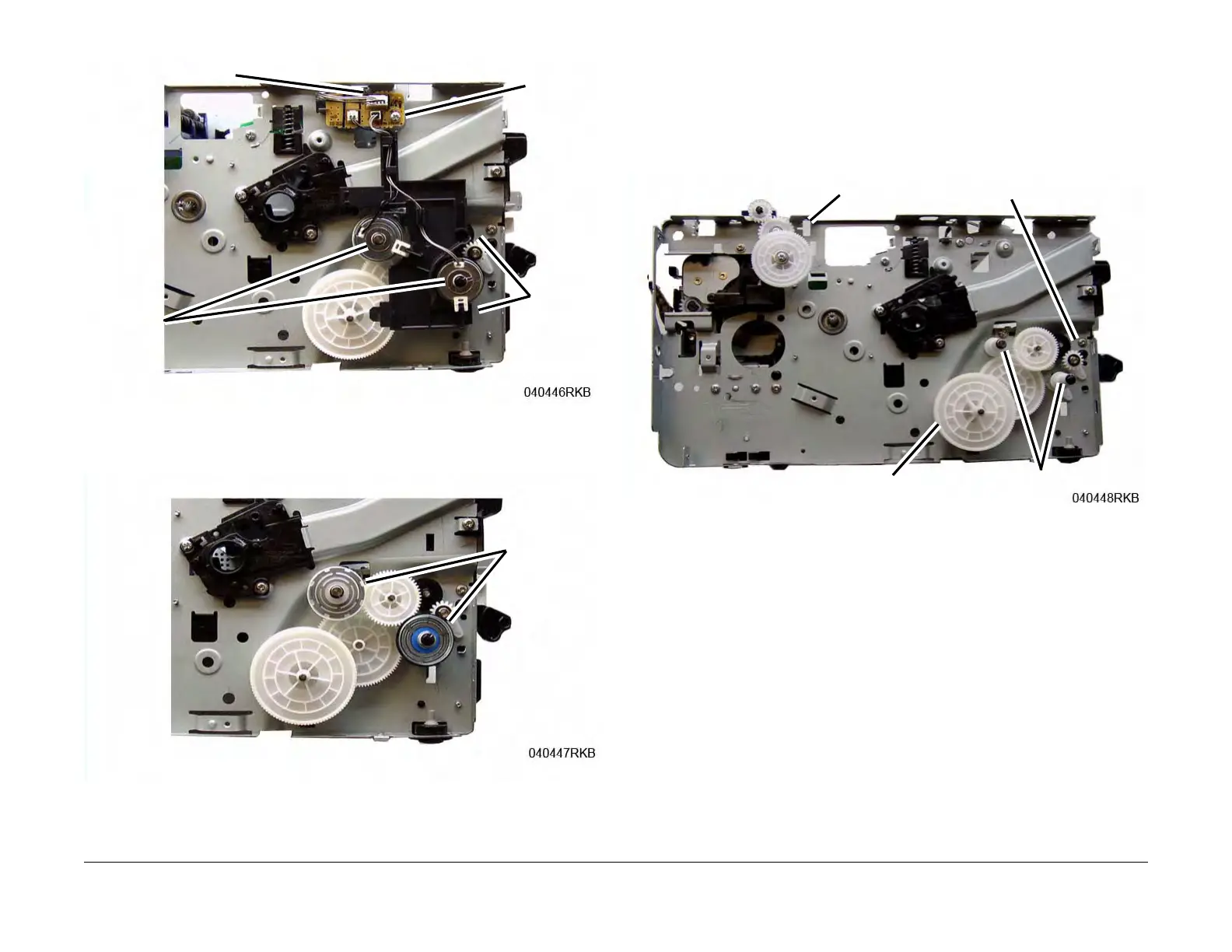

Figure 3 Feed and Registration Clutch / Feeder PWB
6. Remove the Feed and Registration Clutch Drive Gears (Figure 4).
Figure 4 Feed and Registration Clutch Drive Gears
7. Remove the following (Figure 5):
Make note of the order that the Feed and Registration Drive Gears are remove in so they
can be re-installed correctly.
a. Feed and Registration Drive Gears, there is a Snap Ring on one gear.
b. Feed and Registration Clutch Bushings (2 Snap Rings).
c. Exit Drive Gears, (2 screws and a Latch).
Figure 5 Drive Gears and Bushings
8. Remove the following from the Left Frame (Figure 6):
a. Shaft Bushings (2), release the latches.
b. LSU Support (2 screws).
c. Paper Path Module (5 screws).
Screw
CN3
Snap Rings
& Washers
Latches
Clutch Drive
Gears
Snap Ring
Exit Drive Gears
Feed & Registration Drive Gears
Clutch Bushings

Xerox Phaser 3052 Specifications

General

Print Technology	Laser
First Page Out Time	As fast as 8.5 seconds
Maximum Paper Size	8.5 x 14 in.
Connectivity	USB 2.0
Media Sizes Supported	Letter, Legal, Executive, Folio, Oficio, Statement
Print Languages	PCL6, PostScript 3
Operating System Compatibility	Windows, Mac, Linux
