Xerox® Phaser® 3052/3260 Service Manual
REP 1.9
Repairs

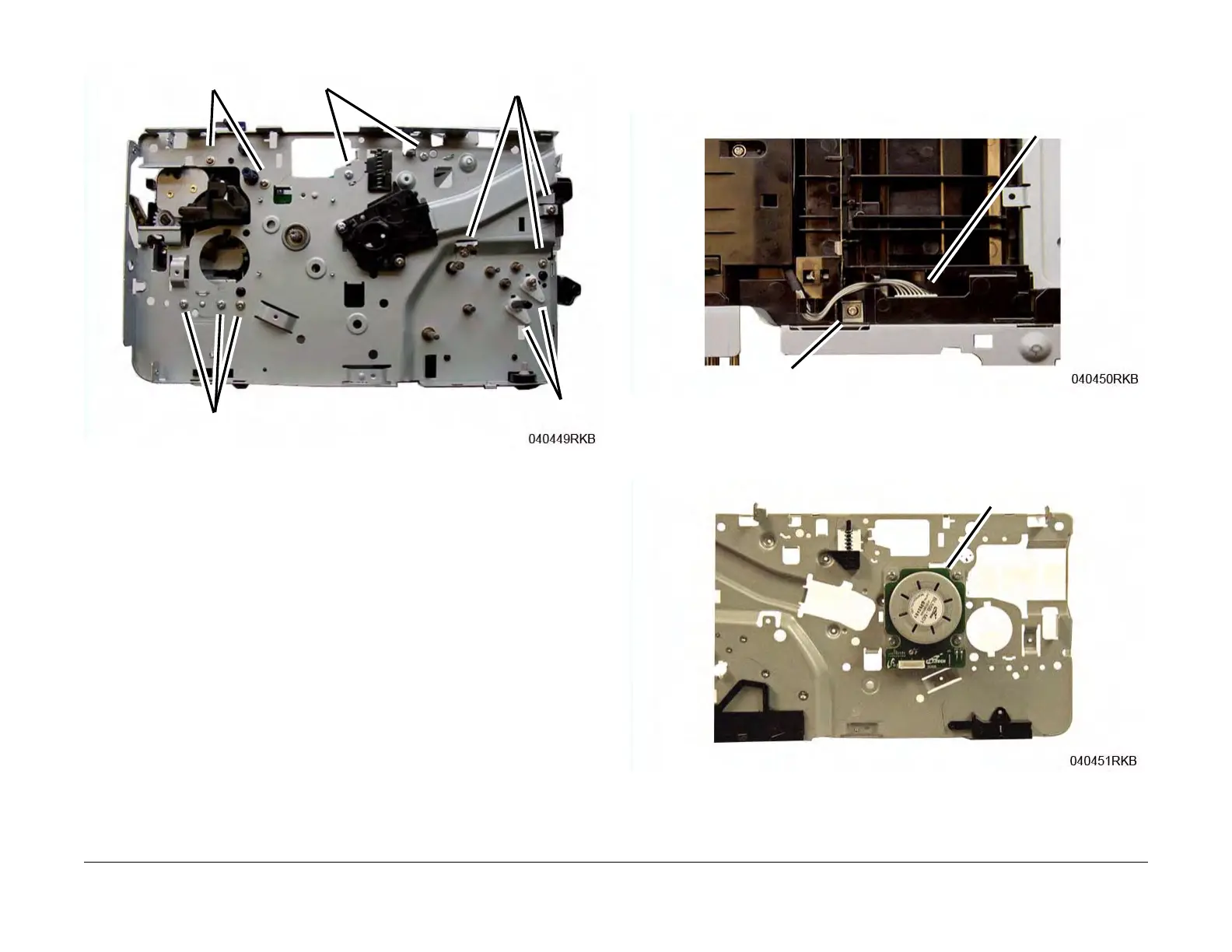

Figure 6 Frame Screw Removal
9. On the bottom of the Printer (Figure 7):
a. Disconnect the Printer Drive Motor Connector.
b. Remove the screw (1) and the Ground Clip.
Figure 7 Drive Motor Connector & Ground Clip (Bottom View)
10. Remove the Left Frame (3 screws) (Figure 6).
11. Remove the Drive Motor (4 screws) (Figure 8).
Figure 8 Drive Motor
Step 8b
Step 8c
Step 8c
Step 10
Step 8a
Connector
Screw
Drive Motor
