Xerox® Phaser® 3052/3260 Service Manual
REP 1.9
Repairs
5. Install and tighten the Frame screws from the center of the Frame:
To the Front of the printer, then to the Rear of the Printer (Figure 9).
a. Tighten the Front Paper Path Module screws (3) installed in Step 3b.
b. The ROS Support screws (2)
c. The Rear Paper Path Module screws (3)
d. Tighten all the Fuser Module Screws (2) installed in Step 3a.
6. Reinstall the Drive Gears, and Snap Ring.
Refer to (Figure 10) for correct installation the Feed and Registration Drive Gears.

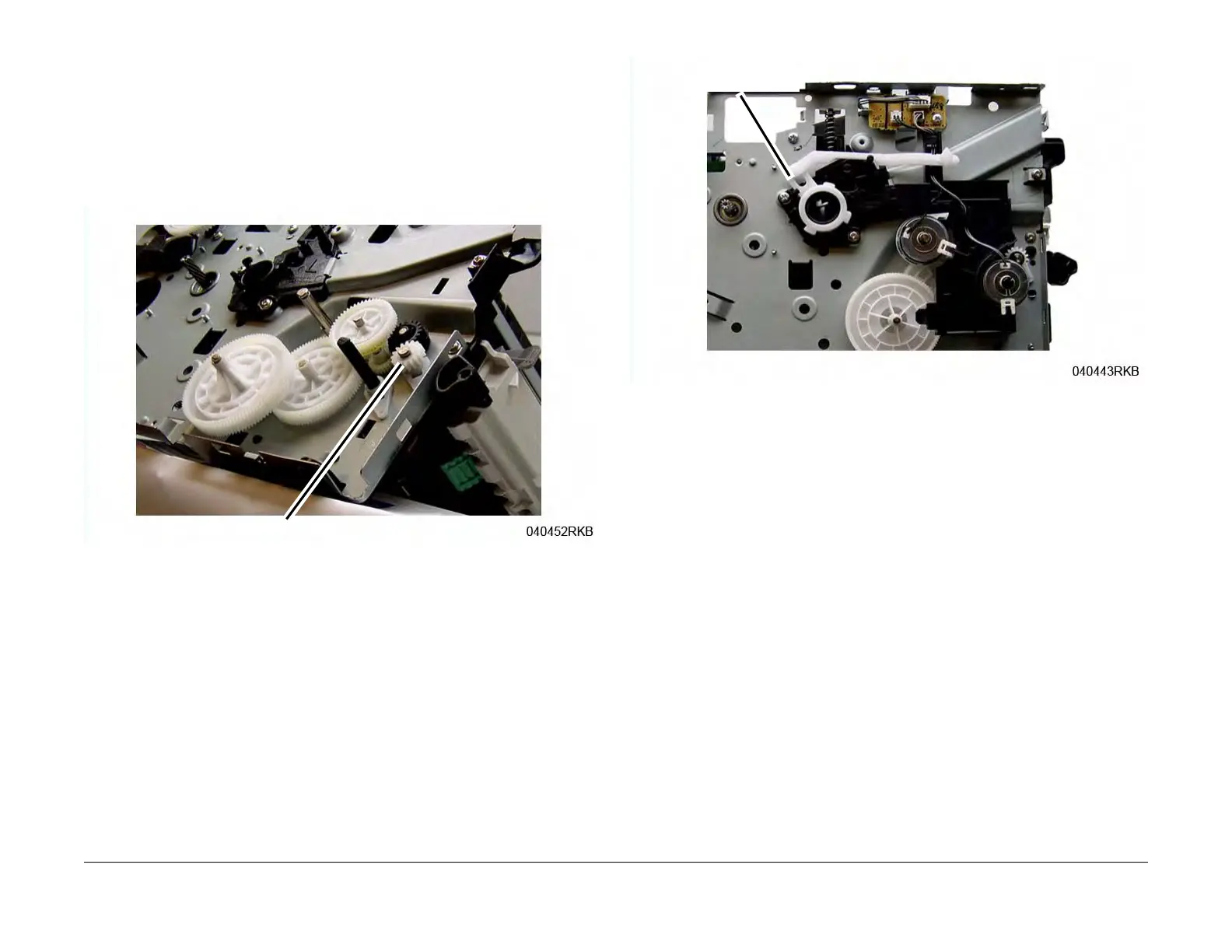

Figure 10 Feed and Registration Drive Gears
7. Install the remaining components in the reverse of removal.
When installing the Front Cover Support Arm make sure it is correctly placed on the Stop
Bracket (Figure 11).
Figure 11 Front Cover Support Arm Placement
Snap Ring
Support Arm
