Xerox® Phaser® 3052/3260 Service Manual
REP 1.25
Repairs
5. Perform the Following (Figure 3):
a. Disconnect CN3 from the paper Feed PWB, and remove the screw (1).
b. Remove the Feed and Registration Clutches, remove the Snap Rings and Washer
from the Clutches.
c. Remove the Feed and Registration Clutch Assembly and the PWB, release the
latches (2).

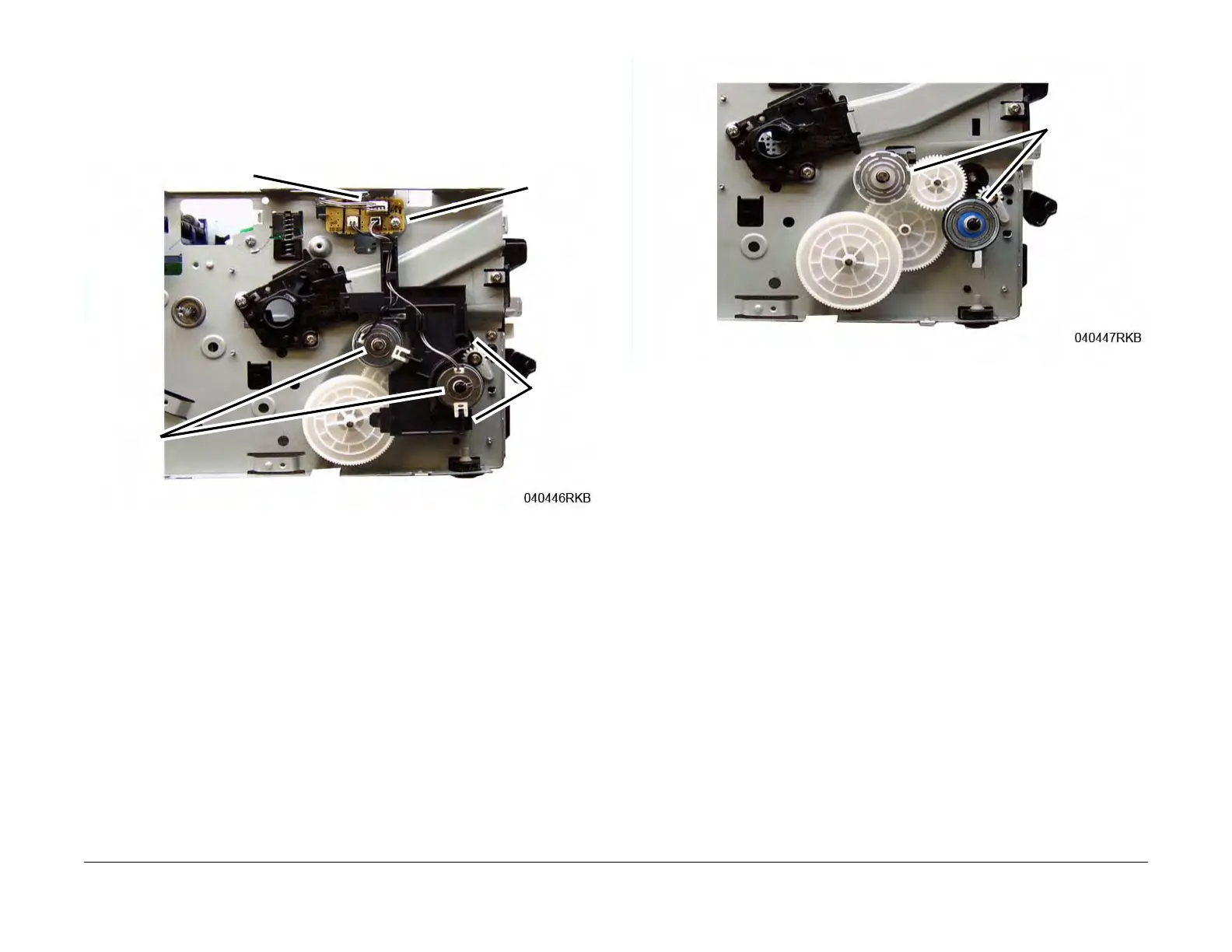

Figure 3 Feed and Registration Clutch / Paper Feed PWB
6. Remove the Feed and Registration Clutch Drive Gears (Figure 4).
Figure 4 Feed and Registration Clutch Drive Gears
Screw
CN3
Snap Rings
& Washers
Latches
Clutch Drive
Gears
