Xerox® Phaser® 3052/3260 Service Manual
REP 1.26
Repairs
15. Remove the Exit Sensor Plate screws (2) from the Right Frame (Figure 13).

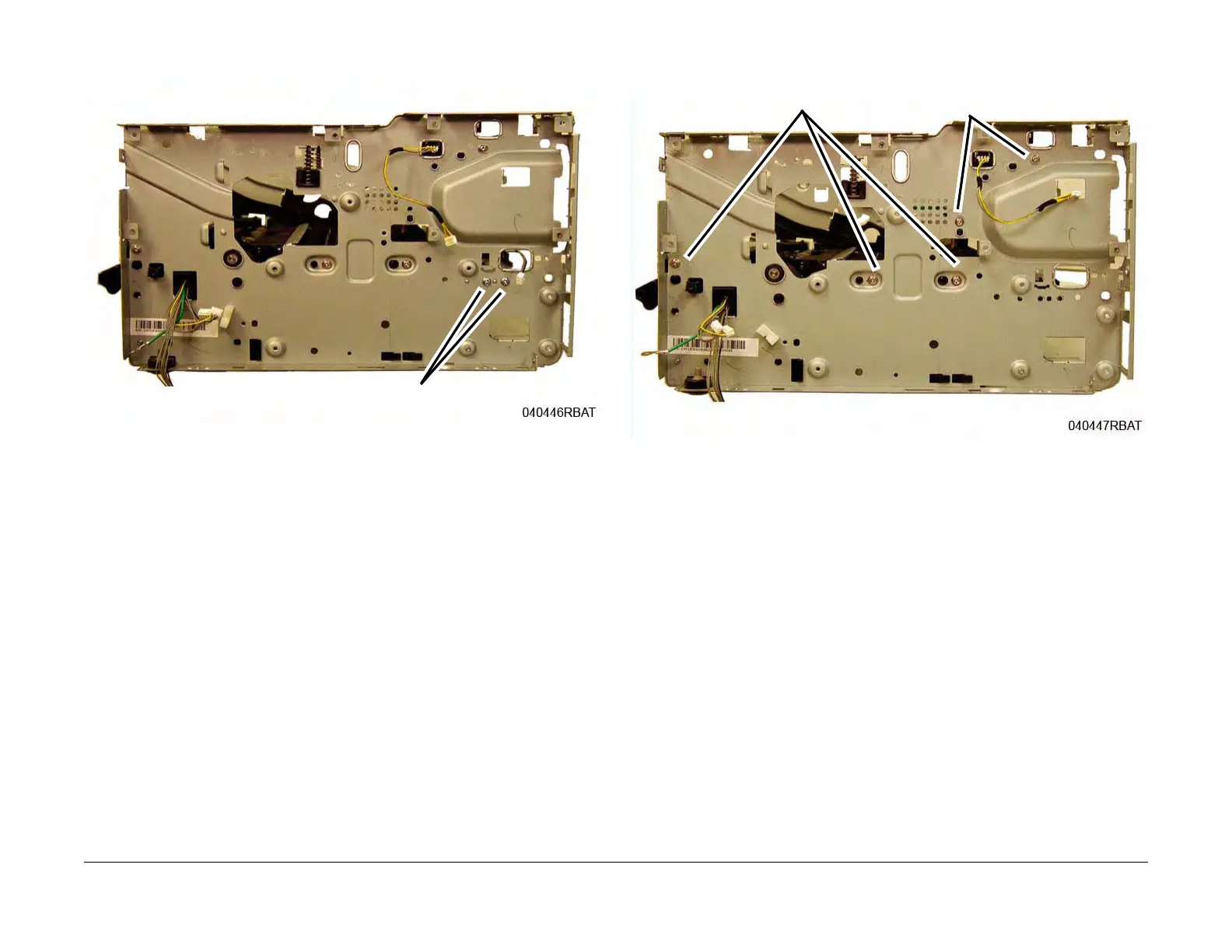

Figure 13 Exit Sensor Plate Screws
16. Remove the Right Frame Paper Path screws (3) and the Exit Assembly screw (2) (Figure
14).
Figure 14 Right Frame Screws Removal
Screws
Frame Screws
Exit Screws
