Xerox Phaser 3052

June 2014
4-43
Xerox® Phaser® 3052/3260 Service Manual
REP 1.26
Repairs
13. Remove the LSU Assembly (4 screws), 2 on each side of the printer (Figure 10, Figure
11).

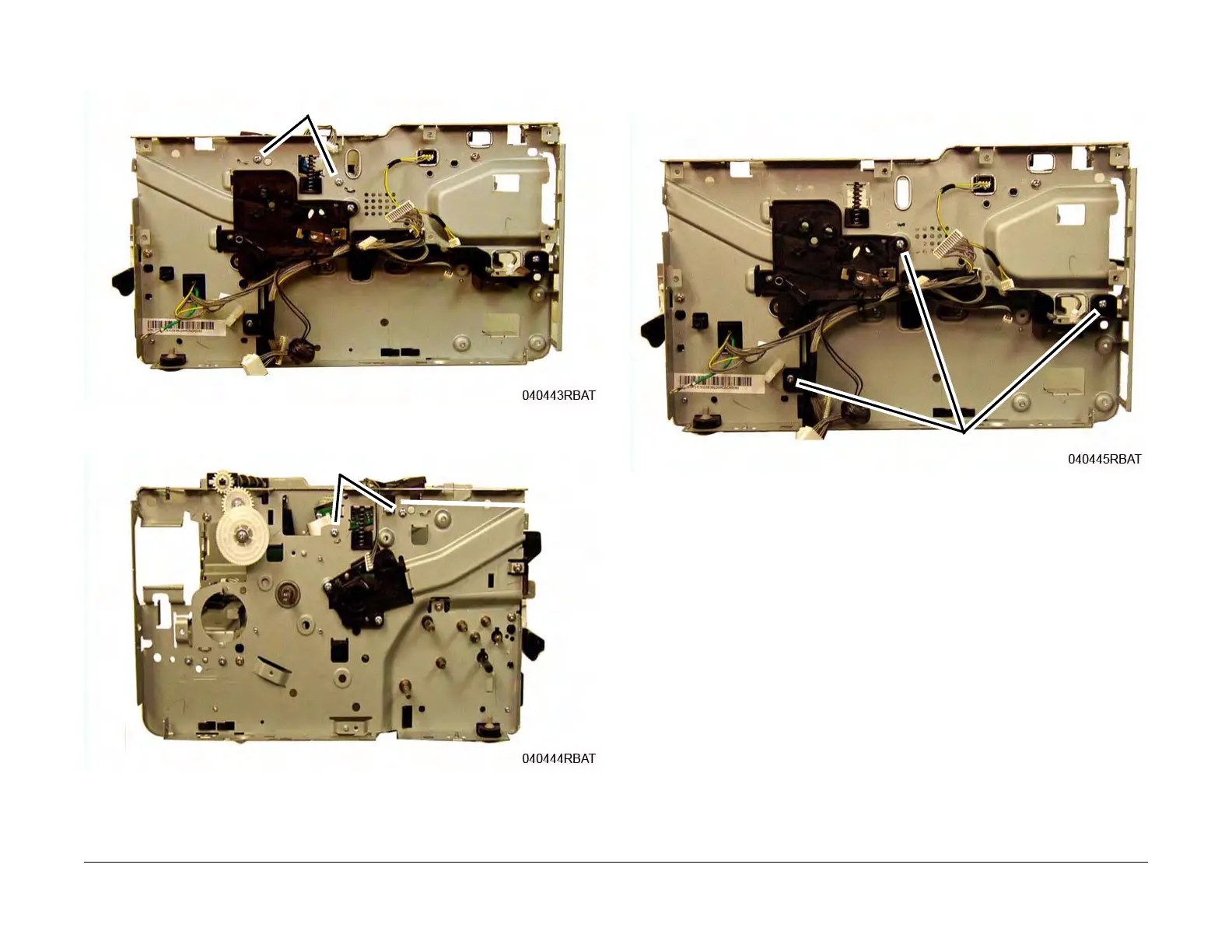

Figure 10 LSU Left Side Screws
Figure 11 LSU Right Side Screws
14. Remove the following (Figure 12):
Wire harness guide (2 screws).
High voltage contact guide (2 screws).
Figure 12 Wire Guides and HV Contact Guide
Screws
Screws
Screws
