Cleaning the Second-Side Scanning Lens Assembly
The second-side scanning lens assembly allows you to make 2-sided scans and copies with a single pass of the
original document. The assembly is on the left side of the document cover and includes a mirrored glass strip, a
metal strip, a white-plastic strip, and rollers.
Note: It is recommended that you clean all parts of the second-side scanning lens assembly regularly.
Follow the below steps to clean the second-side scanning lens assembly

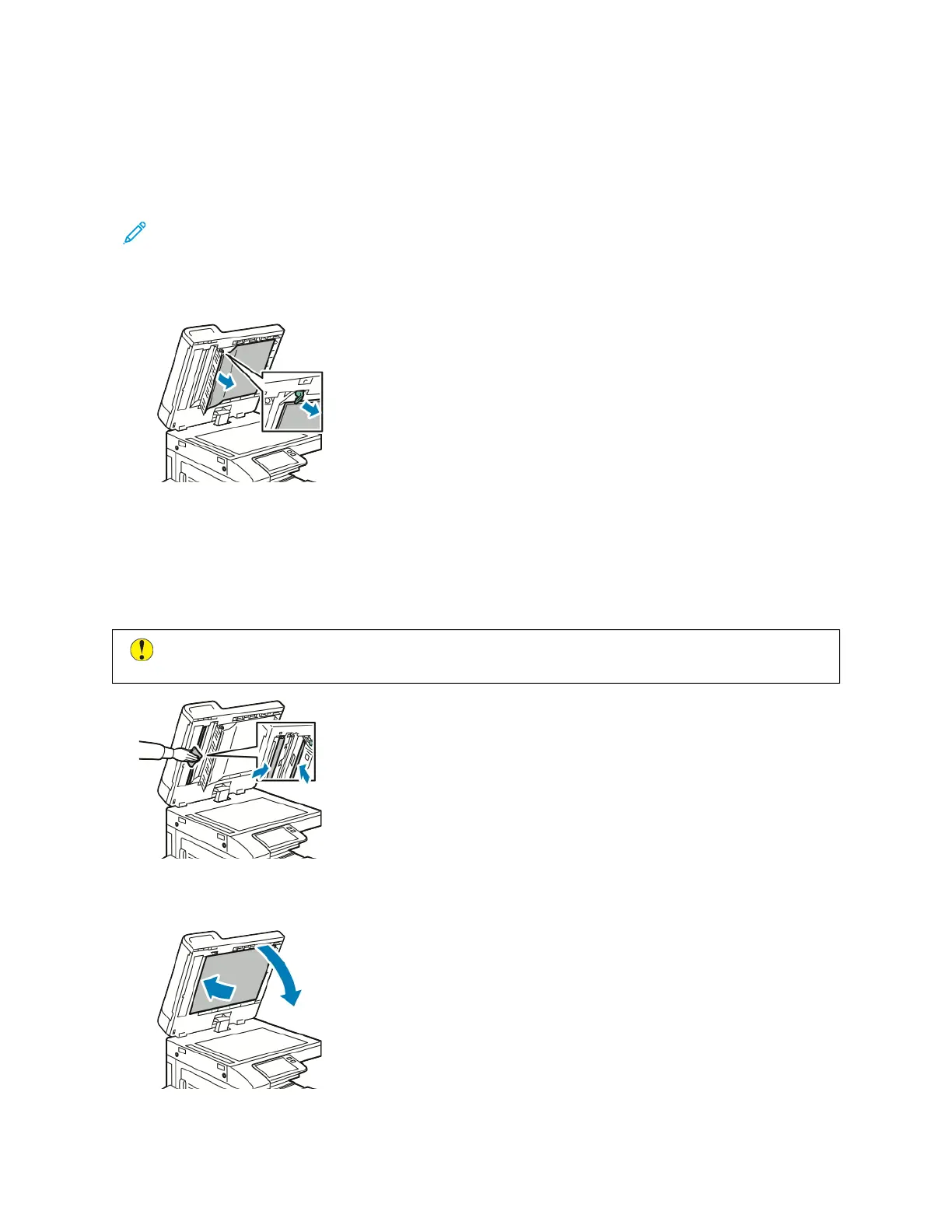

1. To access the second-side scanning lens assembly, do the following:
a. On the left side of the document cover, lower the lever.
b. Separate the left end of the document cover from the lens assembly, and continue to lower the lever.
2. Using a soft, lint-free cloth moistened with water, wipe the mirrored glass, metal strip, both sides of the white-
plastic strip, and the rollers. If dirt is difficult to remove, moisten the cloth with a small amount of neutral
detergent, then wipe the parts dry with a dry, soft cloth.
CCaauuttiioonn:: To prevent damage to the film around the mirrored glass, do not press heavily on the mirrored
glass.
3. Return the document cover to the original position, and ensure that the lever is locked in place. If you touch the
document cover, before you close the document feeder, clean the cover.
194 Xerox
®
