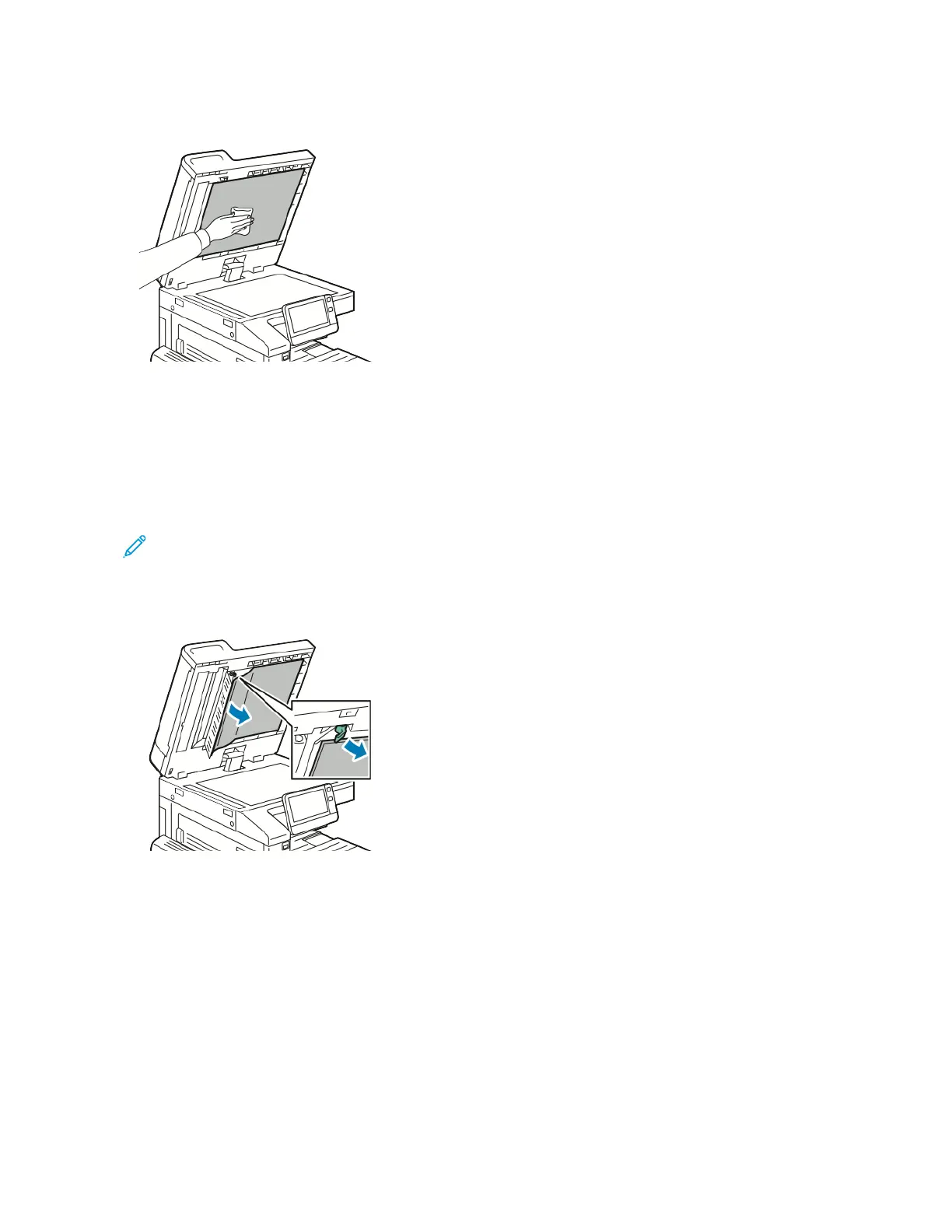

5. Wipe the white underside of the document cover until it is clean and dry.
6. Close the document cover.
Cleaning the Second-Side Scanning Lens Assembly
The second-side scanning lens assembly allows you to make 2-sided scans and copies with a single pass of the
original document. The assembly is on the left side of the document cover and includes a mirrored glass strip, a
metal strip, a white-plastic strip, and rollers.
Note: It is recommended that you clean all parts of the second-side scanning lens assembly regularly.
Follow the below steps to clean the second-side scanning lens assembly
1. To access the second-side scanning lens assembly, do the following:
a. On the left side of the document cover, lower the lever.
b. Separate the left end of the document cover from the lens assembly, and continue to lower the lever.
196
Xerox
®
VersaLink
®
C71XX Series Color Multifunction Printer User Guide
Maintenance
