Space Requirements / Service Space Envelope
Movable Configuration
Moveable installations can be used when the press is installed on a hard surface (concrete, wood, and/or with mobility plates). The following press configurations
are can be moved by one person, and is therefore considered moveable:
 MSI+press+OCT
 HCF+Press+OCT
 OHCF+Press+OCT
 Advanced HCF+Press+OCT
 HCF+Press+BR finisher
 OHCF+Press+BR Finisher
 Advanced HCF+Press+BR Finisher
 MSI+Press+IFM+Standard Finisher (with or without C/Z folder)
 MSI+Press+ Booklet Maker Finisher (with or without C/Z folder)
 HCF+Press+Standard Finisher (with or without C/Z folder)
 HCF+Press+Booklet Maker Finisher (with or without C/Z folder)
Note: Larger configurations must be considered stationary due to the amount of force required to move the press.
Service/Operational Space Chart
Service/Operational Space Stationary Moveable
Rear of Press 39.3 in / 1000 mm 10 in / 254 mm
Front of Press 37.3 in / 947.2 mm 37.3 / 947.2 mm
Side of Press 29 in / 750 mm 29 in / 750 mm
Space above press 78 in / 1981 mm 78 in / 1981 mm
Space between Press and Print Server (as required) 24 in / 610 mm 24 in / 610 mm
Service space Envelope
The dimensions shown below provide the overall service space required, including the space to the nearest obstruction. The dimensions reflect both typical and
hallway installations and are absolute minimums.

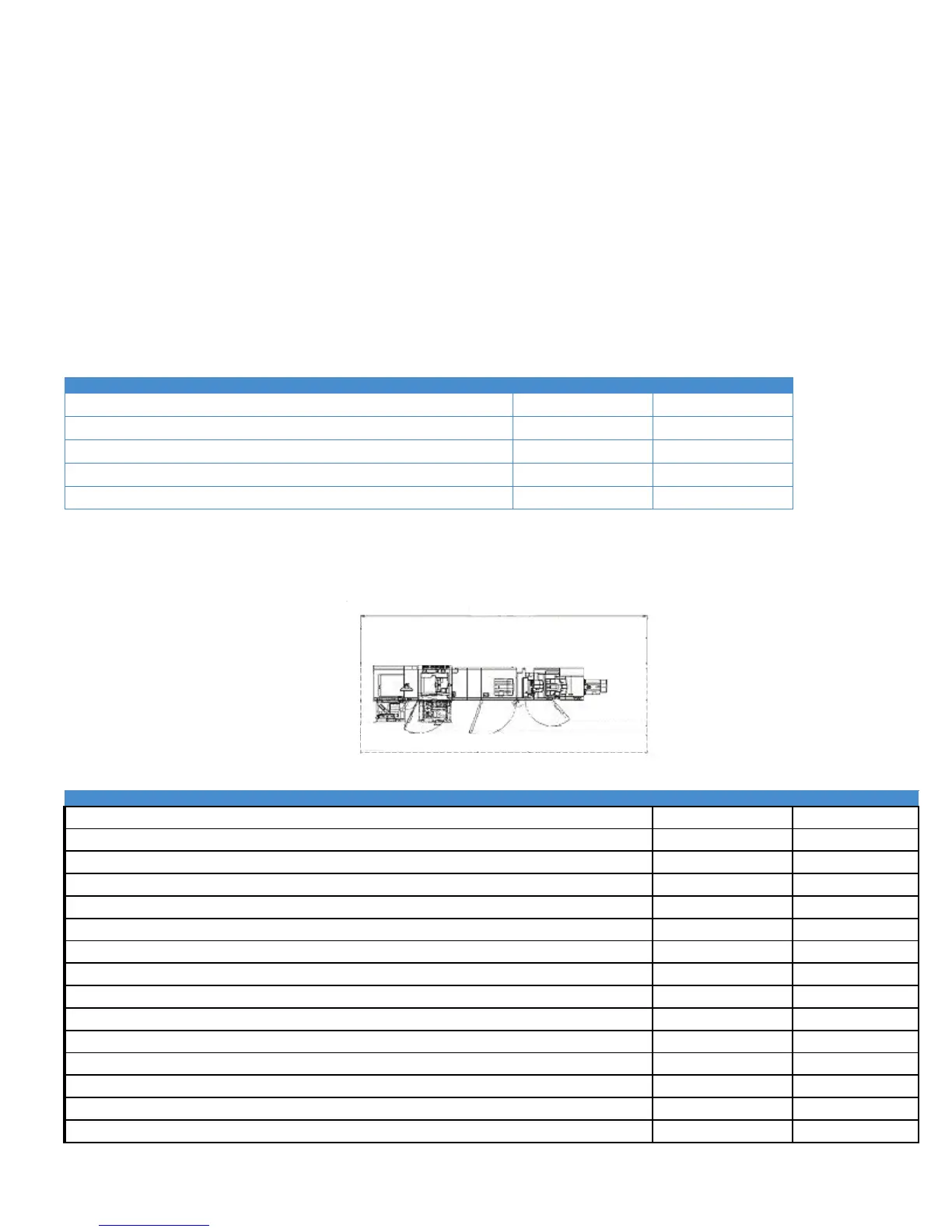

Dotted line around press graphic represents service space envelope
Configuration Width Depth
Press + OCT 115 in / 2914 mm 136 in / 3431 mm
PRESS + BR Finisher 132 in / 3349 mm 136 in / 3431 mm
PRESS + BR Booklet Finisher 135 in / 3408 mm 136 in / 3431 mm
PRESS + IFM + Standard Finisher 154 in / 3904 mm 136 in / 3431 mm
PRESS + IFM + Booklet Finisher 154 in / 3909 mm 136 in / 3431 mm
PRESS + IFM + Booklet Finisher + SFT 185 in / 4690 mm 136 in / 3431 mm
PRESS + IFM + Booklet Finisher + SFT + 2-Knife Trimmer 284 in / 6190 mm 136 in / 3431 mm
PRESS + IFM + Standard Finisher Plus 166 in / 4209 mm 136 in / 3431 mm
PRESS + IFM + Standard Finisher w/C/Z Folder 162 in / 4104 mm 136 in / 3431 mm
PRESS + IFM + Booklet Finisher w/ C/Z Folder 162 in / 4109 mm 136 in / 3431 mm
PRESS + IFM + Booklet Finisher w/ C/Z Folder + SFT 193 in / 4890 mm 136 in / 3431 mm
PRESS + IFM + Booklet Finisher w/ C/Z Folder + SFT + 2-Knife Trimmer 252 in / 6390 mm 136 in / 3431 mm
PRESS + IFM + Standard Finisher Plus w/ C/Z Folder 174 in / 4409 mm 136 in / 3431 mm
PRESS + IFM + HCS 144 in / 3659 mm 136 in / 3431 mm
PRESS + IFM + HCS + Standard Finisher 186 in / 4709 mm 136 in / 3431 mm
