Versant® 80 Press
Customer Expectation and Installation Guide Xerox Confidential 16

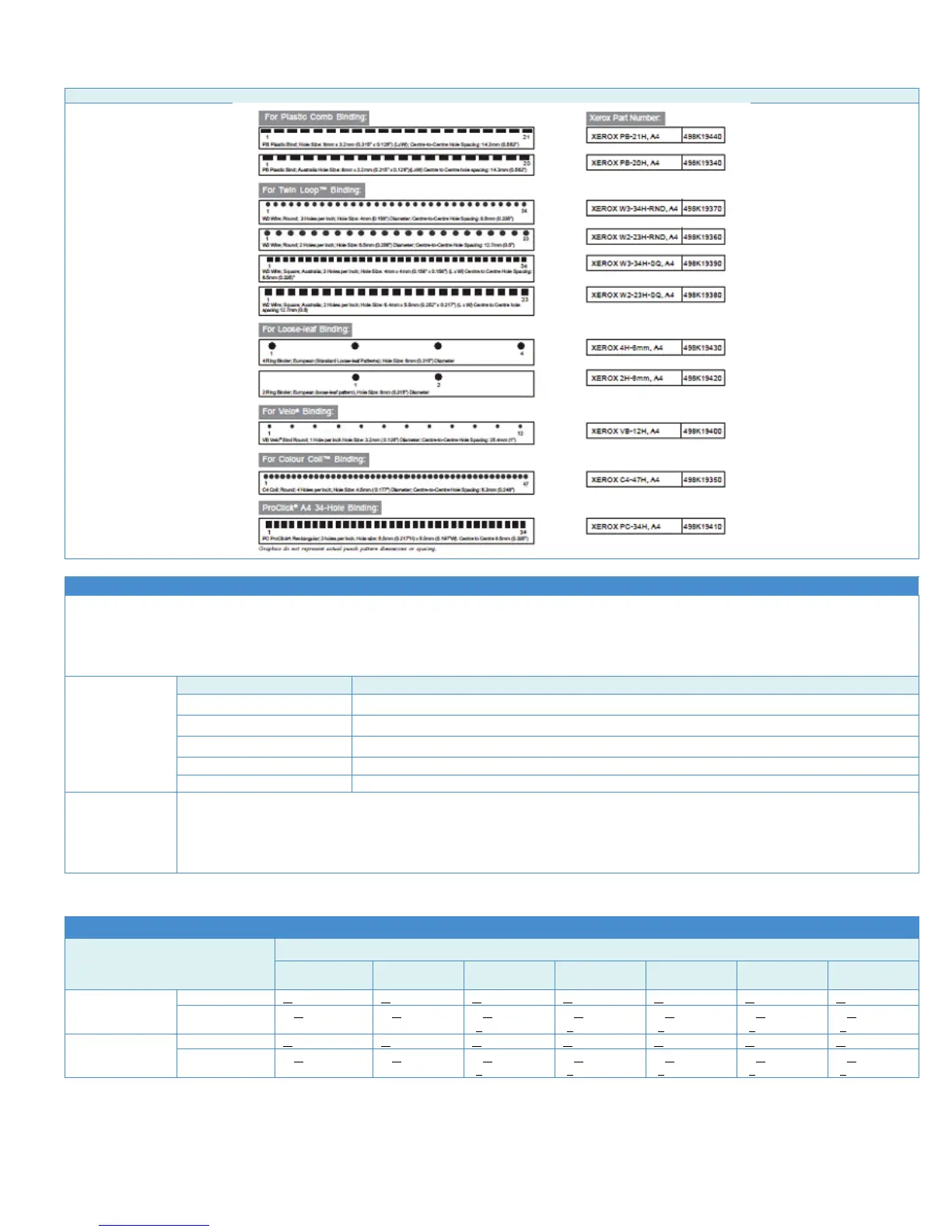

A4 Punch Dies
High Capacity Stacker (HCS) Tray
The HCS is designed for long production runs.
 Up to 5,000 sheets offsetting output stack tray with movable cart to move to off line finishing.
 500 sheet top tray
 Sample Prints are additional prints directed to the top tray for inspection. Samples are not produced by redirecting sheets from the Stack to the Top Tray;
therefore the contents in the Stack Tray are complete.
HCS
Specifications
Feature Specification (with centerline paper)
Stacker Tray Capacity 5,000 sheets
Top Tray Capacity 500 sheets
Maximum Stack Weight 70KG (154 lb.)
Maximum Paper Size 330 mm x 488 mm (13 x 19.2 in)
Power requirement Refer to Electrical Requirements for Optional Devices
f
or in
f
ormation.
HCS Limitations
 The HCS is subject to stack weight limitations, and settings have been implemented to prevent damage to the unit caused by an
excessively heavy stack. Please refer to this chart for approximate stack sizes for sheets larger than 8.5 x 11 in/A4.
 Stack quality may degrade and jams may increase with 64-106 gsm coated paper stocks
 Mixed stock sizes can be sent to the HCS. However, the HCS generally should be unloaded between jobs that utilize different stock sizes
to prevent stack quality problems such as paper misalignment or stack integrity.
Stacker Tray Specifications
Stacker Tray Capacity by weight and paper finish
Paper type and weight Paper Size
Smallest size
203 x 182 Min
A4 /
8.5 x 11 in
B4 /
8.5 x 14 in
A3 /
11 x 17 in
12 x 18 in SRA3 13 x 19.2 in
Uncoated
52-350 gsm
Sheets < 5,000 < 5,000 < 2,300 < 2,300 < 2,300 < 2,300 < 2,300
Stack Height H < 570 mm
(22.44 in)
H < 570
mm
(22.44 in)
H < 460
mm
(<18.11 in)
H < 460 mm
(<18.11 in)
H < 460 mm
(<18.11 in)
H < 460 mm
(<18.11 in)
H < 460 mm
(<18.11 in)
Coated
64-350 gsm
Sheets < 5,000 < 5,000 < 3,400 < 3,400 < 3,400 < 3,400 < 3,400
Stack Height H < 570 mm
(22.44 in)
H < 570
mm
(22.44 in)
H < 412
mm
(<16.22 in)
H < 412 mm
(<16.22 in)
H < 412 mm
(<16.22 in)
H < 412 mm
(<16.22 in)
H < 412 mm
(<16.22 in)
