NOTE

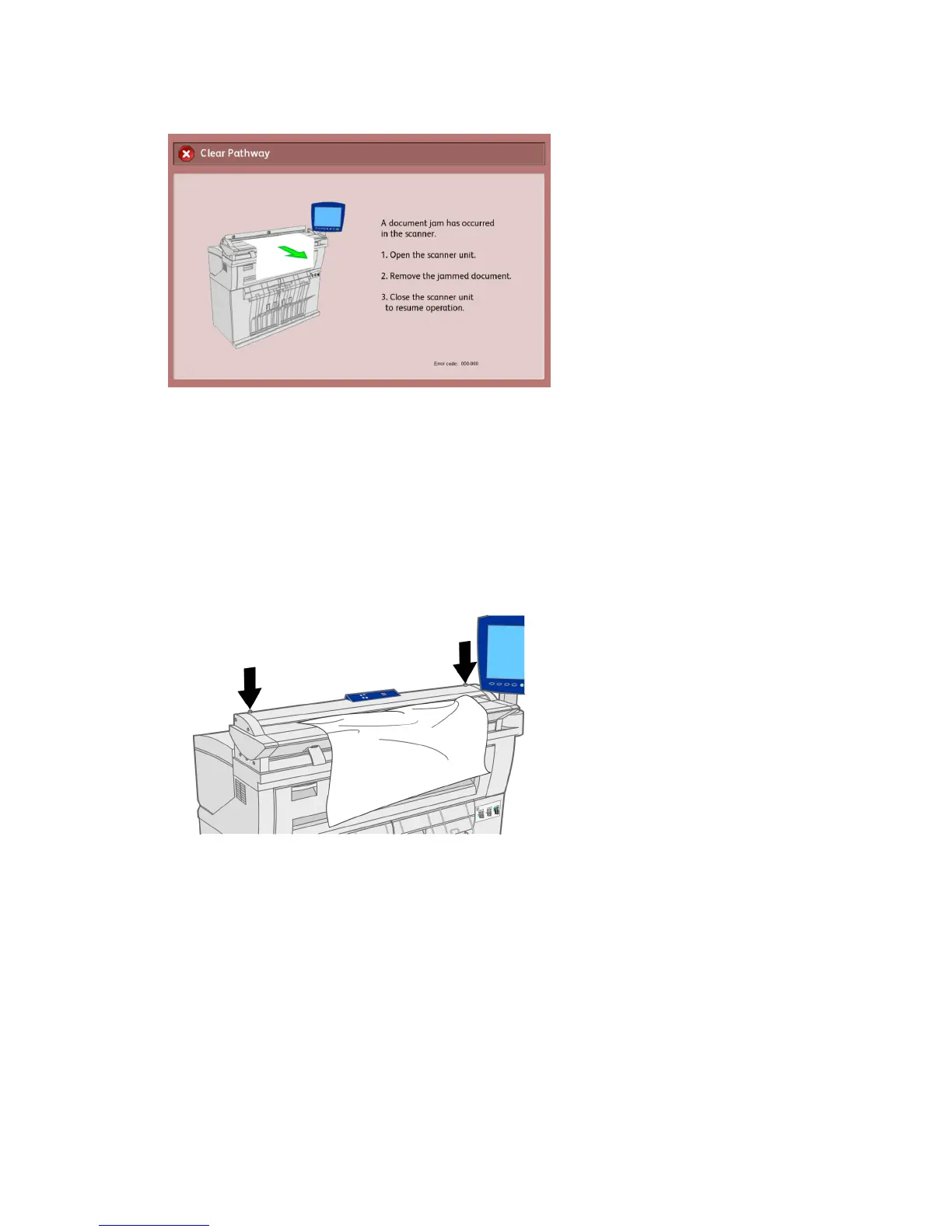

If a Scanner jam message persists after you remove the document, check the
Scanner Exit Tray for a document. A message remains on the screen until you
remove it.
The Scanner has a single part lid that opens toward the back of the Scanner. Opening
the Scanner Lid provides access to the document jam.
1. Push down on the two buttons on each side of the Scanner Lid.
2. With both hands, lift the lid up and away from you. The lid can support itself in the
fully open position.
NOTE
Opening the Scanner Lid reveals the Main Roller and the five optical Contact
Image Sensors (CIS). See the Maintenance chapter for details on cleaning the
Main Roller and Sensors.
8-15
Xerox
®
Wide Format 6604/6605 Solution
™
User Guide
Problem Solving
