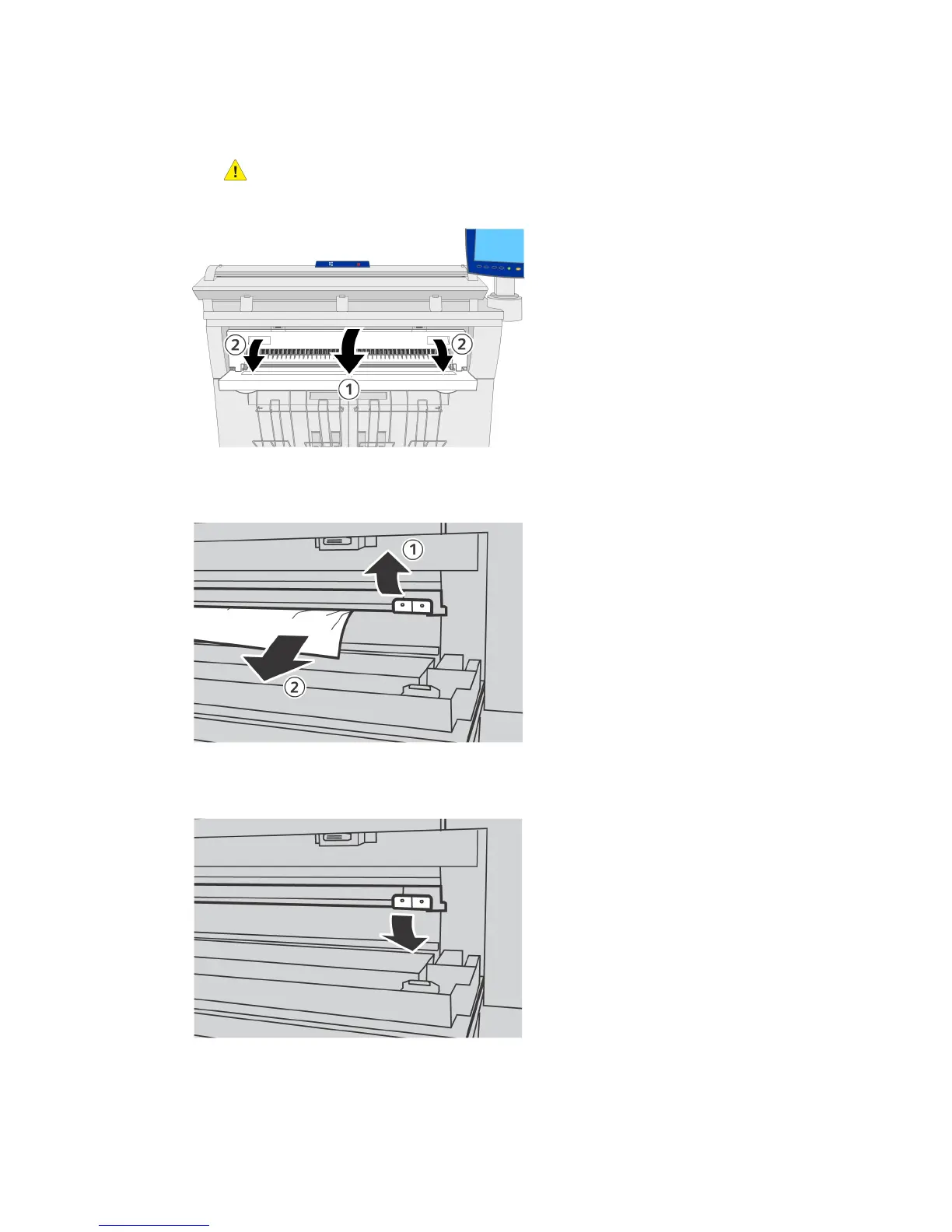

3. When the jammed media is not visible from the opening, open the Manual Feed-in
Shelf and the Fuser Cover.
WARNING
Never touch a labeled area on hot or sharp parts. You can get burned or injured.
4. Lift up the green lever to hold the baffle, and remove the jammed media through
the output port.
5. Lower the Baffle.
Xerox
®
Wide Format 6604/6605 Solution
™
8-26
User Guide
Problem Solving
