Xerox WorkCentre 3220 User Guide

72 _Troubleshooting

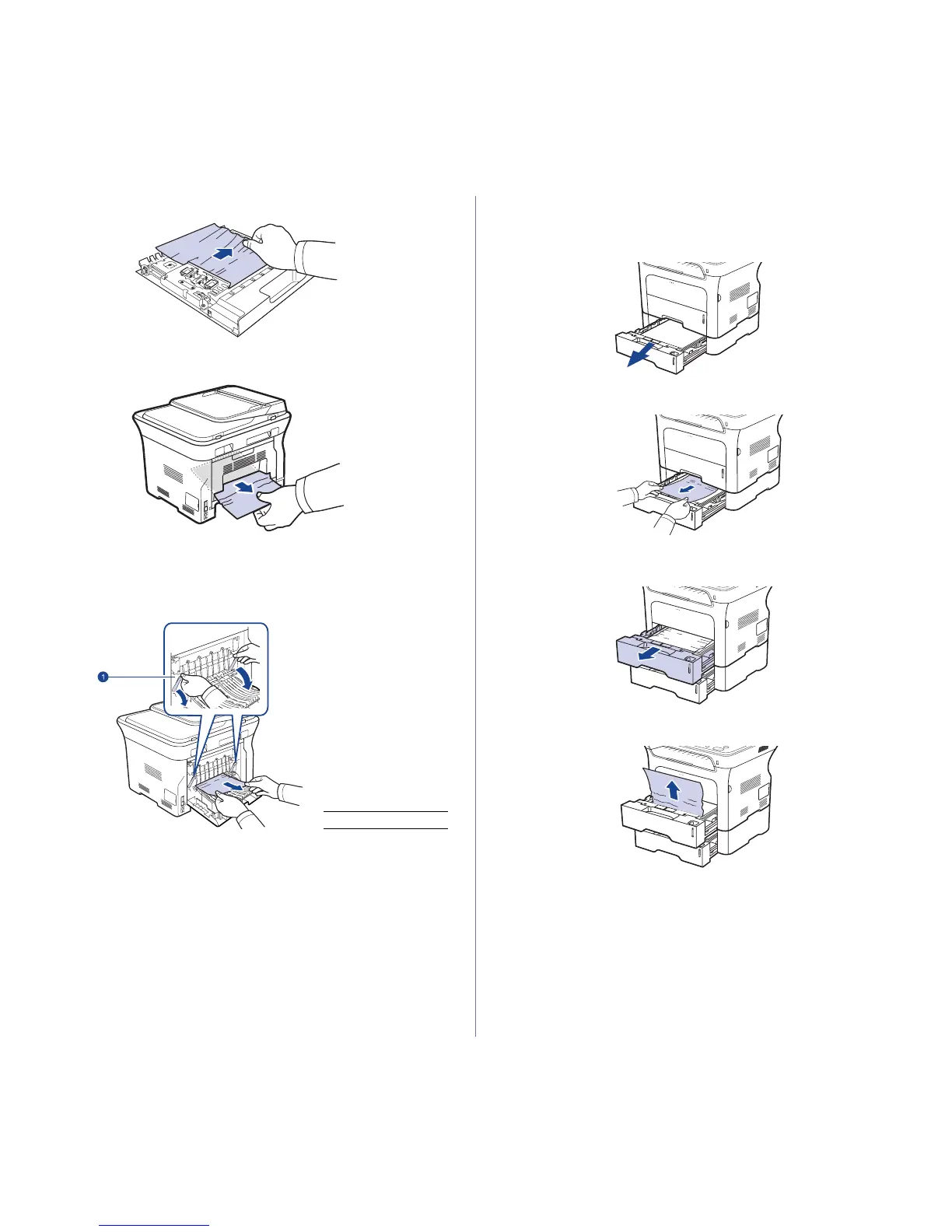

2. Remove the jammed paper from the duplex unit.
If the paper does not come out with the duplex unit, remove the paper
from the bottom of the machine.
If you cannot find the jammed paper, or if there is any resistance
removing the paper, stop pulling and go to step 3.
3. Open the rear cover.
4. Pull the guide rear on each side down and remove the paper. Return the
guide rear to its original position.
5. Close the rear cover. Printing automatically resumes.
In the optional tray
If paper is jammed in the optional Tray, follow the next steps to release the
jammed paper.
1. Pull the optional tray open.
2. If you see the jammed paper, remove the paper from the machine by
gently pulling it straight out as shown below.
If you cannot find the jammed paper, or if there is any resistance
removing the paper, stop pulling and go to step 3.
3. Pull the tray half.
4. Remove the jammed paper by gently pulling the paper straight up and
out.
5. Insert the trays back into the machine. Printing automatically resumes.
1 Guide rear

Xerox WorkCentre 3220 Specifications

General

Print Technology	Laser
Print Resolution	Up to 600 x 600 dpi
Copy Resolution	Up to 600 x 600 dpi
Scan Resolution	Up to 4800 x 4800 dpi (enhanced)
Fax Transmission Speed	33.6 Kbps
Standard Paper Capacity	250 sheets
ADF Capacity	50 sheets
Monthly Duty Cycle	Up to 30, 000 pages
Functions	Print, Copy, Scan, Fax
Memory	64 MB
Duplex Printing	Manual
Operating System Compatibility	Windows, Mac OS, Linux
Connectivity	USB 2.0, Ethernet
Maximum Paper Size	8.5 x 14 in (Legal)
