2 DocuMate 152 Scanner User’s Guide

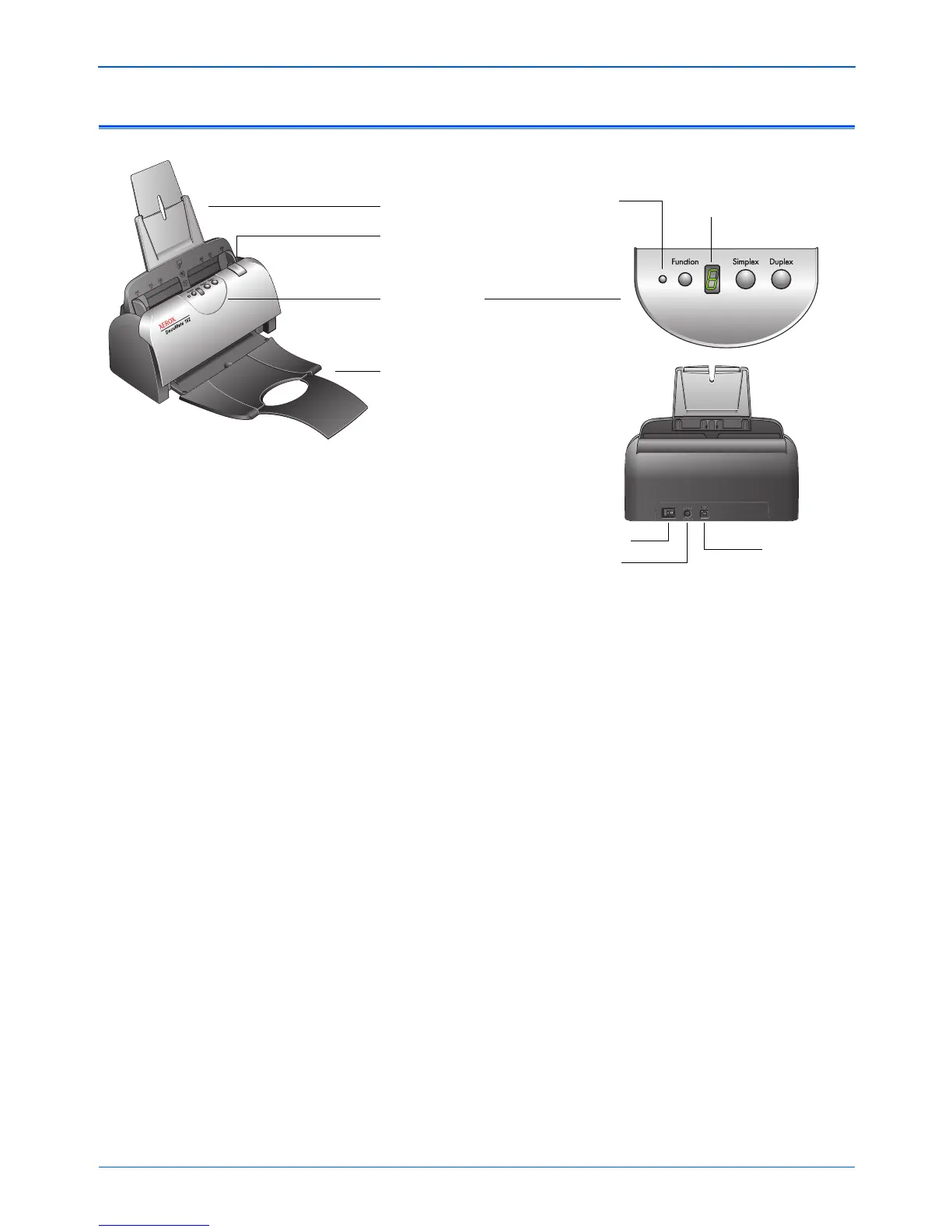

The Xerox DocuMate 152 Scanner
Input tray—Holds documents in place. The paper guide on the
input tray adjusts to fit the document width.
ADF cover release—Opens the cover on the ADF.
Control panel—Buttons to start the scanning.
Output tray—Holds documents after being scanned through the
Automatic Document Feeder (ADF).
Status light—Shows the scanner’s status. A steady green light
indicates the scanner is available to scan or is scanning. A rapidly
flashing green light indicates the scanner is preparing to scan.
Refer to the Troubleshooting section for additional details.
Function button—Selects the scan setting for the Simplex and
Duplex buttons. Press to cycle through the settings.
LED Number—Shows the current scan setting for the Simplex and
Duplex scanning buttons. A scan setting includes resolution, file
type, brightness, color or black and white, destination, and so on.
Duplex button—Press to scan a two-sided document.
Simplex button—Press to scan a one-sided document.
Power switch—On/Off power switch.
Power jack—Connects the power cord to the scanner.
Universal Serial Bus (USB) port—Connects the scanner to the
computer.
Input Tray
Output tray
ADF cover release
Power switch
USB port
Power jack
Status light LED Number
Control panel
