FusionServer 1288H V6 Server
Technical White Paper
5 Hardware Description
2022-06-25
49
Drive No.
Drive Number Identified
by the iBMC
Drive Number Identified
by the RAID Controller
5
5
5
6
6
6
Note
7
7
7
Note
8
8
-
9
9
-
Note: If the slot is configured with a SAS/SATA drive, the RAID controller card can
manage the drive and allocate a number to the drive.
⚫
10 x 2.5" NVMe drive configuration
Corresponds to 10 x 2.5" drive NVMe configuration 1 in 5.5.1 Drive Configurations .

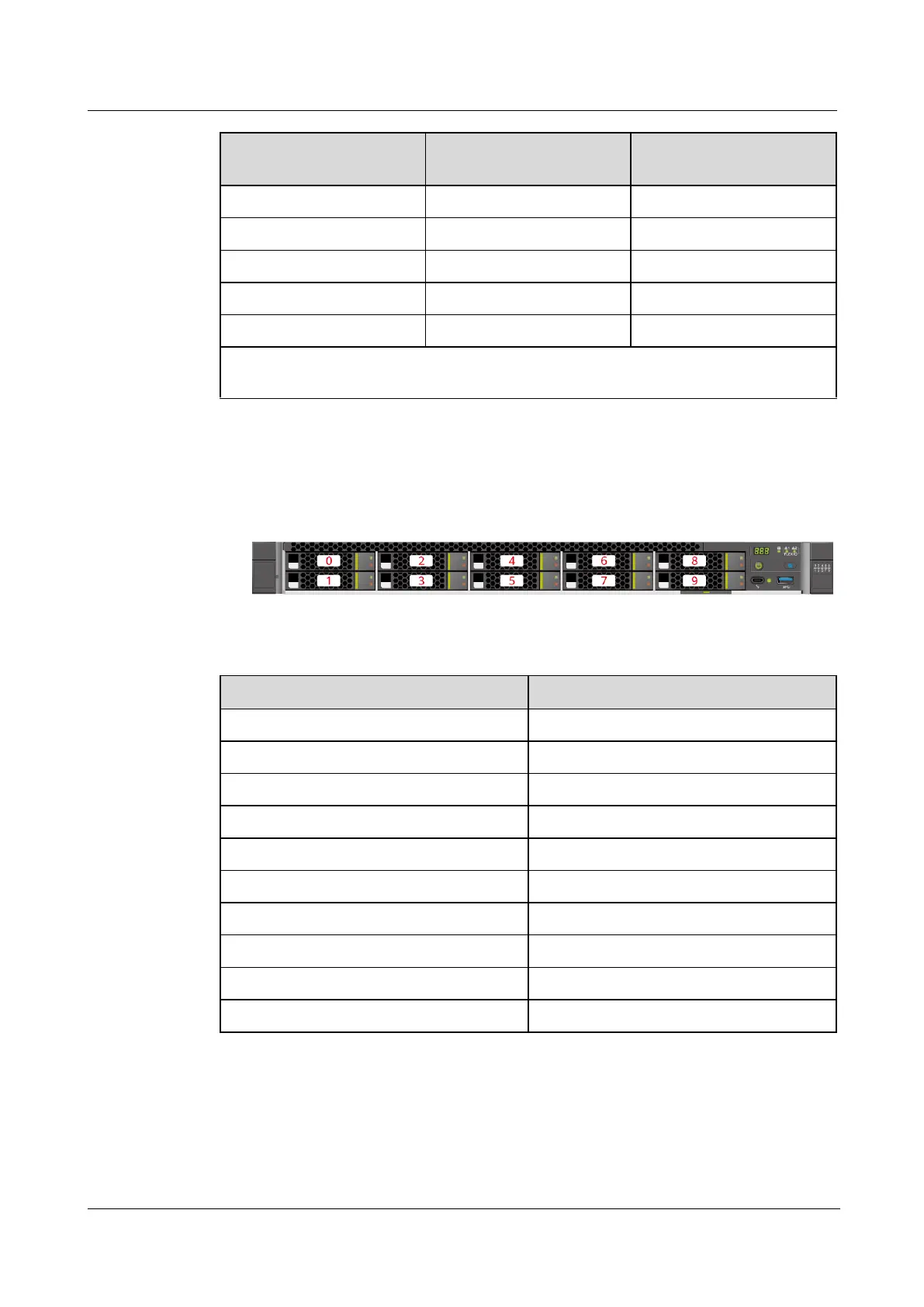

Figure 5-31 Slot Numbers
Table 5-19 Slot numbers
Drive No.
Drive Number Identified by the iBMC
0
0
1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
⚫
10 x 2.5" NVMe drive configuration
Corresponds to 10 x 2.5" NVMe drive configuration 2 and 10 x 2.5" NVMe drive
configuration 3 in 5.5.1 Drive Configurations .
