5 Hardware Description
2022-06-25
57
PCIe
Slot
CPU
PCIe
Standa
rds
Conne
ctor
Width
Bus
Width
Port
No.
Root
Port
(B/D/F
)
Device
(B/D/F
)
Slot
Size
⚫
The maximum power supply of each PCIe slot is 75 W.
5.8 PSUs
⚫
The server supports one or two PSUs.
⚫
The server supports AC or DC PSUs.
⚫
The PSUs are hot-swappable.
⚫
The server supports two PSUs in 1+1 redundancy.
⚫
PSUs of the same part number (P/N code) must be used in a server.
⚫
The PSUs are protected against short circuit. Double-pole fuse is provided for the PSUs
with dual input live wires.
⚫
If the DC power supply is used, purchase the DC power supply that meets the
requirements of the safety standards or the DC power supply that has passed the CCC
certification.
⚫
Contact your local sales representative or see "Search Parts" in the Compatibility
Checker to determine the components to be used.

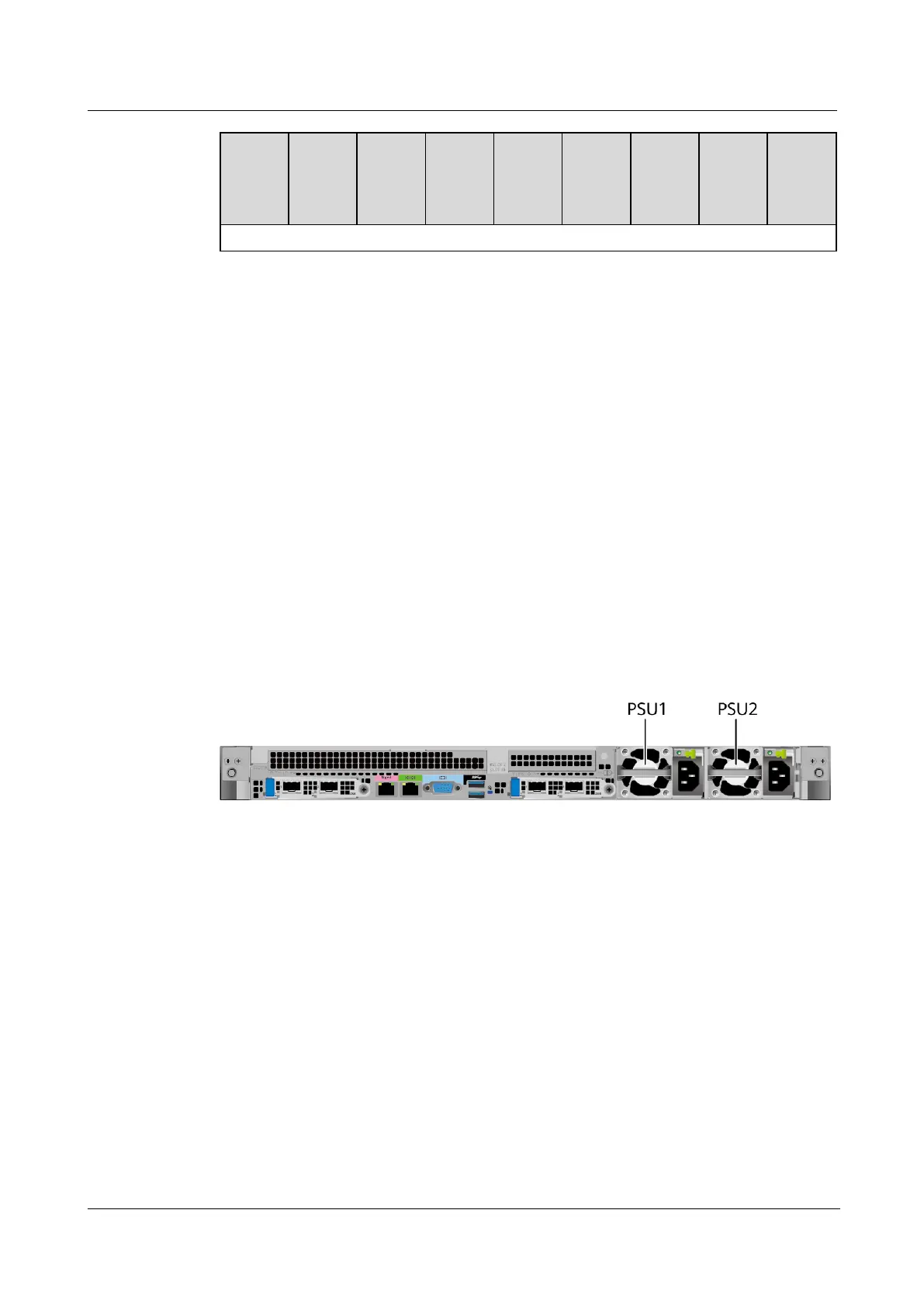

Figure 5-39 Positions of PSUs
5.9 Fan Modules
⚫
The server supports seven fan modules.
⚫
The fan modules are hot-swappable.
⚫
N+1 redundancy is supported. That is, the server can work properly when a single fan
fails.
⚫
The fan speed can be adjusted.
⚫
Fan modules of the same part number (P/N code) must be used in a server.
