5.10 Boards
5.10.1 Mainboard

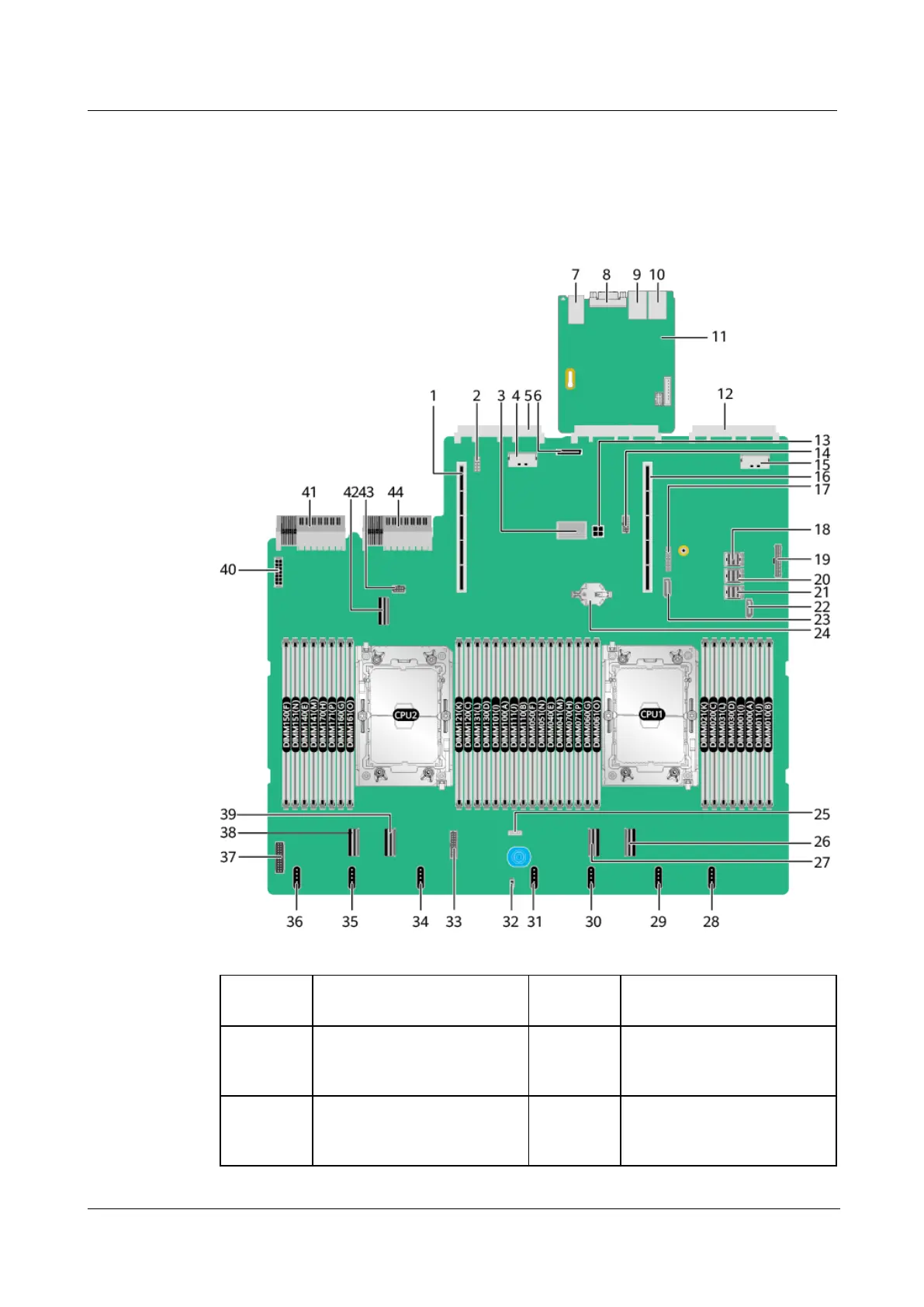

Figure 5-41 1288H V6 mainboard
1
PCIe riser 2 slot (PCIE
RISER2/J51)
2
Debugging pin (J103)
3
Screw-in RAID controller
card connector (RAID
CARD/J86)
4
LP slimline 7 connector for
OCP 3.0 network adapter 2
(SLIMLINE7/J31)
5
OCP 3.0 network adapter 2
connector (OCP2
CONN/J109)
6
Built-in storage expansion
port (SD CARD/J87)
