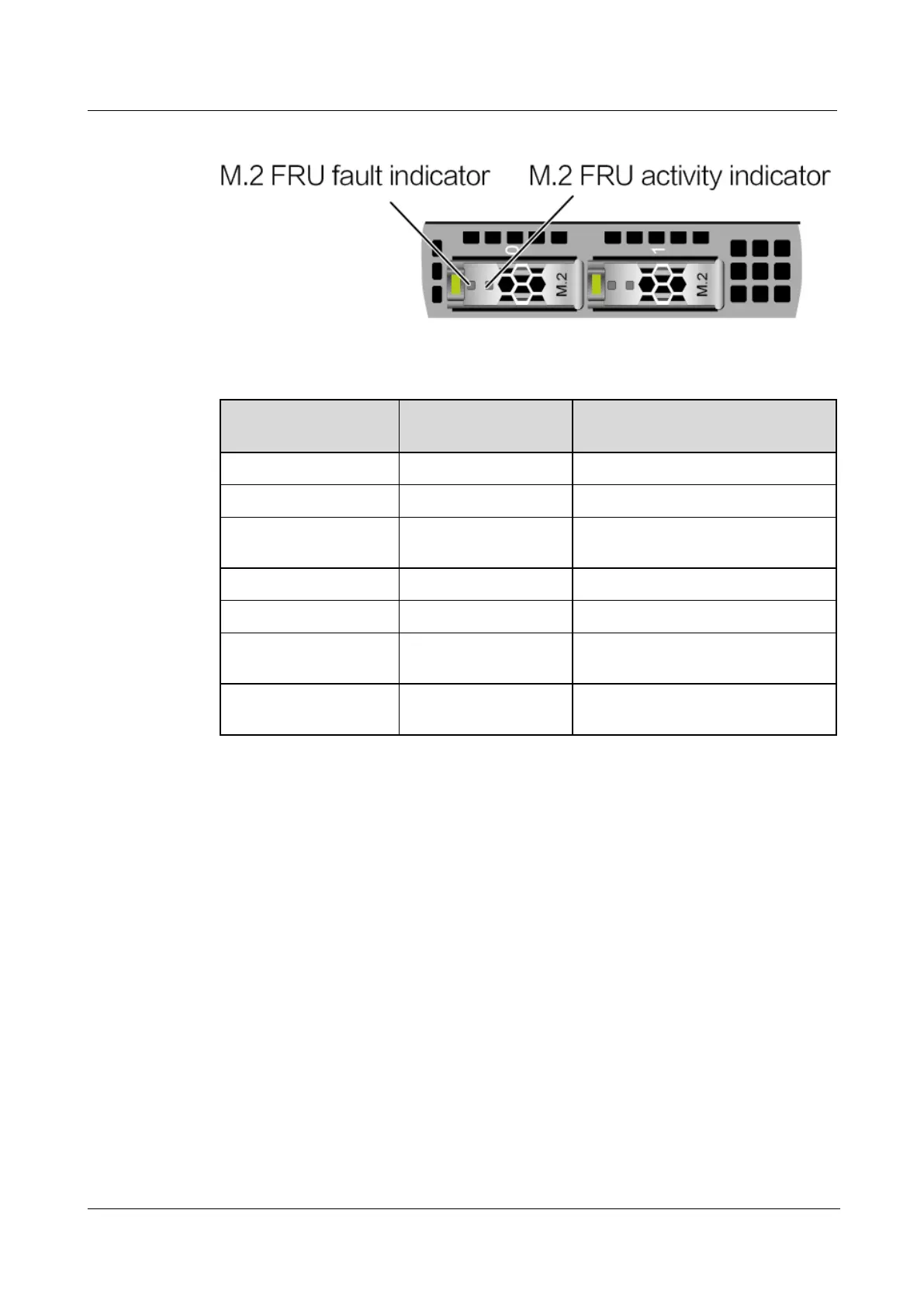

Figure 5-35 M.2 FRU indicators
Table 5-24 M.2 FRU indicators
M.2 FRU Active
Indicator (Green)
M.2 FRU Fault
Indicator (Yellow)
Description
Off
Off
The M.2 FRU is not detected.
Steady on
Off
The M.2 FRU is inactive.
Blink
Off
The M.2 FRU is in the read/write or
synchronization state.
Steady on
Blink
The M.2 FRU is being located.
Blink
Blink
The RAID array is being rebuilt.
Off
Steady on
The M.2 FRU cannot be detected or
is faulty.
Steady on
Steady on
The M.2 FRU RAID status is
abnormal.
5.5.4 RAID Controller Card
The RAID controller card supports RAID configuration, RAID level migration, and drive
roaming.
⚫
Contact your local sales representative or see "Search Parts" in the Compatibility
Checker to determine the components to be used.
⚫
For details about the RAID controller card, see V6 Server RAID Controller Card User
Guide.
5.6 Network
5.6.1 OCP 3.0 Network Adapter
OCP 3.0 network adapters provide network expansion capabilities.
⚫
The FlexIO slot supports the OCP 3.0 network adapter, which can be configured as
required.
