FusionServer 1288H V6 Server
Technical White Paper
5 Hardware Description
2022-06-25
61
BP/J27)
a: Reserved and unavailable currently.
5.10.2 Drive Backplane
Front Drive Backplane
⚫
4 x 3.5" drive pass-through backplane
Configure this backplane in 4 x 3.5" drive pass-through configuration 1, 4 x 3.5" drive
pass-through configuration 2, and 4 x 3.5" drive pass-through configuration 3 in 5.5.1
Drive Configurations .

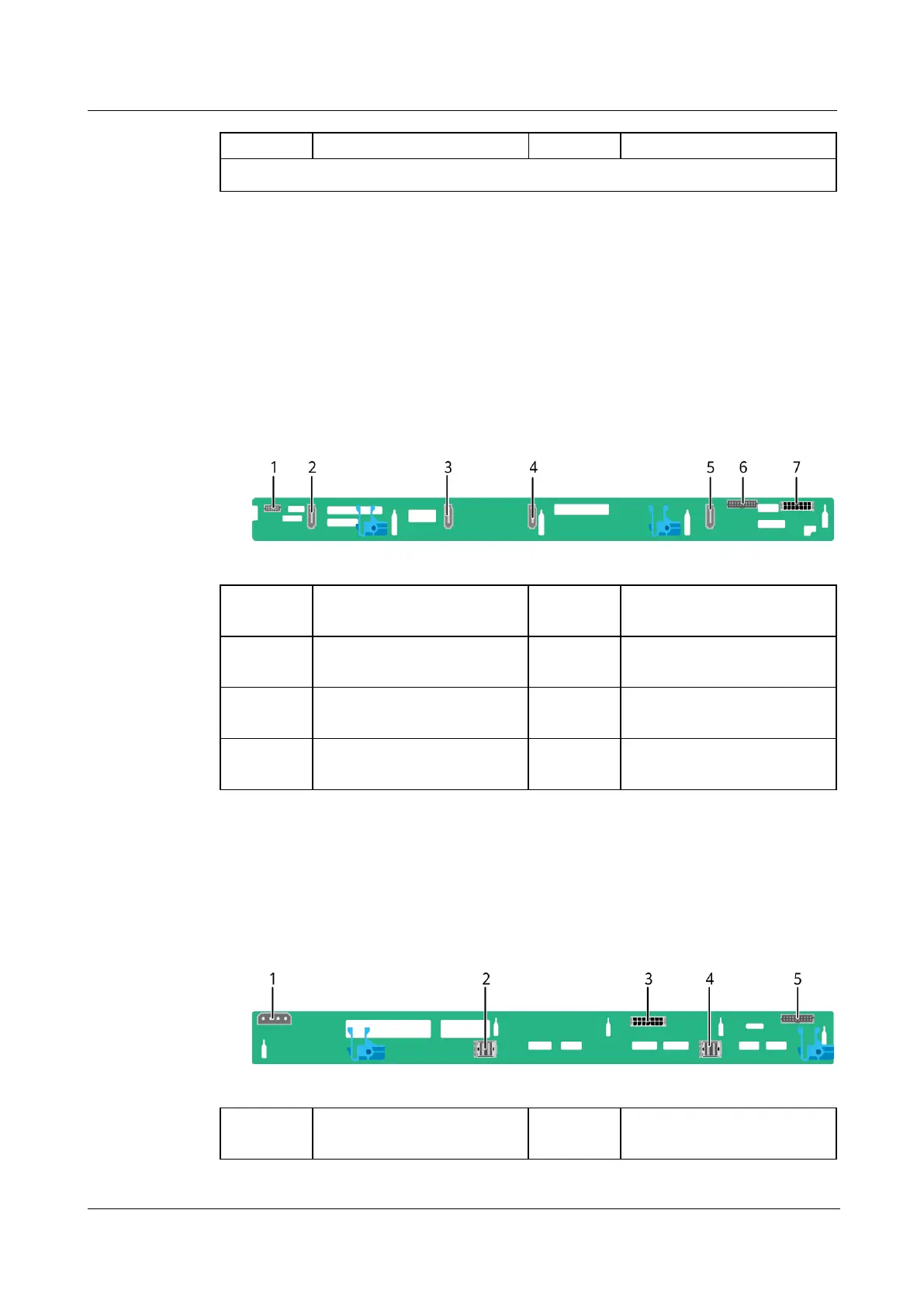

Figure 5-42 4 x 3.5" drive pass-through backplane
1
Backplane indicator signal
cable connector (SGPIO/J6)
2
SAS3 signal connector
(PORT3/J5)
3
SAS2 signal connector
(PORT2/J4)
4
SAS1 signal connector
(PORT1/J3)
5
SAS0 signal connector
(PORT0/J2)
6
Backplane signal cable
connector (HDD_BP/J1)
7
Backplane power connector
(HDD POWER/J24)
-
-
⚫
8 x 2.5" drive pass-through backplane
Configure this backplane in 8 x 2.5" drive pass-through configuration 1, 8 x 2.5" drive
pass-through configuration 2, and 8 x 2.5" drive pass-through configuration 3 in 5.5.1
Drive Configurations .
Figure 5-43 8 x 2.5" drive pass-through backplane
1
Built-in DVD drive connector
(DVD_POWER/J11)
2
Mini-SAS HD connector
(PORT B/J29)
