5 Hardware Description
2022-06-25
62
3
Backplane power connector
(HDD POWER/J24)
4
Mini-SAS HD connector
(PORT A/J28)
5
Backplane signal cable
connector (HDD_BP/J1)
-
-
⚫
10 x 2.5" drive pass-through backplane
Configure this backplane in 10 x 2.5" drive pass-through configuration 1, 10 x 2.5" drive
pass-through configuration 2, 10 x 2.5" drive pass-through configuration 3, 10 x 2.5"
drive pass-through configuration 4, and 10 x 2.5" drive pass-through configuration 5 in
5.5.1 Drive Configurations .

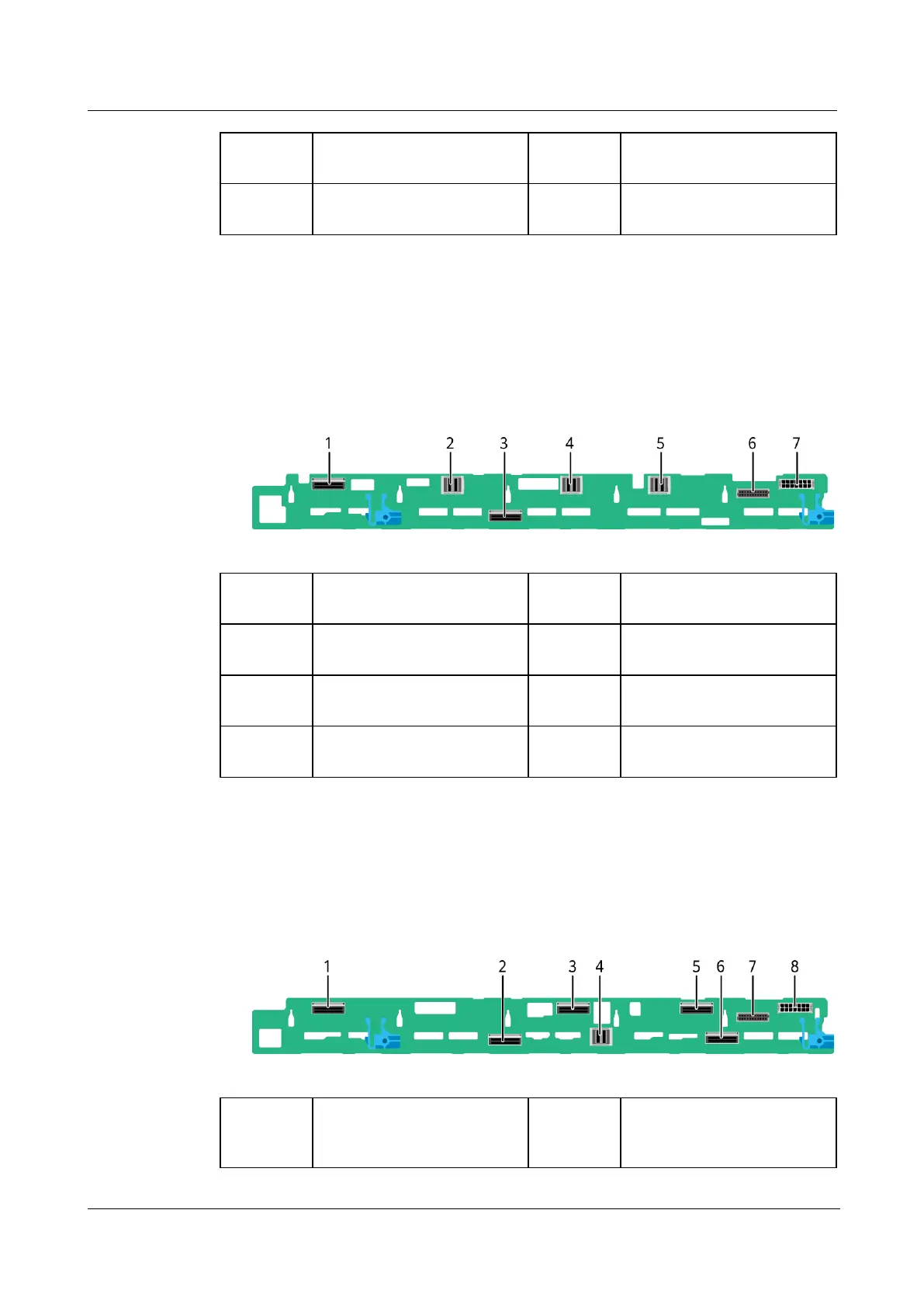

Figure 5-44 10 x 2.5" drive pass-through backplane
1
LP slimline 2 connector
(SLIM A/SLIM2/J12)
2
Mini-SAS HD connector
(PORT C/J15)
3
LP slimline 1 connector
(SLIM B/SLIM1/J11)
4
Mini-SAS HD connector
(PORT B/J14)
5
Mini-SAS HD connector
(PORT A/J13)
6
Backplane signal cable
connector (HDD BP/J1)
7
Backplane power connector
(HDD POWER/J24)
-
-
⚫
10 x 2.5" drive NVMe backplane
Configure this backplane in 10 x 2.5" NVMe drive configuration 1, 10 x 2.5" NVMe
drive configuration 2, and 10 x 2.5" NVMe drive configuration 3 in 5.5.1 Drive
Configurations .
Figure 5-45 10 x 2.5" drive NVMe backplane
1
LP slimline 2 connector
(SLIM A/ SLIM_2/
SLIM_5/J3)
2
LP slimline 1 connector
(SLIM B/
SLIM_1/PORT_2B/J2)
