5.2 Rear Panel
5.2.1 Appearance

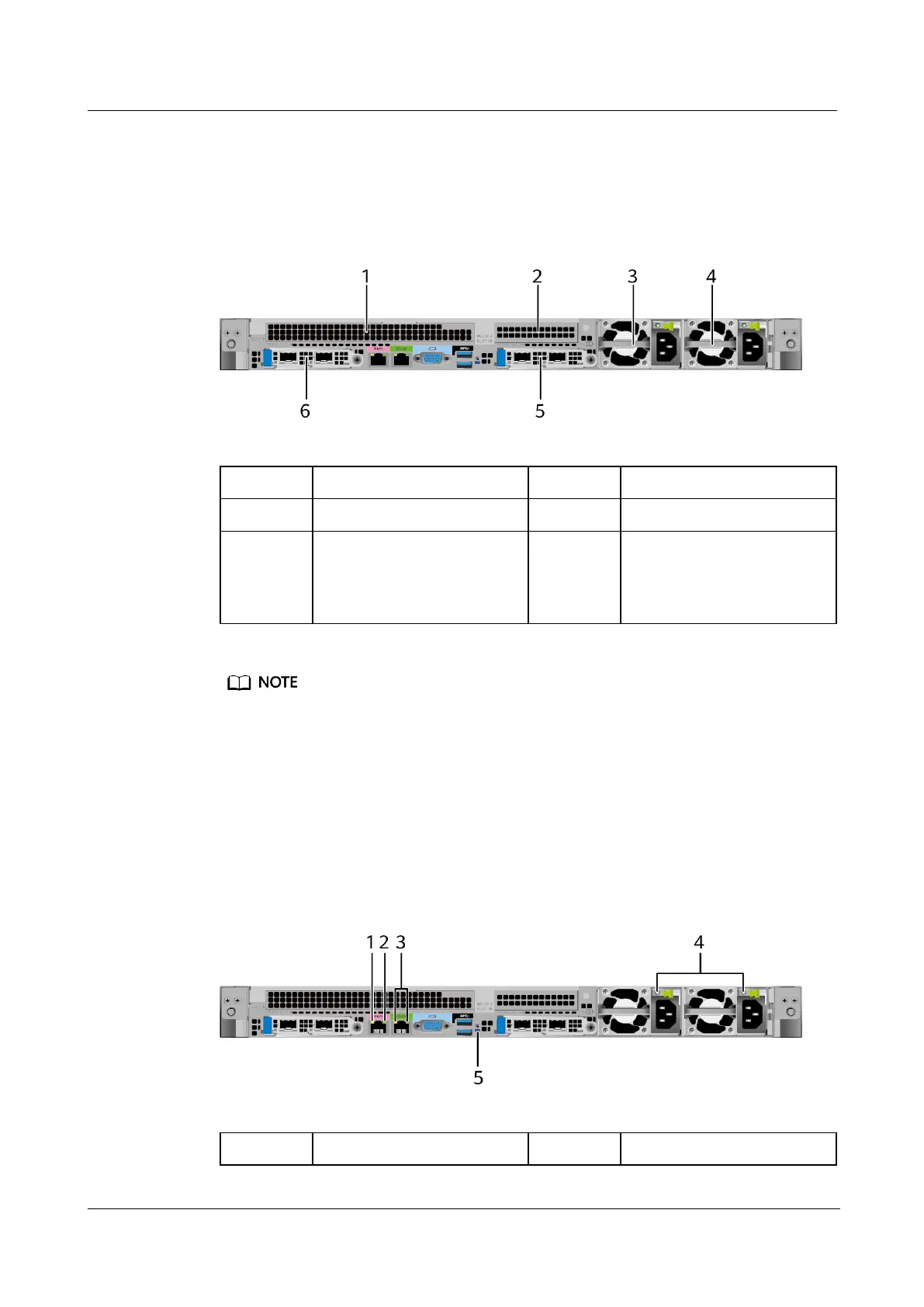

Figure 5-10 Rear view
1
I/O module 1
2
I/O module 2
3
PSU 1
4
Power supply 2
5
(Optional) FlexIO card 2
NOTE
The FlexIO card slot supports
only OCP 3.0 network adapters.
6
(Optional) FlexIO card 1
NOTE
The FlexIO card slot supports
only OCP 3.0 network adapters.
⚫
I/O module 1 supports a PCIe riser module or rear drive module.
⚫
I/O module 2 supports only the PCIe riser module.
⚫
For details about the OCP 3.0 network adapter, see 5.6.1 OCP 3.0 Network Adapter .
⚫
The figure is for reference only. The actual configuration may vary.
5.2.2 Indicators and Buttons
Indicator Positions
Figure 5-11 Indicators on the rear panel
1
Data transmission status
2
Connection status indicator
