5 Hardware Description
2022-06-25
16
⚫

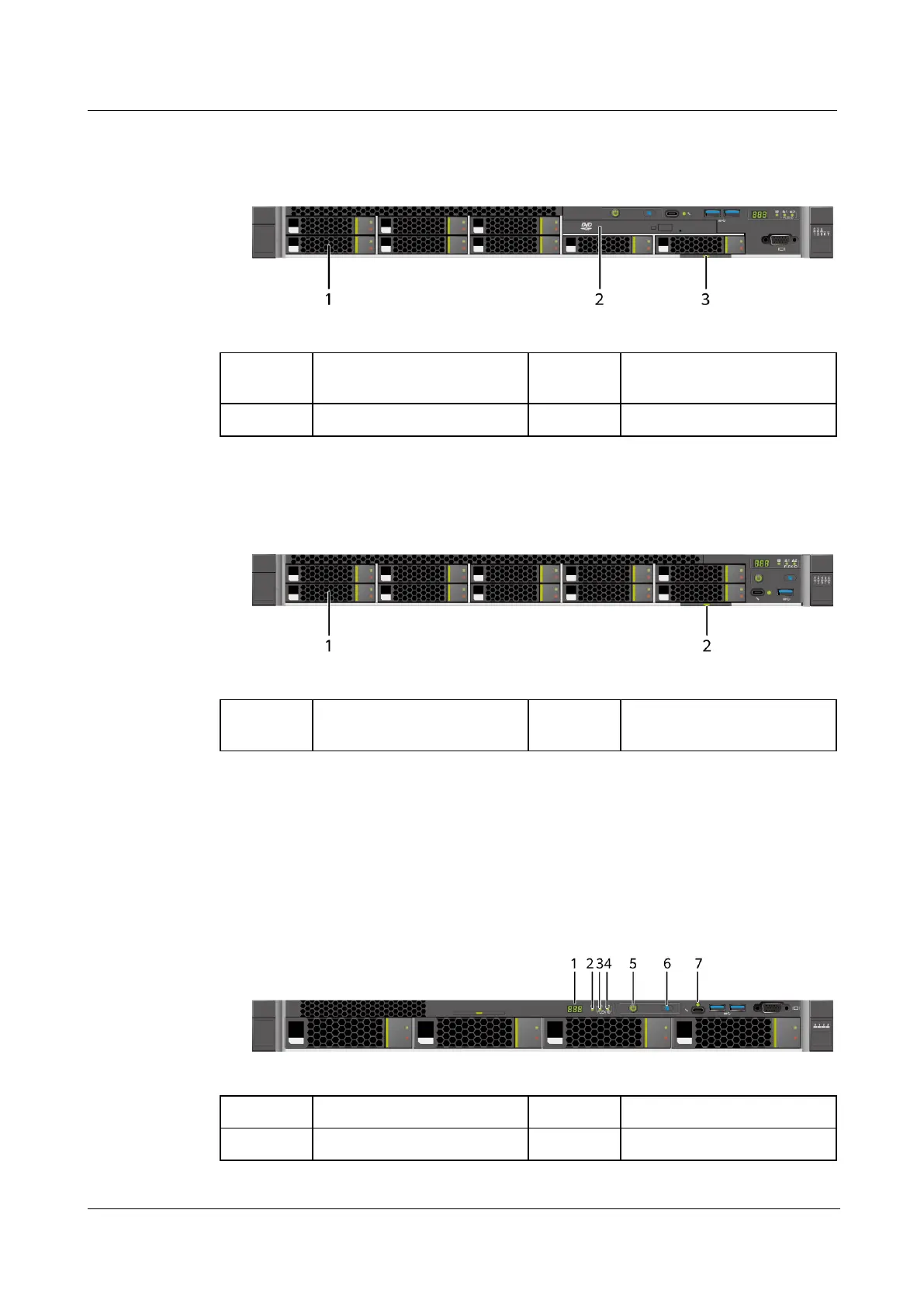

8 x 2.5" Drive Configuration
Figure 5-2 Front view
1
Drive
2
(Optional) Built-in DVD
drive
3
Label with SN
-
-
⚫
10 x 2.5" drive configuration
Figure 5-3 Front view
1
Drive
2
Slide-out label plate (with an
SN label)
5.1.2 Indicators and Buttons
Indicator and Button Positions
⚫
4 x 3.5" drive configuration
Figure 5-4 Indicators and buttons on the front panel
1
Fault diagnosis LED
2
Health status indicator
3
FlexIO card 1 presence
4
FlexIO card 2 presence
