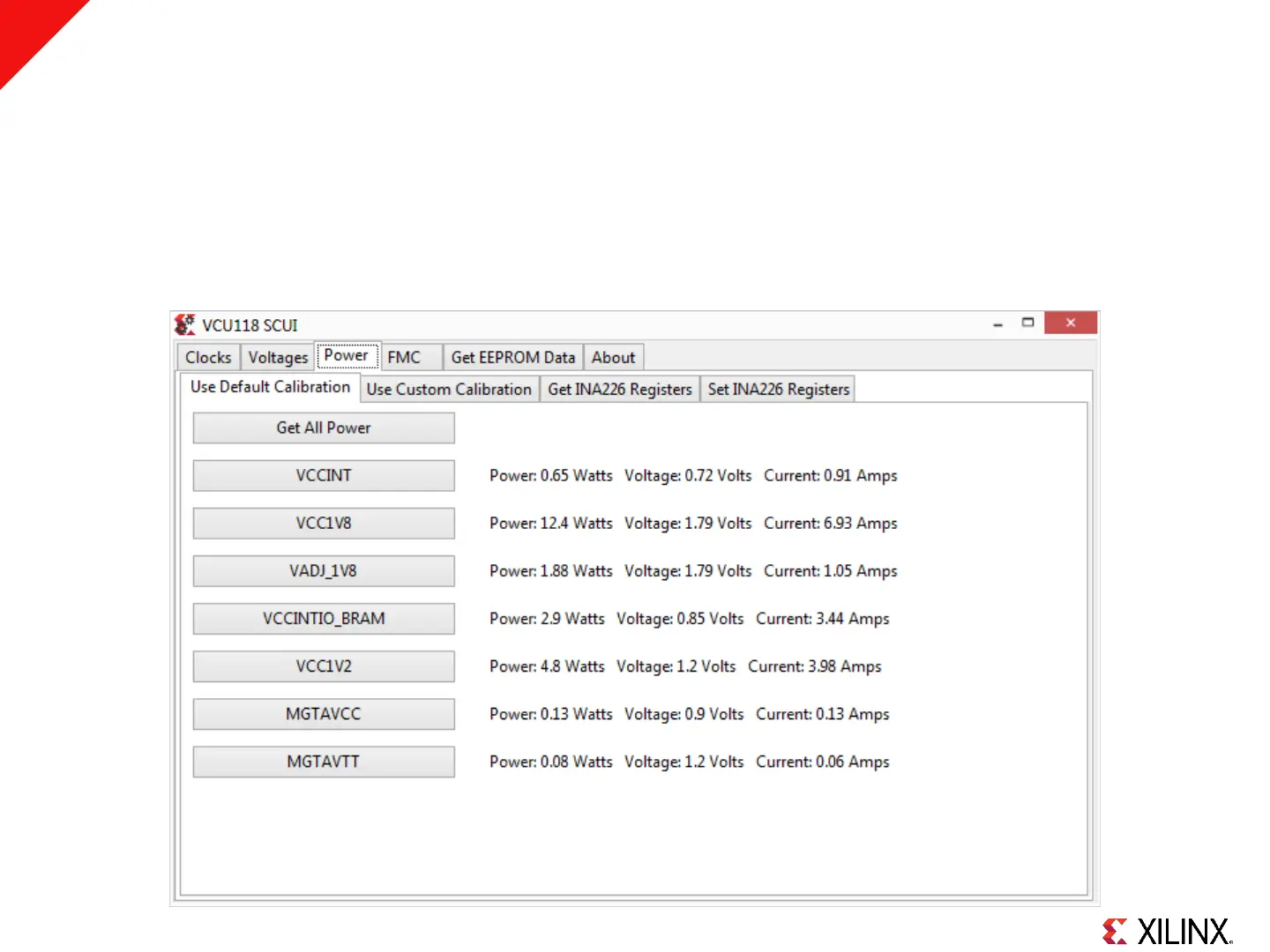

Reading power values using default calibration

˃ Select the Use Default Calibration tab underneath Power

˃ Click the Get All Power button

˃ Observe the VCU118 PS power readings

Note: Presentation applies to the VCU118
