Setting the clocks

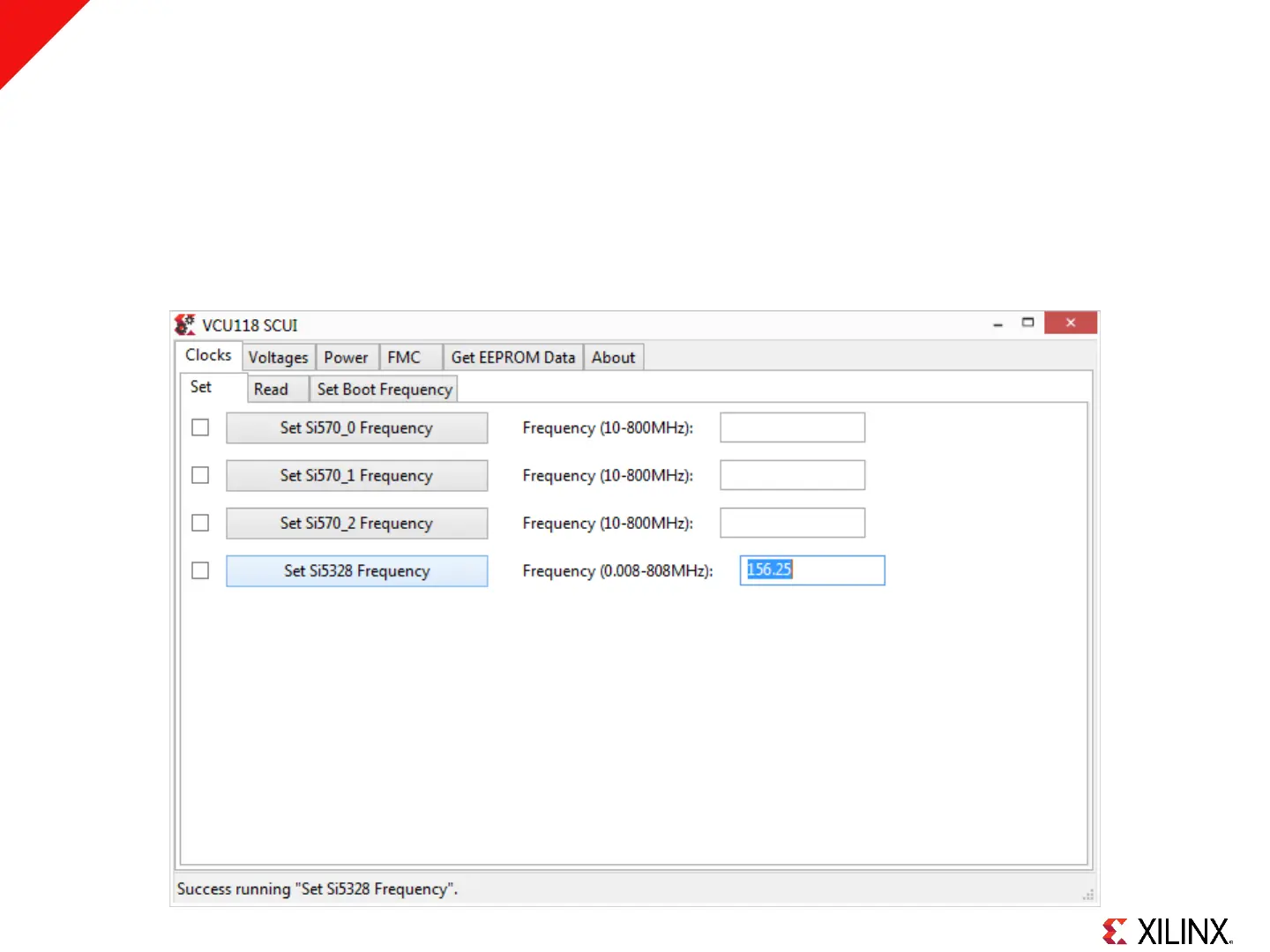

˃ Select the Set tab underneath the Clocks tab

˃ Enter 156.25 for the Si5328 and click the Set Si5328 Frequency button

Note: Presentation applies to the VCU118
