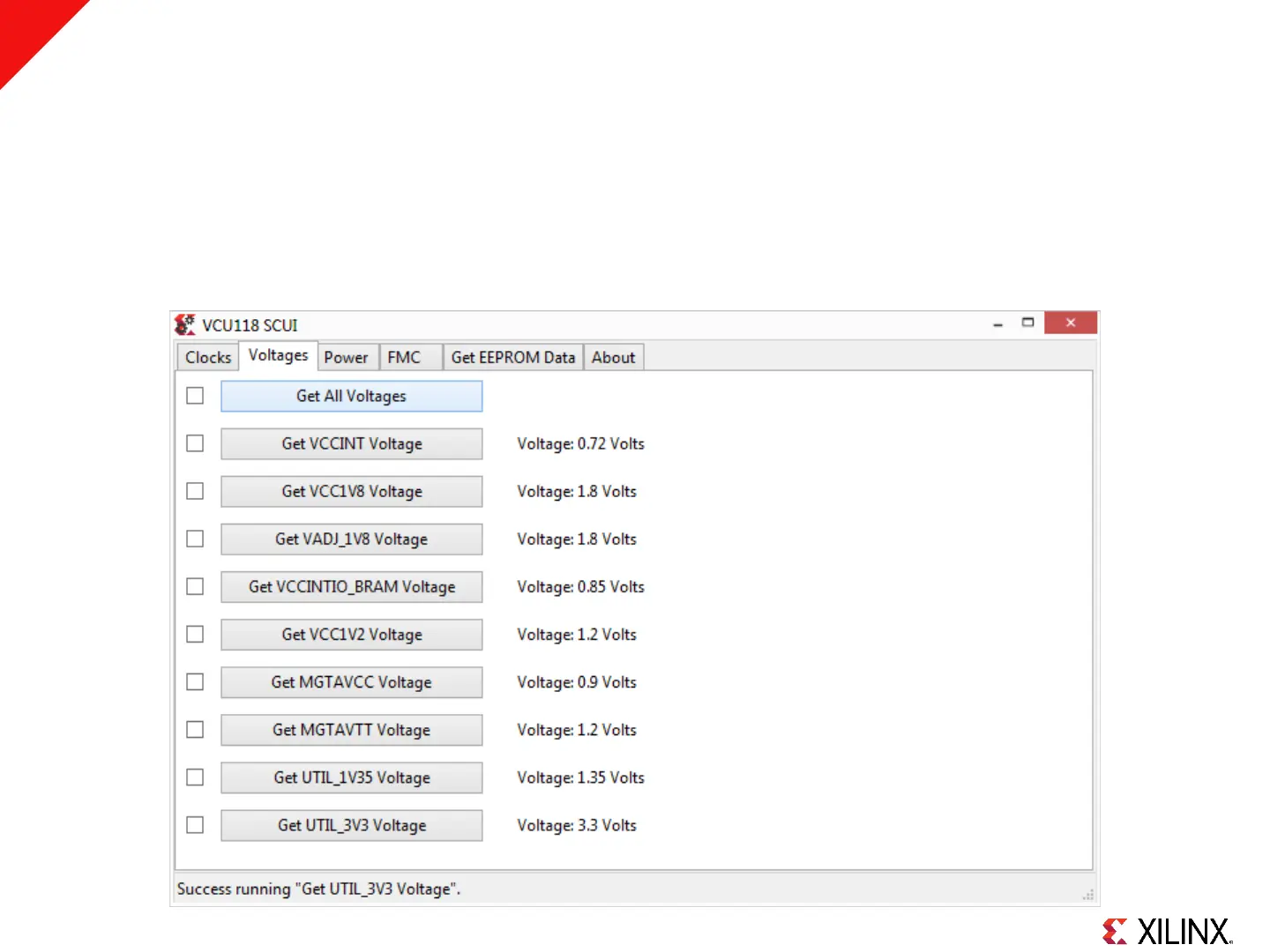

Reading onboard VCU118 voltages

˃ Select the Voltages tab

˃ Click the Get All Voltages button to view a voltage

˃ Observe the VCU118 voltages

Note: Presentation applies to the VCU118
