Set VADJ

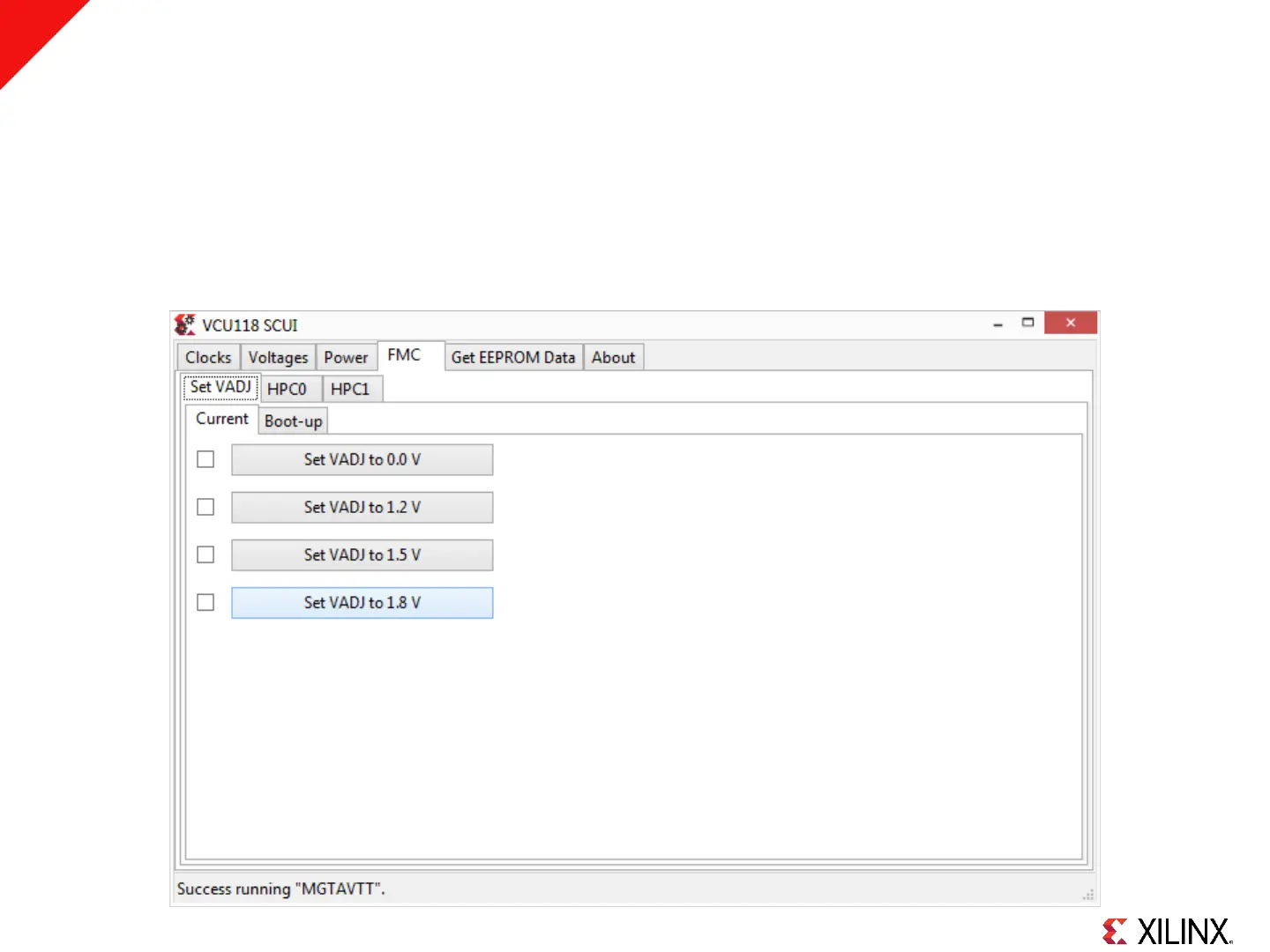

˃ Select the Set VADJ tab underneath the FMC tab

˃ Under the Current tab, select the desired VADJ voltage

˃ Some BIT tests expect 1.8 V

Note: Presentation applies to the VCU118
